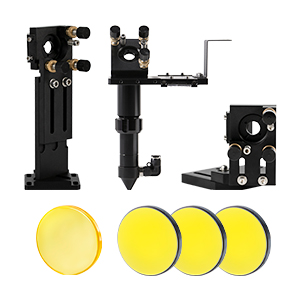

Cloudray C Series CO2 Head Set with 1 PCS USA CVD Focus Lens D20mm FL63.5mm and 3 PCS Si Mirrors D25mm (Set A)
- 7 PCS in 1 Set: complete parts for co2 cutter head installation and DIY.
- Application: replacement parts for co2 engraving and cutting machine.
- C Series head and 2 kinds of mirror mounts are made of aluminium material with black oxide coating
- Integrative Fixture C Series Head With Air Assist Nozzle, Concentric Ring Locking Lens Tube Precise Optical Path
- Package: 1set C Series Head Set & 1pcs USA ZnSe FocusingLens(D20mm FL63.5)& 3pcs Si Mirrors (D25mm)
Quantity
-
Detail

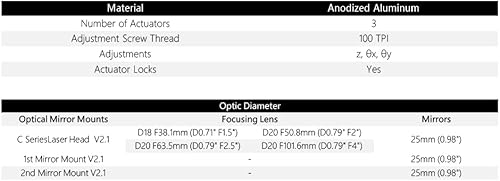

Parameter
- Number of actuators: 3
- Adjustment screw thread: 100 TPI
- Adjustments : z, θx, θy
- Actuator Locks : Yes
- Mirror Diameter：25mm Lens
- Used for Lens : Diameter18mm (Nozzle) FL 38.1(Nozzle)
- Used for Lens : Diameter20mm FL 50.8/63.5/101.6mm
Features
Set A
- Aluminum Material With Black Oxide Coating
- Adjustable lnstallation Hole Of Mirror Mounts
- Integrative Fixture Laser Head With Air Assist Nozzle
Package List
- 1 pcs C Series Head
- 1 pcs 1st Mirror Mount
- 1 pcs 2nd Mirror Mount
- 1 pcs USA CVD ZnSe Focus Lens(D20 FL63.5)
- 3 pcs Si Mirror(D25)

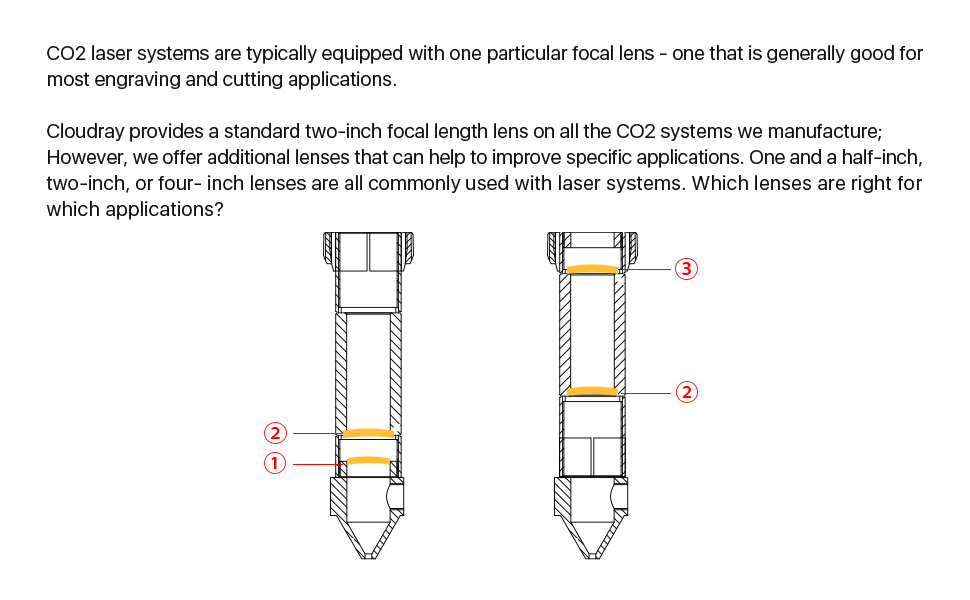

Various Focal Length Adaptation
1.5-inch lens
- Optional lens for high resolution engraving.
- Recommended for raster engraving above 600 DPI resolutions.
- Recommended for small font or fine detail engraving.
- Produces spot size of 0.003 to 0.0065 inches in diameter.
- Good cutting lens for thin (less than 1/16 inch) material.
2-inch/2.5-inch lens
- Standard lens on most laser systems.
- Multipurpose for both engraving and cutting applications.
- Recommended for raster engraving from 300 DPI to 600 DPI resolutions.
- Produces spot size of 0.004 to 0.007 inches in diameter.
4-inch lens
- Produces focused beam over longer vertical distance
- Specialty lens typically used for engraving within recessed area (bowl or plate).
- Used for cutting thick materials.

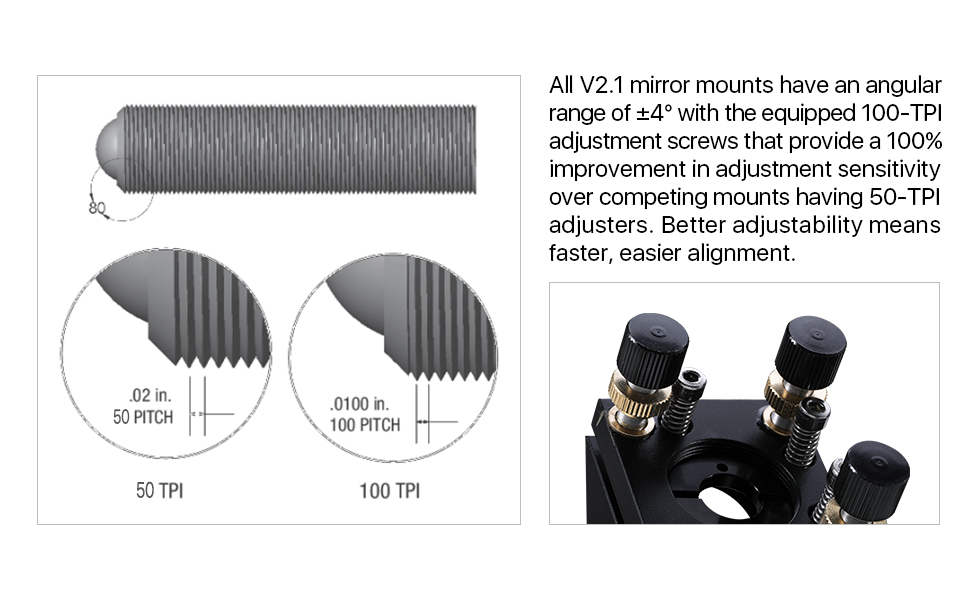

Superior Adjustability

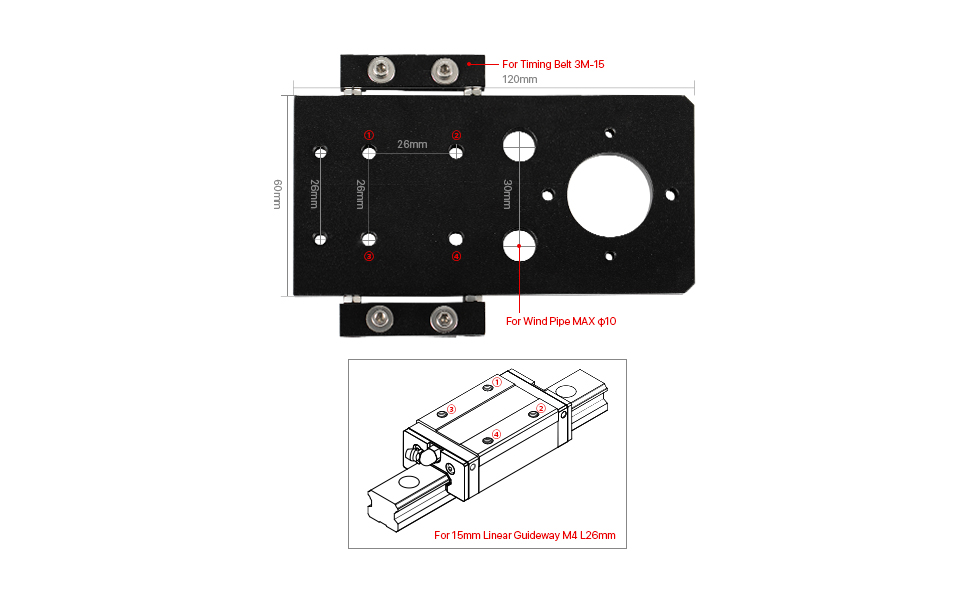

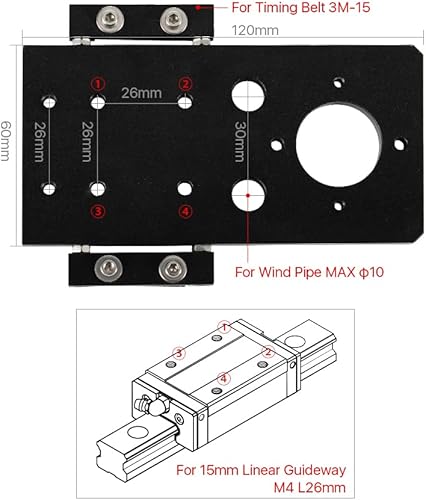

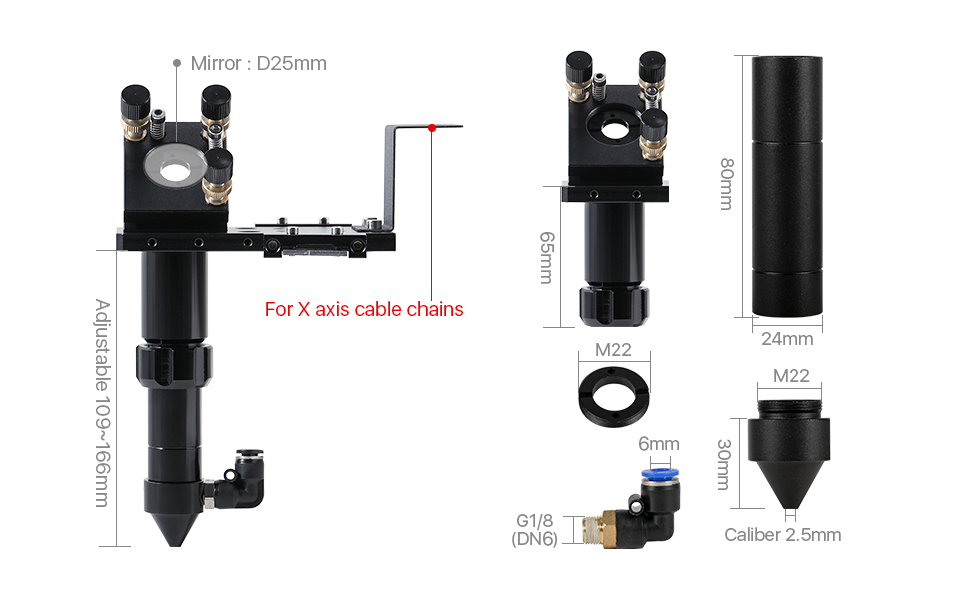

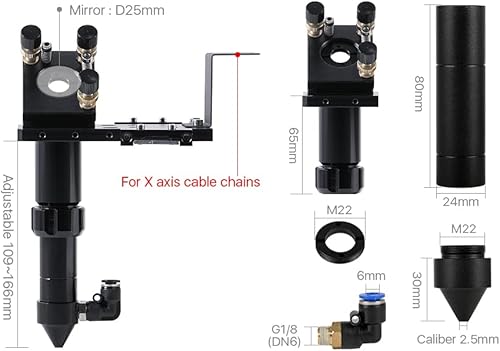

CO2 Laser Head

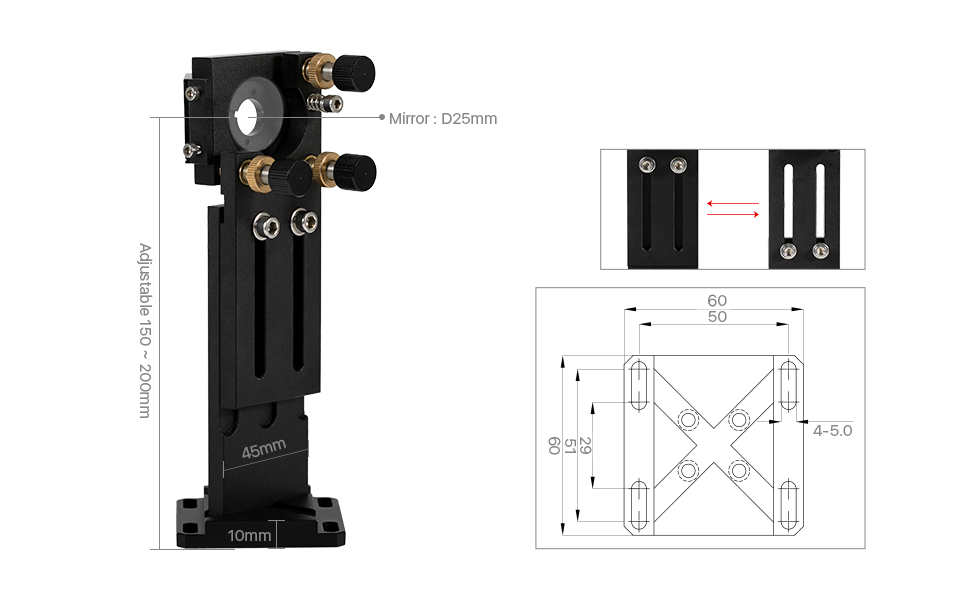

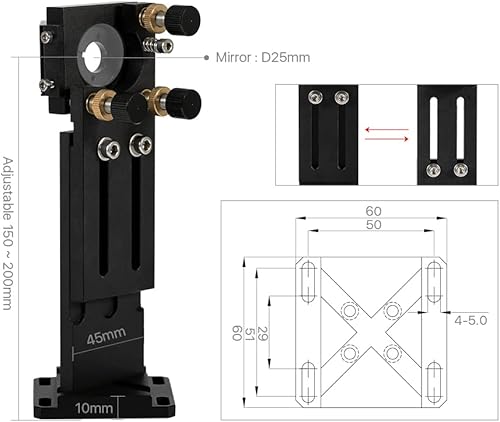

1st Mirror Mount

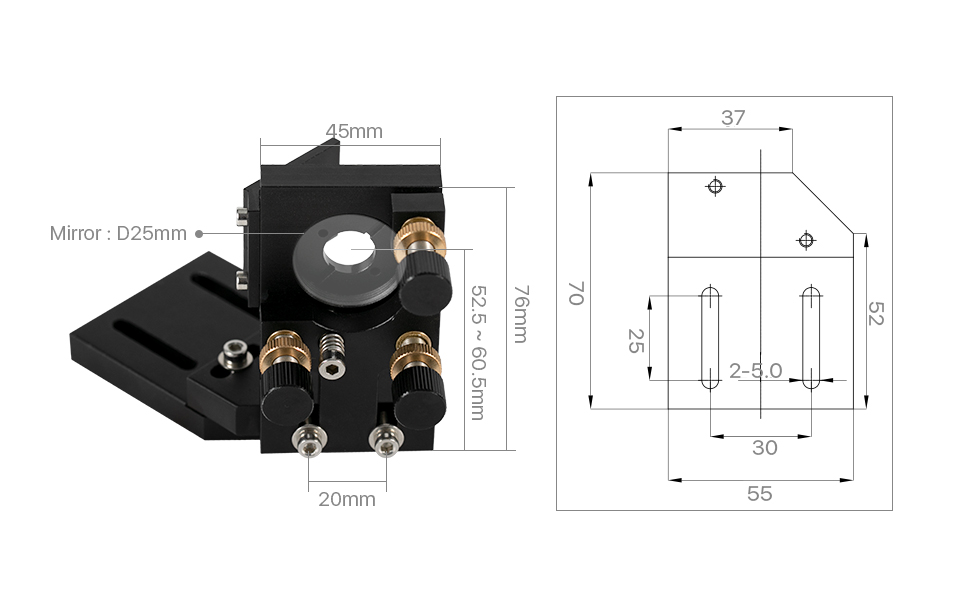

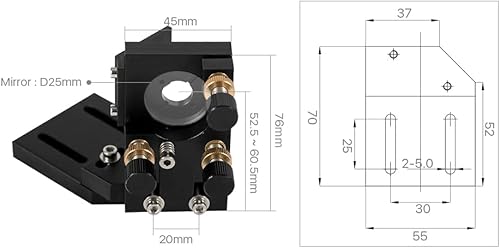

2nd Mirror Mount
-
