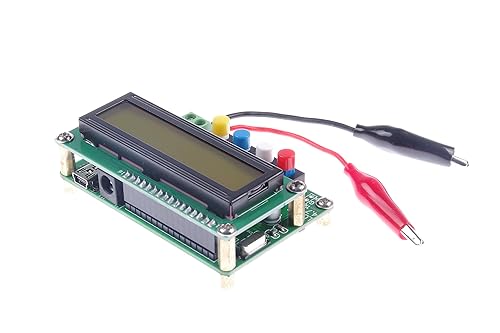

LC100-A LC-100A Digital LCD High Precision Inductance Capacitance L C Meter Accuracy 1%

Based on the L/C resonance principle
High speed microcontroller’s precision computation
Measuring range below 1uH and1pF
Especially qualify in microwave manufacture and measuring switching power supply transformer , filter inductance and soon.

LC100-A has four measuring range position:
1.C range........Capacitance(0.01pF-10uF)
2.L range........Inductance(0.001uH-100mH)
3.Hi.L range......Big inductance(0.001mH-100H)
4.Hi.C range......Big capacitance range(1uF-100mF)

Technique data：
Capacitance Accuracy：
0.01pF-1pF: 5%
1pF-1uF:1%
1uF-10uF: 5%
Min Capacitance Resolution（C Files）: 0.01pF
Inductance Accuracy:
0.001uH-1uH :5%
1uH-100mH :1%
Min Inductance Resolution（L Files）: 0.001uH
Big Inductance Accuracy:
100mH-1H 1%;
1H-100H 5%;
Min Resolution of Big Inductance （HL Files）:0.001mH
Big Capacitance Accuracy :1uF-100mF-5%
Min Resolution of Big Capacitance （HC Files）: 0.01uF
Frequency:
L Files、C Files: Abt.500kHz
HL Files: Abt.500Hz
Measuring mode:LC Resonance
Display mode :1602 LCD
Displaydigit : 4
Interface: Mini USB& Φ5.5DC Socket
Supply Voltage: 5V

Package Included:
1*LC100-A Digital L/C Meter Inductance Capacitance Meter
1*Mini USB Cable
1*LC100-A Users Manual
