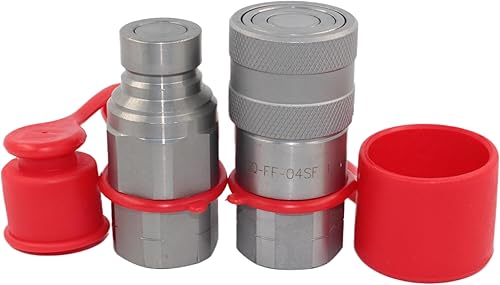

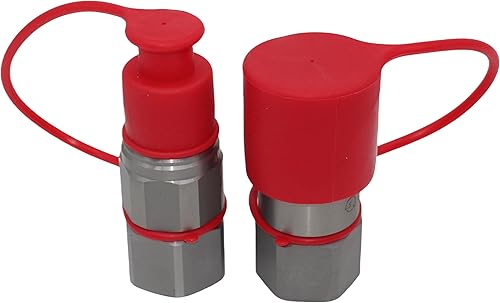

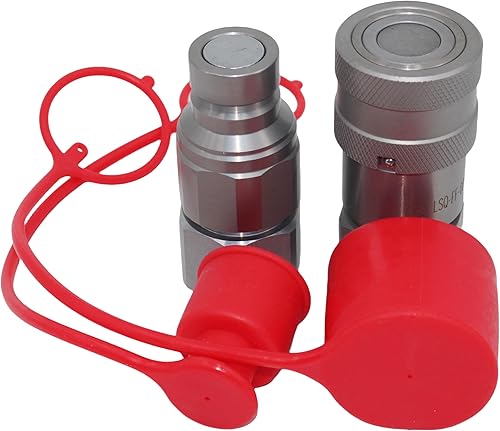

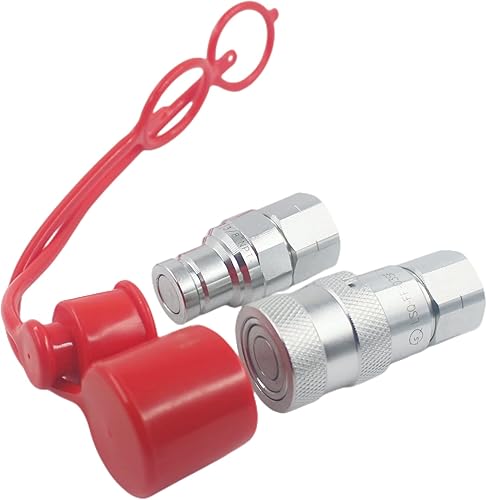

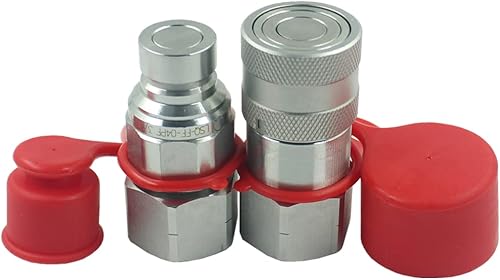

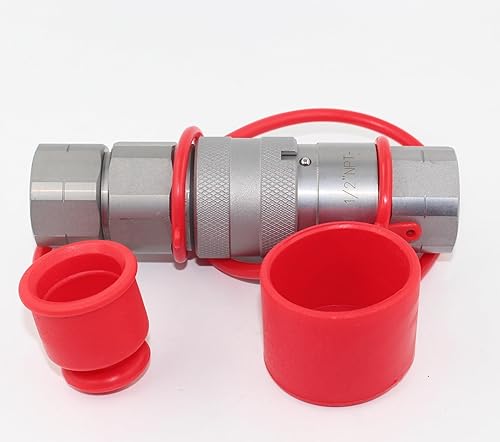

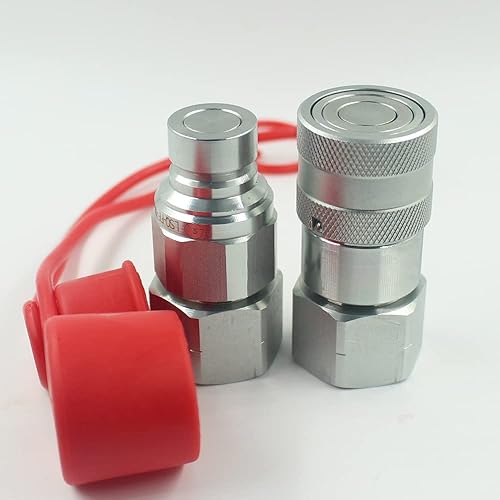

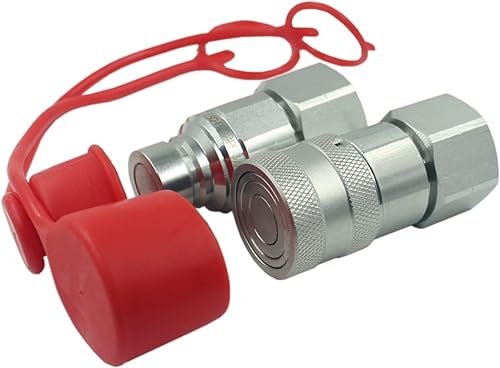

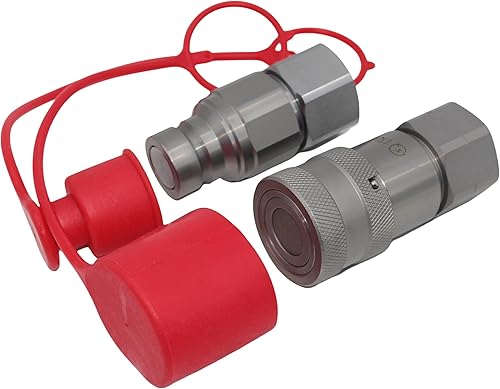

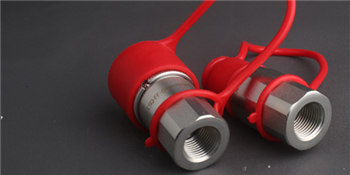

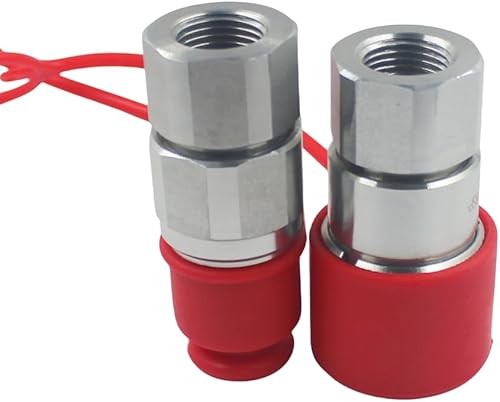

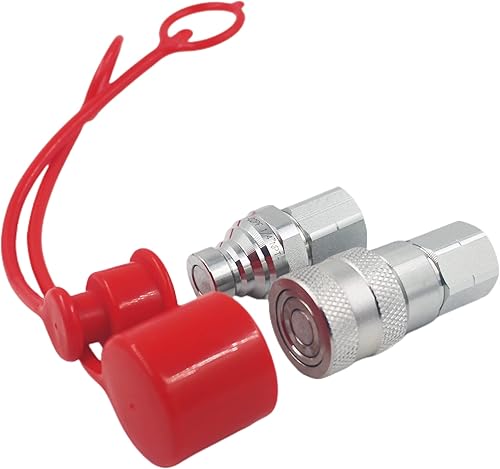

1/2'' NPT Flat Face Hydraulic Quick Connect Coupling Set Skid Steer Loader Quick Disconnect Coupler with Dust Caps ISO12.5

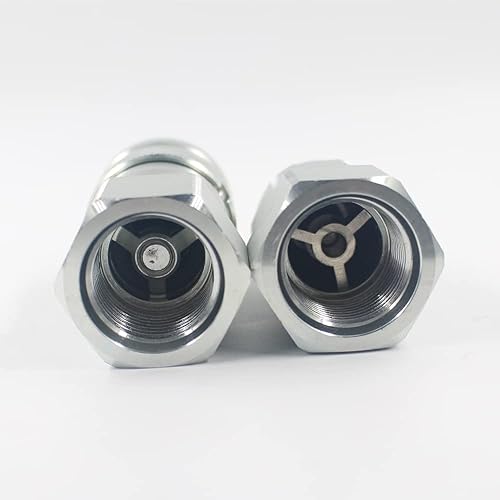

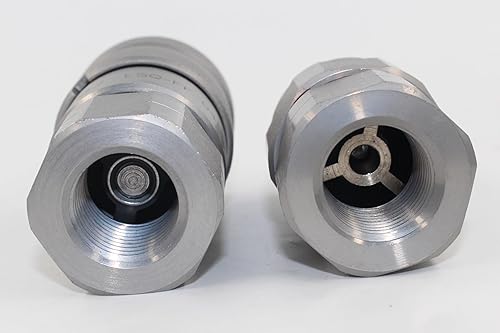

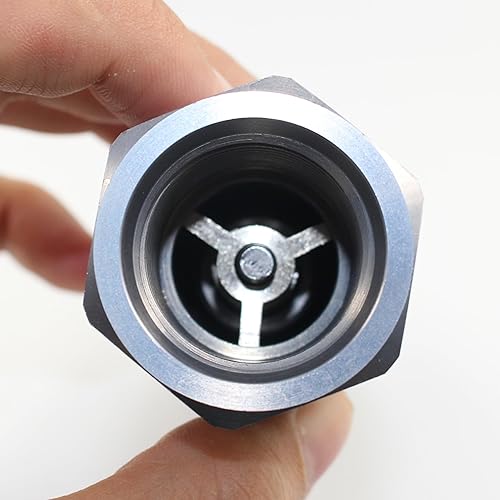

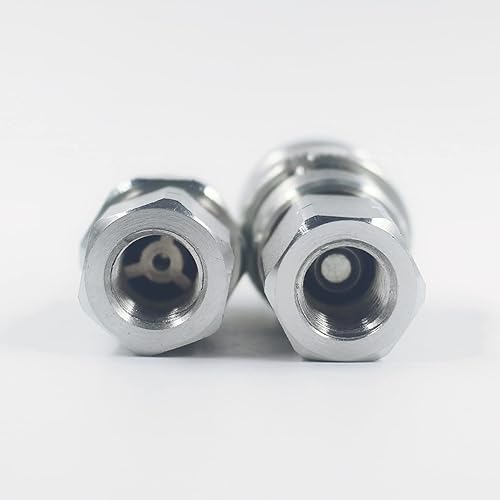

- ISO16028 Standard, New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance

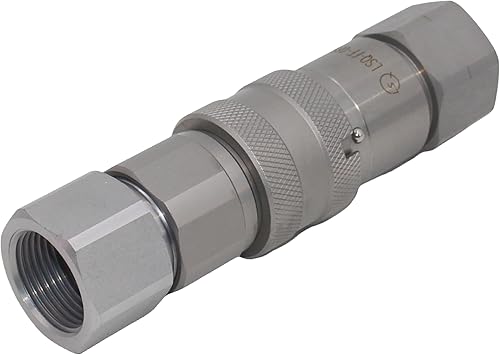

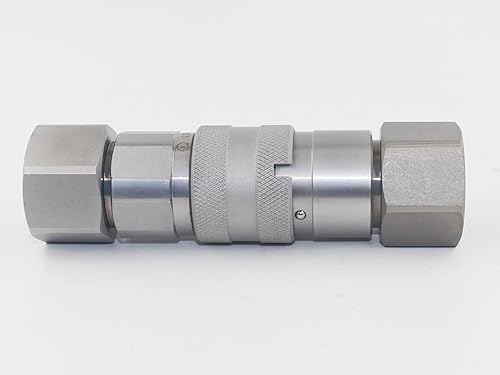

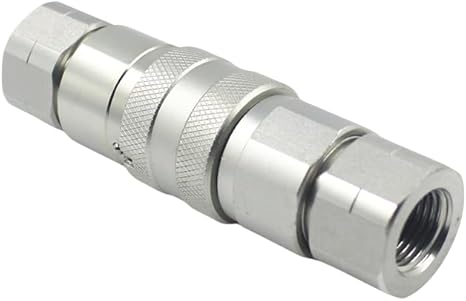

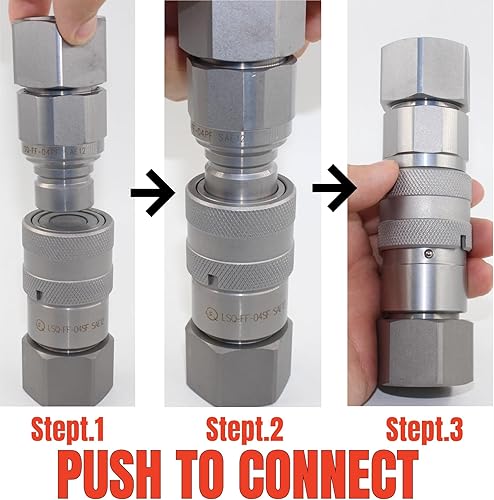

- Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground
- Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life.
- Steel construction, zinc plated finished and hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock. This Anti -Blowout Nitrile/PTFE bonded seal is designed to prevent blow-out or damage during severe service conditions.
- Compatible with PARKER FEM Series, STUCCHI FIRG Series, AEROQUIP FD89 Series and HANSEN FF Series
- Fit All Couplers with Standard ISO16028 ISO12.5 Body Size
Quantity
-
Detail
SAFETY GUIDE FOR USING QUICK COUPLERS
- Please DO NOT for using the fluid other than the applicable fluid, the fluid must be filtered.
- Please use under rated pressure and Temperature
- Please DO NOT hit, bending, stretching, to prevent the damage.
- Please DO NOT exposure the environment that contain the sand or metal dust, to prevent premature failure or leakage
- Please DO NOT over bend the hose at the end of the quick couplers
- Use for vibration, shock machines, will reduce the durable of quick couplers
1/2'' NPT Flat Face Hydraulic Quick Connect Coupling Set Skid Steer Loader Quick Disconnect Coupler with Dust Caps ISO12.5
Features
- Body Size(in)：1/2'' Body Size ISO12.5

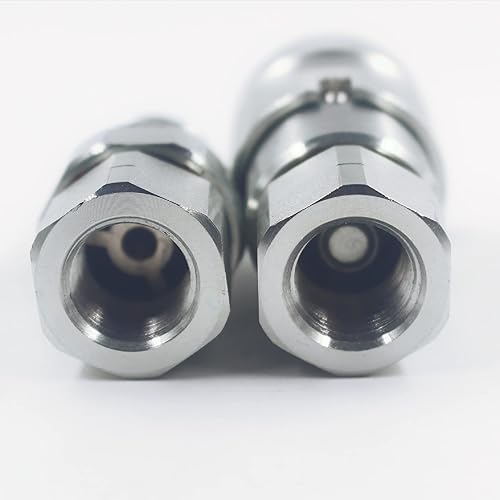

- Thread Size: 1/2'' NPT Female
- Rated Pressure(PSI): 5000 PSI
- Rated Flow(GPM): 12 GPM
- Standard Seal Material: NBR
- Temperature Range: -20℉ to 245℉
- Interchange with Other Quick Coupler Made to ISO16028 Standard
- Sleeve locking prevents accidental disconnection
- +3 chrome plating treatment provides advanced anti-rust performance
- Harden steel reduce damage from hydraulic and mechanical shock.
- Anti –Blowout Nitrile/PTFE bonded seal

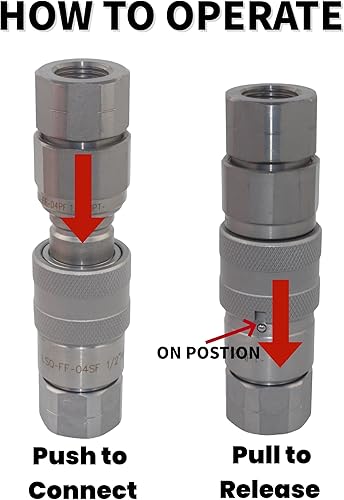

- Valve design allows single hand operation
Applications
Flat Face Hydraulic Couplers are widely used in in the public utility market, construction machinery like skid steer ect...

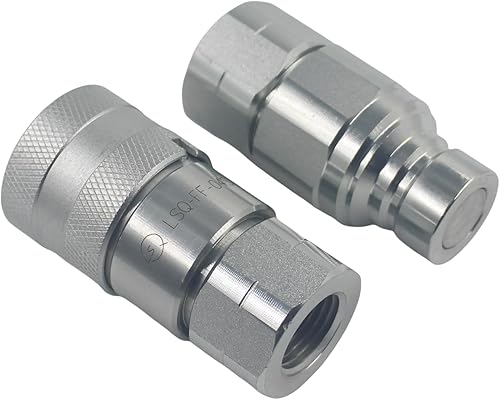

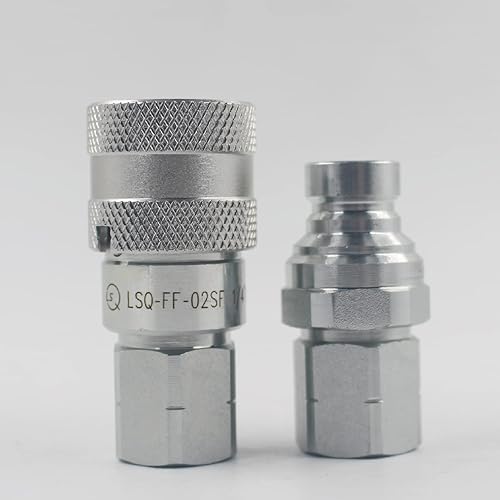

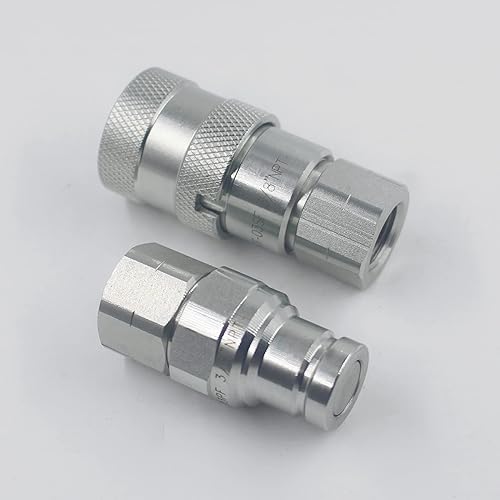

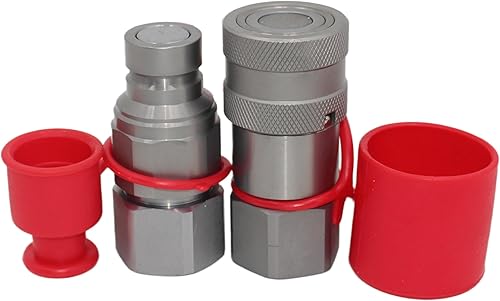

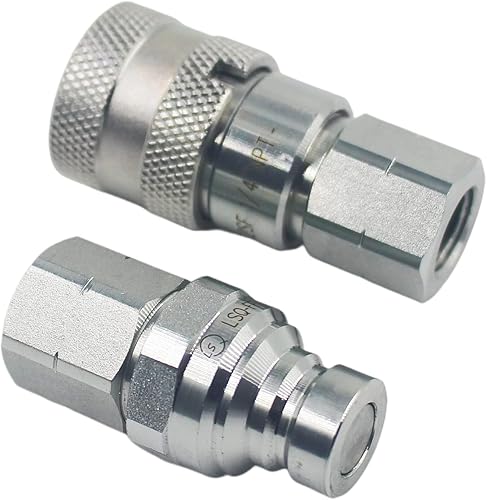

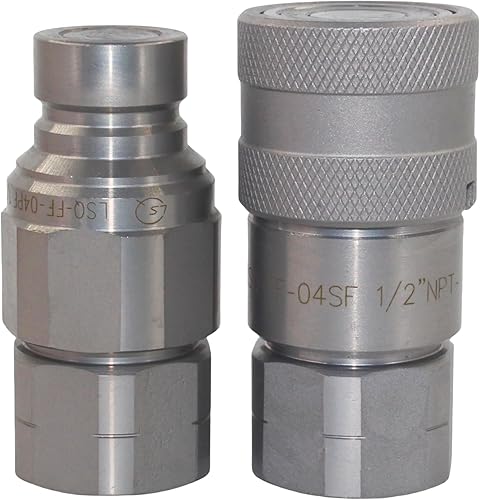

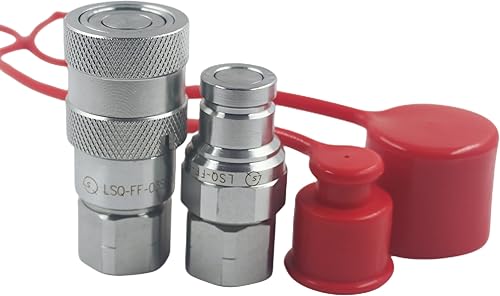

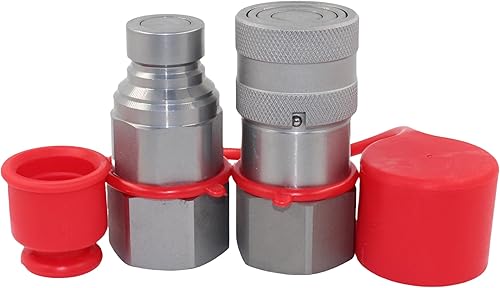

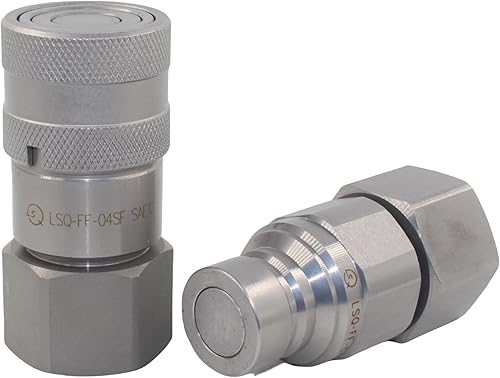

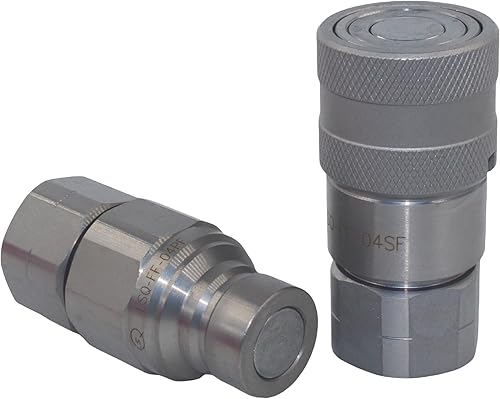

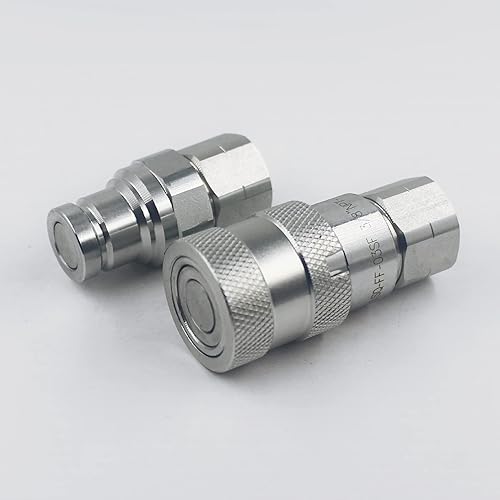

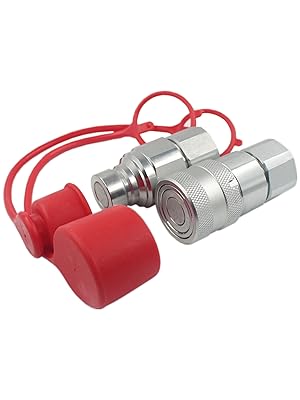

Flat Face Hydraulic Coupler Set

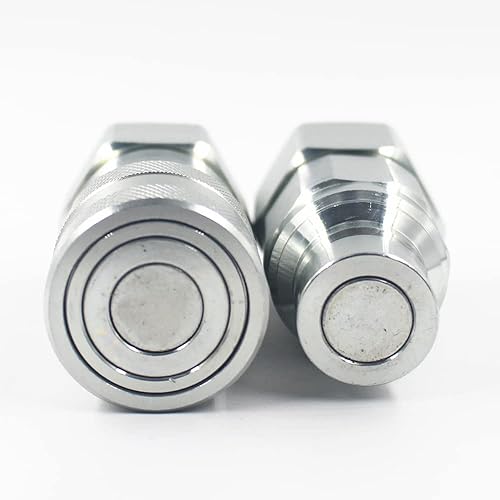

Set Flat Face Hydraulic Coupler Include Male Coupler and Female Coupler

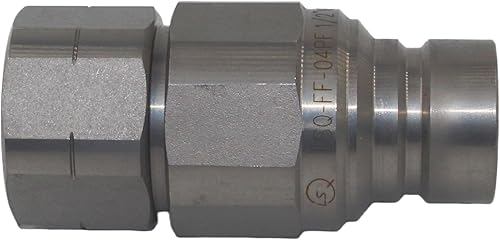

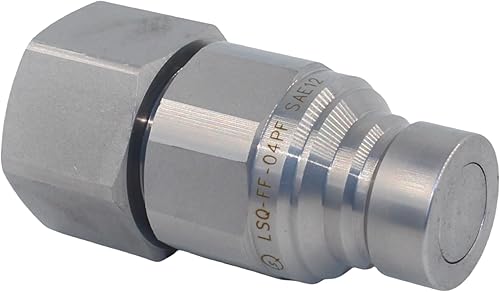

Male Coupler
Steel construction, zinc plated finished and hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock

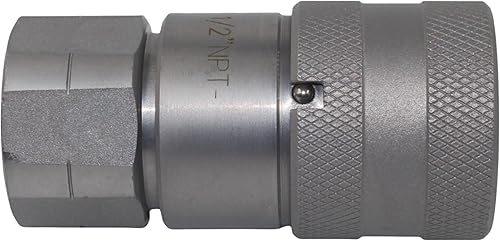

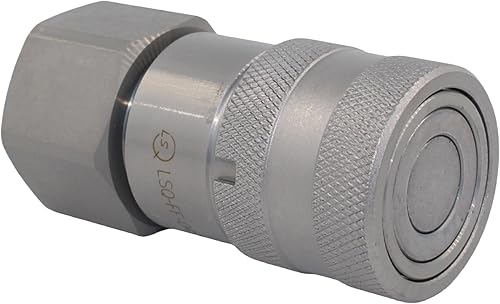

Female Coupler

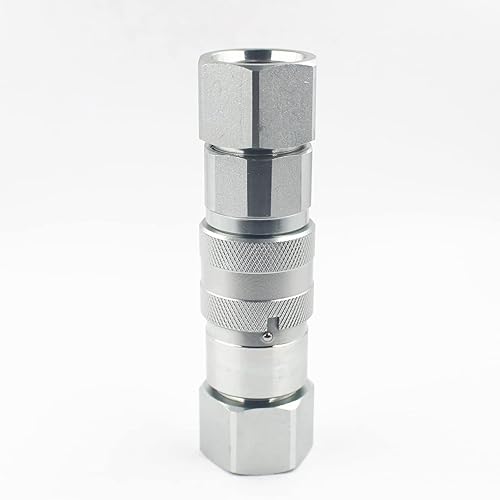

Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground
-
