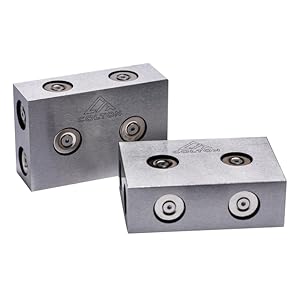

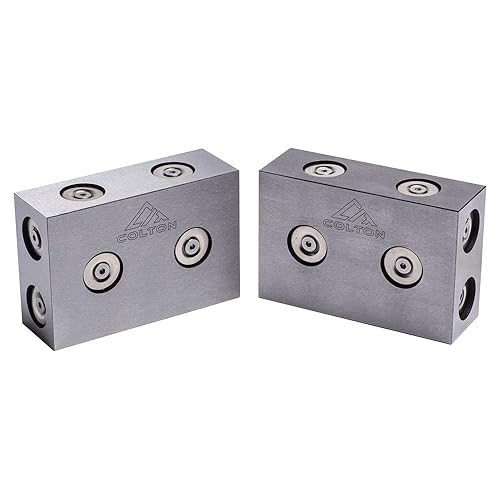

10075 | Magnetic 123 Blocks Ultra Precision Matched Set

  • Dimensions: 1.000" x 2.000" x 3.000"
  • Squareness: +/- 0.0002" all sides
  • Magnetic Rating: 35 lbs. pull away on 1" steel (magnet strength will vary depending on the thickness of material it is adhering to)
  • Material: 50 HRC Hardened Steel
  • Set contains (1) pair of magnetic 123 blocks

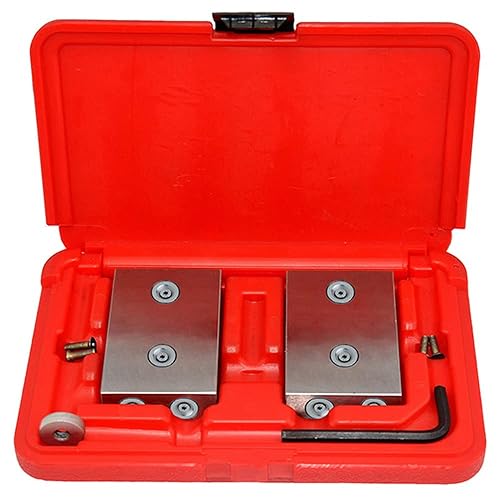

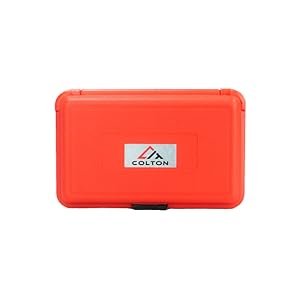

  • Set also includes: (4) additional magnets. (4) spare set screws, (1) hex key, (1) molded case
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Colton Industrial - Measuring and Inspecting
    About Colton Industrial Tools

    Magnetic 1-2-3 Blocks, Ultra Precision Matched Set

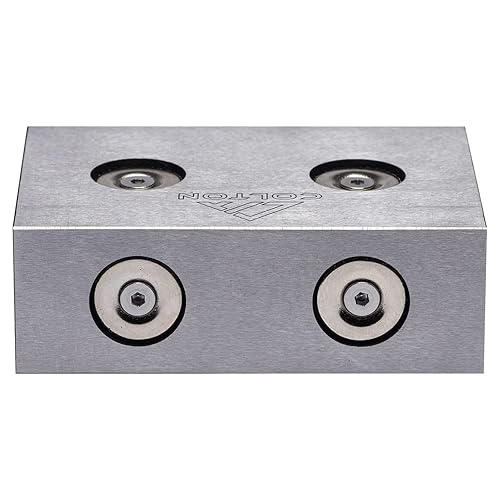

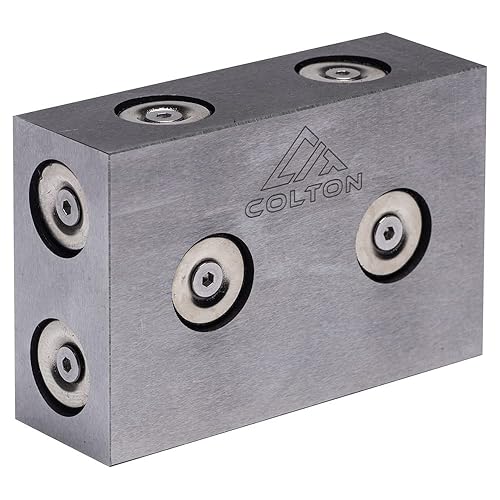

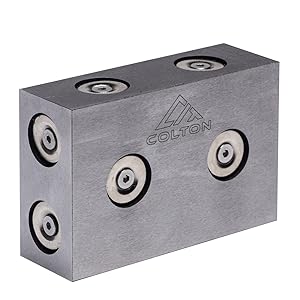

    1-2-3 Blocks are a common shop set up thanks to their versatility. Machinists, woodworkers, metalworkers, welders, and other makers have myriad uses for 1-2-3 blocks as they can work both as a support and gauge simultaneously. 1-2-3 blocks can be used to calibrate equipment, space your jobs, collect measurements, or support your work. Colton Tools has taken the 1-2-3 blocks to another level with their magnetic version. Each of the 3 different faces has two powerful rare-earth magnets that are inset, keeping the face of the blocks flush. These magnets increase the speed of setup and the versatility of standard 1-2-3 blocks. The rare-earth magnets have a pull away force of 35 pounds on 1" steel and this Colton Tools set includes four extra magnets, four set screws, a case, and a hex key. Another example of how Colton Industrial Tools is “Helping Makers Make Better."
