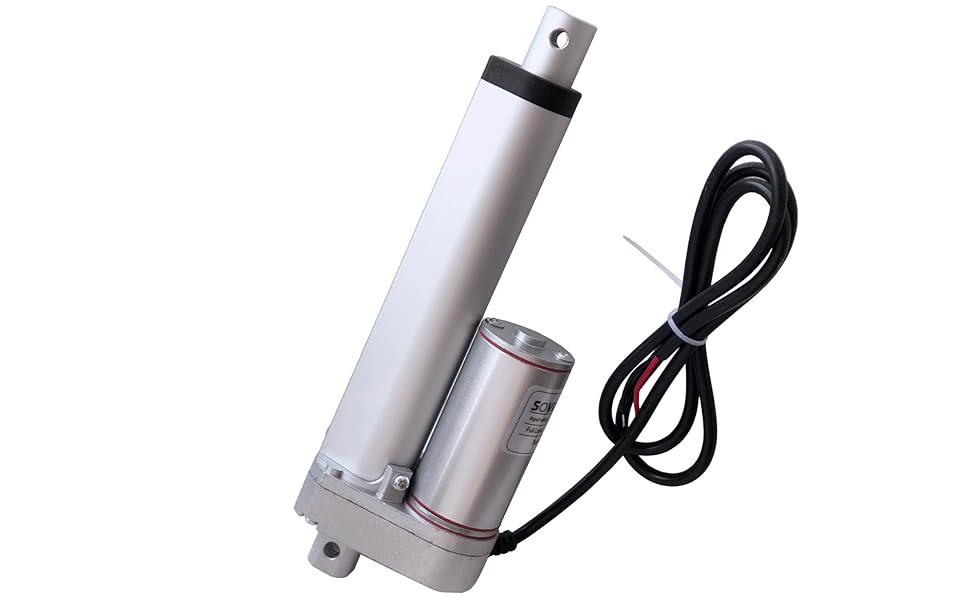

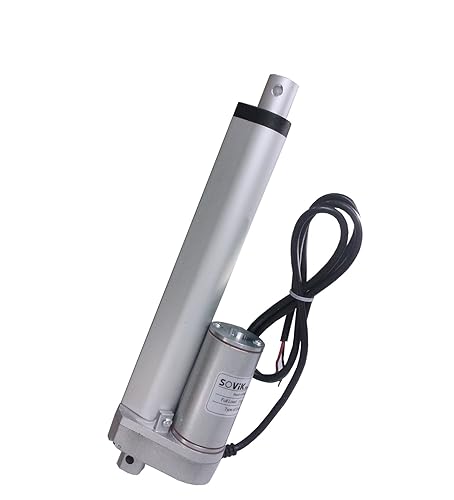

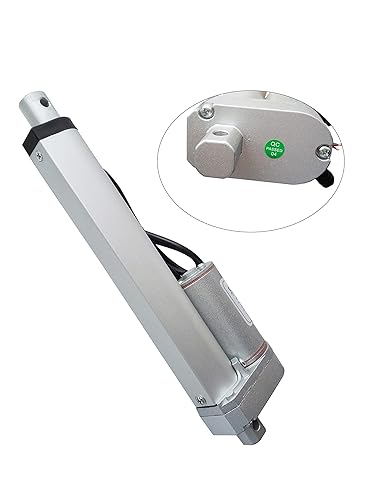

12V DC 6 inch 150mm Stroke Linear Actuator Heavy Duty 750N 165lbs Maximum Lift

SOViK 2" 4" 6" 12" 14" Stroke 12V DC Linear Actuator Heavy Duty 165lbs Maximum Lift

Specification

• Input Voltage: 12 DC
• Stroke Length: 2 inch, 4 inch, 6 inch, 12 inch, 14 inch
• Maximum Load: 165lbs/ 750N
• Maximum self-locking force: 2300N / 507lbs
• Mounting Holes: 6mm diameter
• No Load Speed: 0.39 inch / 10mm per second
• Operating temperature range: -20 to +65 degree Celsius
• Material: Aluminum alloy

Suggestion

1. As we know, the heavy load is always with the slow speed. Actually, if you don't need a lot of load, you can select a lighter but faster item.
2. Protection class IP54 is not completely waterproof, but for limited dust and limited water spray ingress. Please pay attention to waterproof when using.

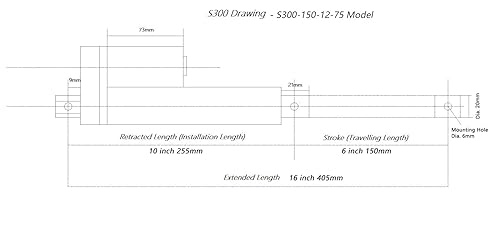

3. Please pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS. To avoid order a wrong size.

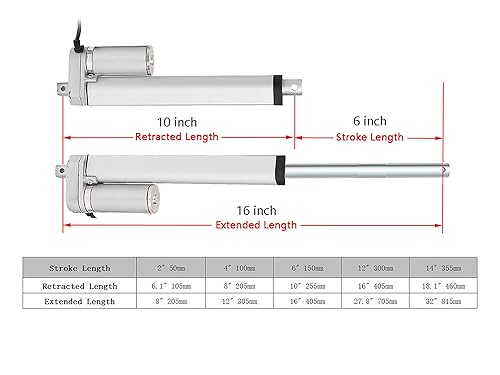

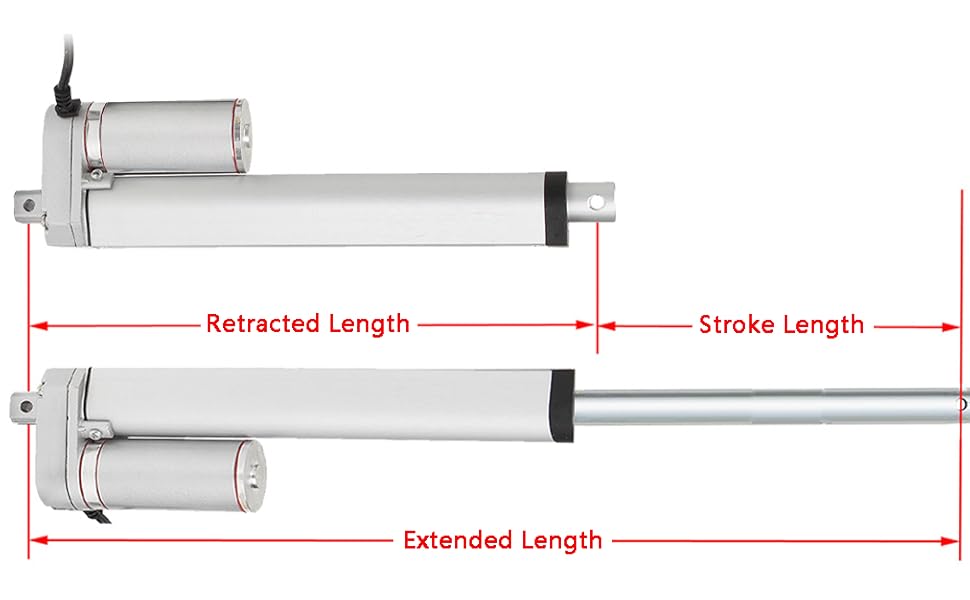

What's the stroke length, retracted length and extended length?

• How to install

1. Prepare to connect the two wires of the actuator to a 12 volt battery
2. Red wire to the positive terminal and black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3. To simplify the last step, you can prepare a reverse polarity relay or switch for the actuator. When you want the actuator to extend and retract, just press the switch.
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5. The actuator has pre-installed inner limit switch, it cannot be adjustable.

• How to protect your actuator

1. ​Please use the 12V DC power adapter
2. The actual load does not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof

• What you will get

1. ​1pc SOViK Heavy Duty Linear Actuator
2. Professional after-sale service
