6' 24' 2 Axis Digital Readout DRO Display 5um Precision Linear Scale Encoder 150mm 600mm for CNC Wire Milling Cutting Machine

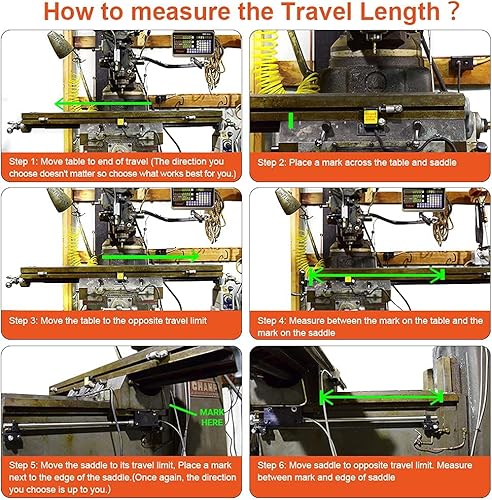

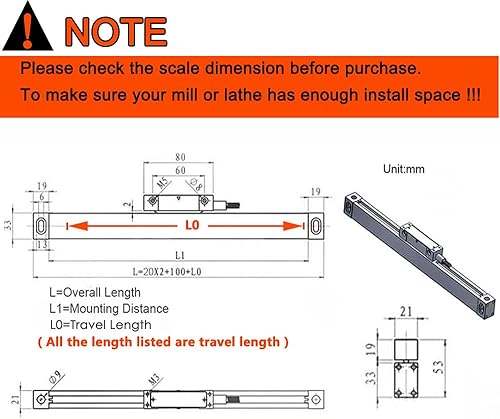

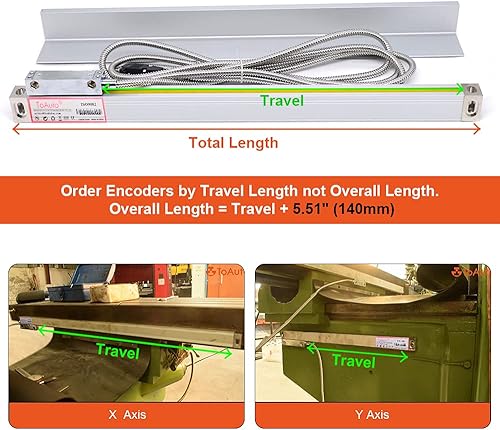

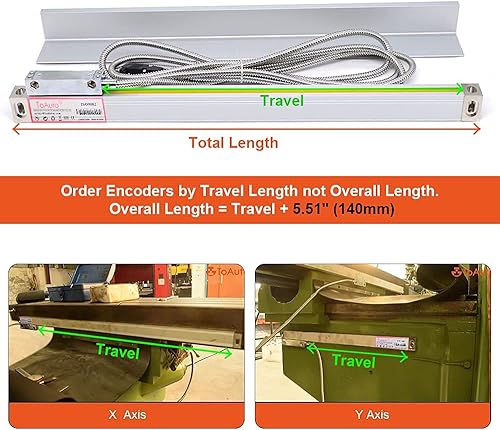

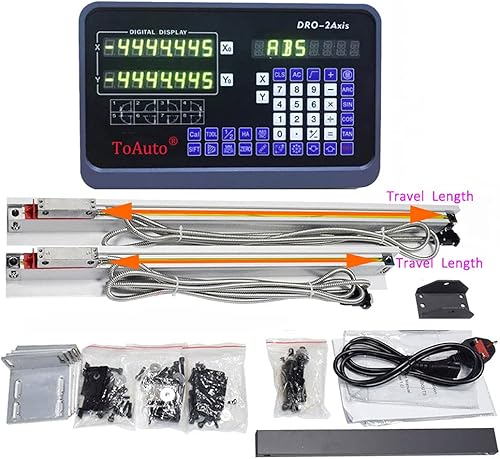

- 2 Axis Digital Readout DRO Display 5um,Available Measure Length: 150mm+600mm（6"+24"）.Note：The total length = Measure length + 140mm.
- Resolution 5um/0.0002", Supply Voltage range: AC 80V~260V; 50~60Hz ;
- 8 bit LED High-definition nixie tube, Digital Readout DRO Display with R function; The Power Source Resisting Disturbance, Durable Keyboard, Easy to change
- The Power Source Resisting Disturbance, Durable Keyboard, Easy to change;
- All Products will be provided for 2-year warranty after-sales and lifetime technical support, and 30-day return. You will receive 2 separate packages due to the different dimensions of scales and display if you only receive one of them, the other one is maybe on the way to you. Please just wait for a while.
Quantity
-
Detail

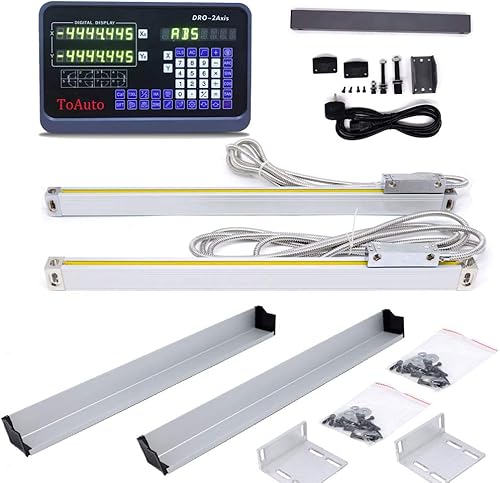

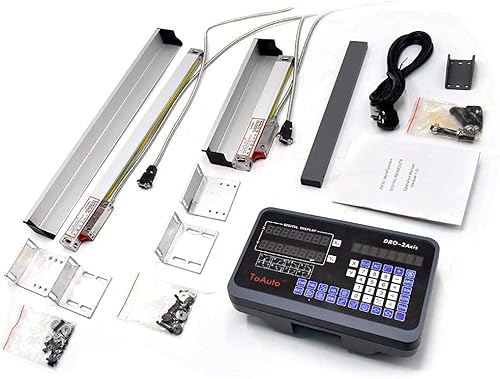

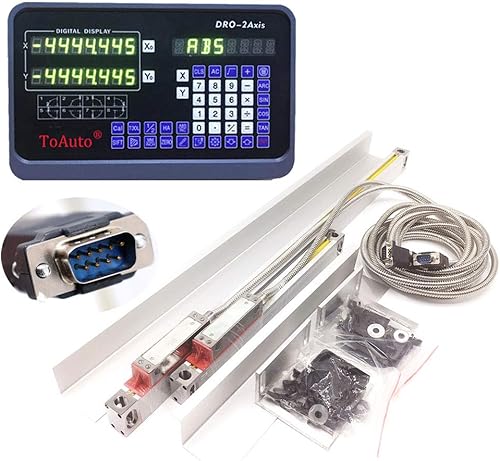

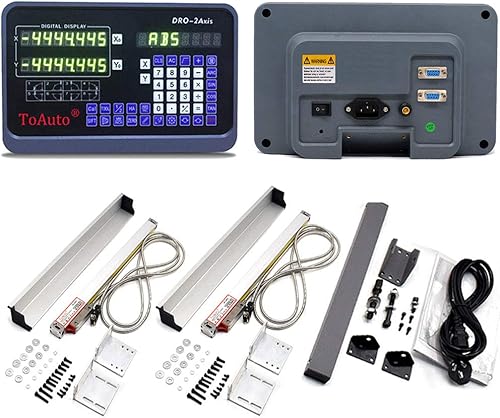

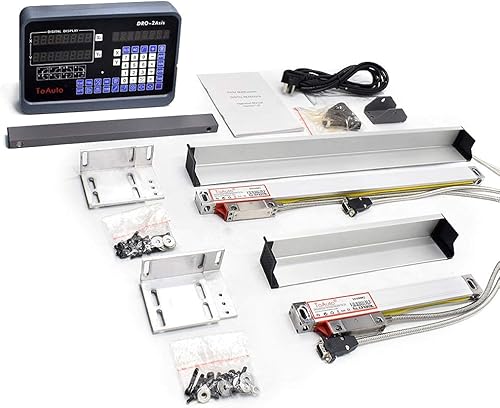

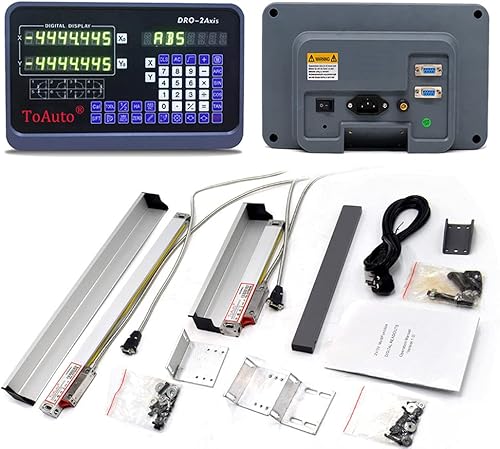

Package:

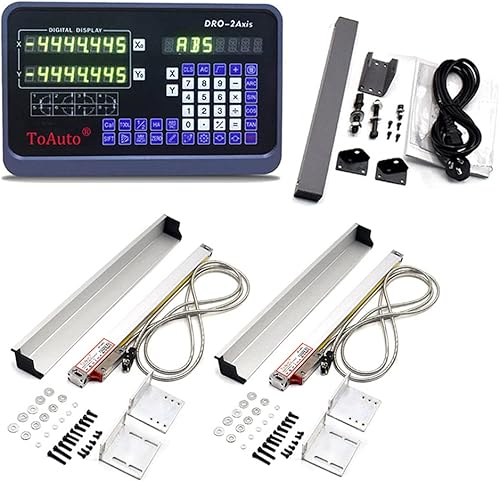

1 PCS 2 Axis Digital Readout Display

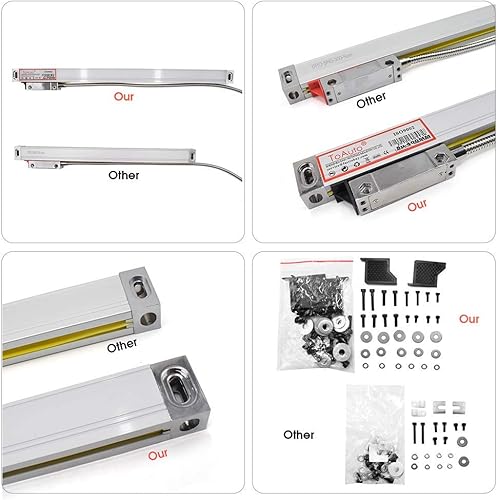

2PCS Linear Scale
1 PCS English Manual
Accessories: scale cover, L connecting bracket, scale cover, screw bag and so on.
Specification
Supply Voltage range: AC 80V~260V; 50~60Hz
Power consumption:15VA
Operating temperature: 0~45 degree centigrade
Storage temperature: -30~70 degree centigrade
Relative humidity: Less than 90%
Readout allowable input signa:TTL square wave
Allowable input signal frequency: Less than 5M Hz
Max resolution of digital display length: 5um
Min resolution of digital display angle:0.0001/pulse
Weight:1.2kg

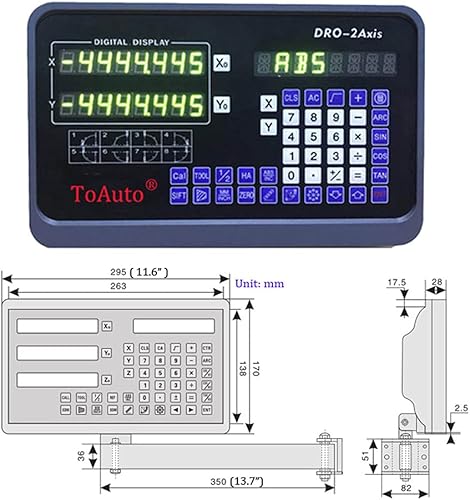

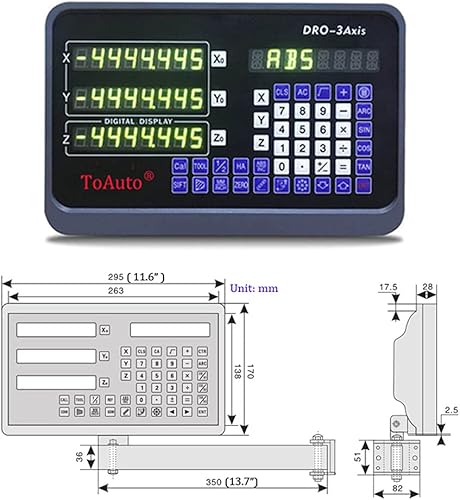

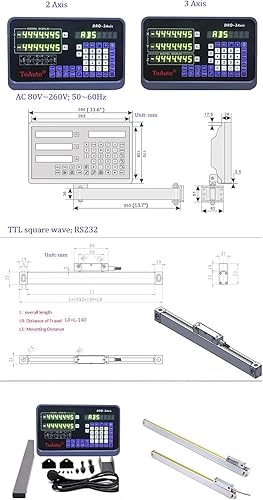

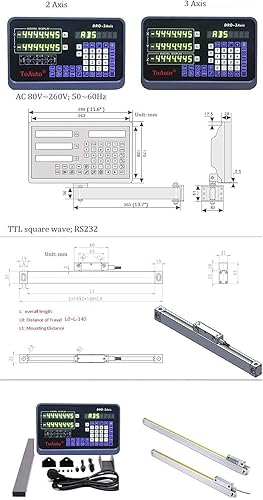

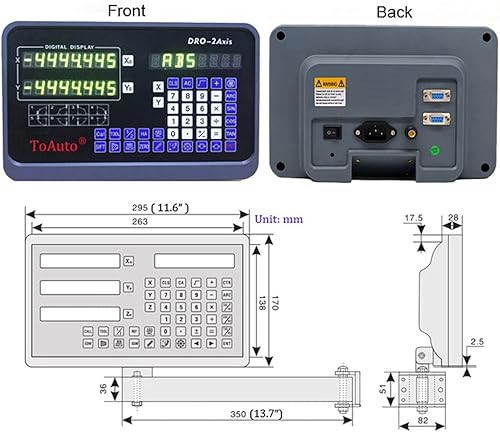

Dimensions: 295*170*65mm(11.6"*6.7"*2.56")

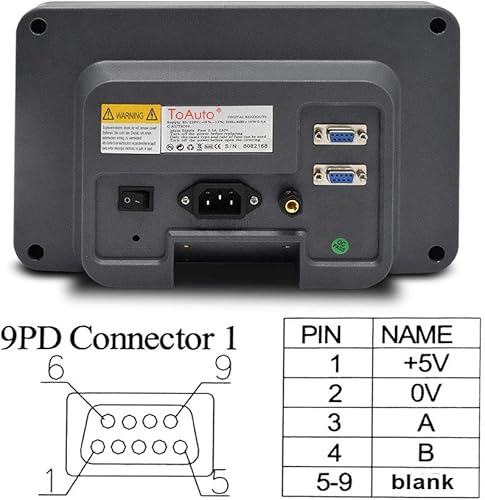

Linear Scale:DB9(RS232)
Advantage:
Display language:English
Backup data for power fail: power off Memory by E2PROM for ten years
Lifetime:Five million times
The Power source and signal: Resisting disturbance,durable keyboard, easy to change

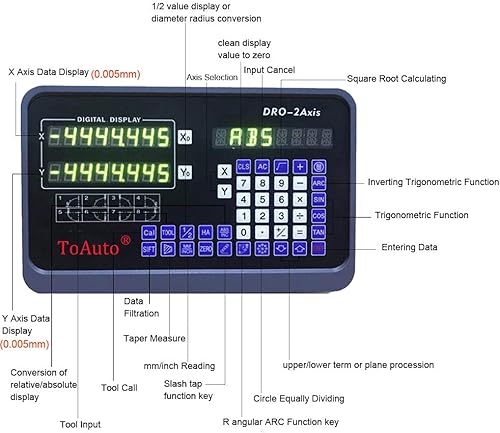

8 bit LED High-definition nixie tube
mm/inch mode
ABS/INC coordinate conversion, zero clearing, reset
liner error compensation, center of 1/2, R arc function(RAC)
vibration filtering, digital filtering
sleep mode, divide circle evenly (PCD)
200 sets sub datum function

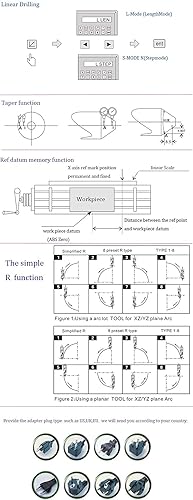

Drilling of oblique line, Taper measurement
Anti-interference resistance, high speed
High resistance to vibration, Linear drilling
PCD function, R function, Smooth R function, The simple R function
Chambering, Tool conpensation, Machining of oblique plane, Calculator
Application

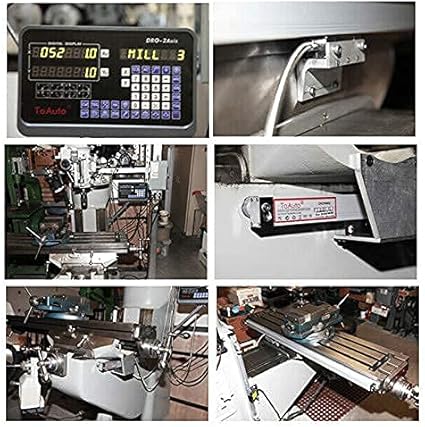

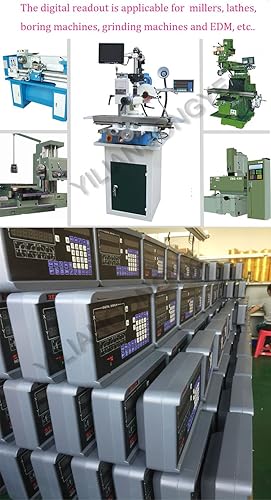

Widely use for millers, lathes, boring machines, grinding machines and EDM, etc. -
