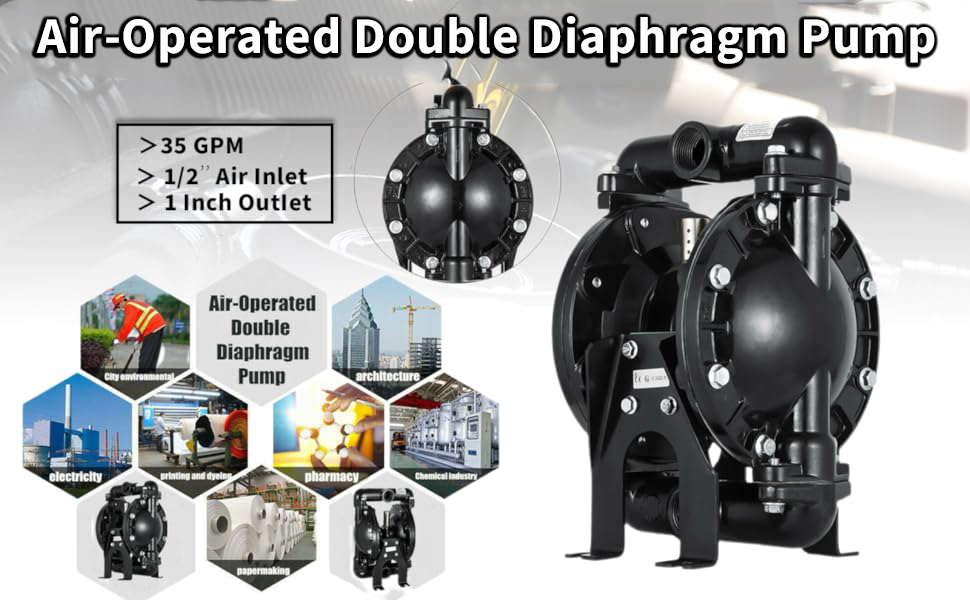

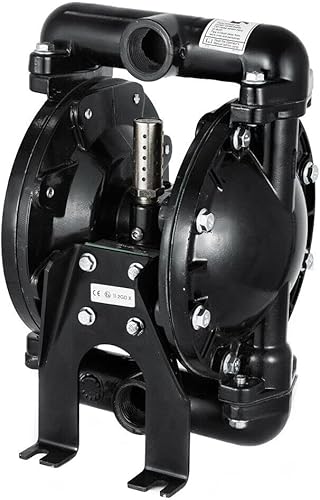

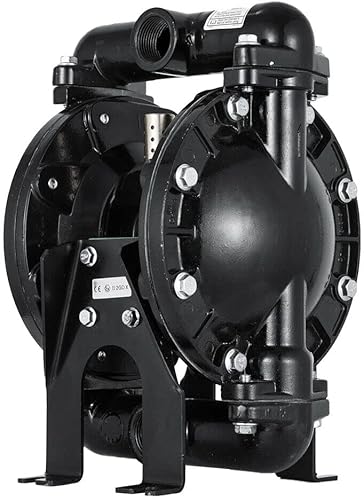

Air-Operated Double Diaphragm Pump 120PSI 35Gpm Pneumatic Dual Diaphragm Pump Air-Operated Waste Oil Transfer Pump
- A Diaphragm Pump (Also Known As a Membrane Pump) Is a Positive Displacement Pump That Uses a Combination of the Reciprocating Action of a Rubber, Thermoplastic or Teflon Diaphragm and Suitable Valves on Either Side of the Diaphragm (Check Valve, Butterfly Valves, Flap Valves, or Any Other Form of Shut-off Valves) to Pump a Fluid.
- The Listing Is About 35 Gpm Air-operated Double Diaphragm Pump with 1 Inch Inlet and Outlet. This Powerful Air-operated Double Diaphragm Pump Qby4-25l Features a 1in. Inlet and 1in. Outlet Capable of Pumping up to 35 Gallons/Min at Temperatures up to 150 Degrees F.
- Perfect for Use with Water. Ideal for Use with Low Viscosity Petroleum Fluids Including Diesel, Kerosene, Motor Oil and some Waste Oil.
- Can Not Use for Corrosive Liquid.
- In the Pump Two Symmetrical Working Chamber Each Equipped with a Diaphragm, the Center Link Will Be Integrated into One.compressed Air from the Pump Inlet into the Valve, Through the Valve Body to Introduce Compressed Air into One of the Chamber to Promote Movement of the Diaphragm Chamber, While the Other Chamber Gas Emissions. Once the End of the Stroke Is Reached, the Gas Distribution Mechanism Automatically Introduces Compressed Air into the Other Working Chamber to Push the Diaphragm in the Opposite Direction so That the Two Diaphragms Move Back and Forth in Unison.
Quantity
-
Detail
Unique & Professional Designs

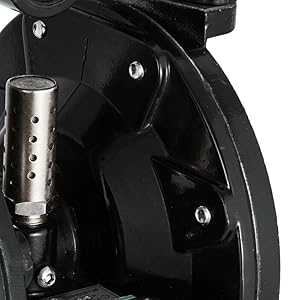

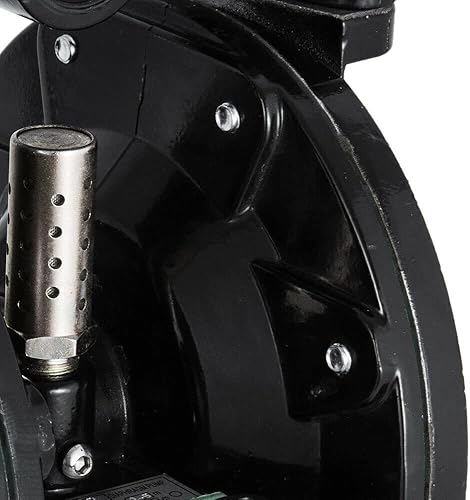

Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
Excellent Air-operated Performance

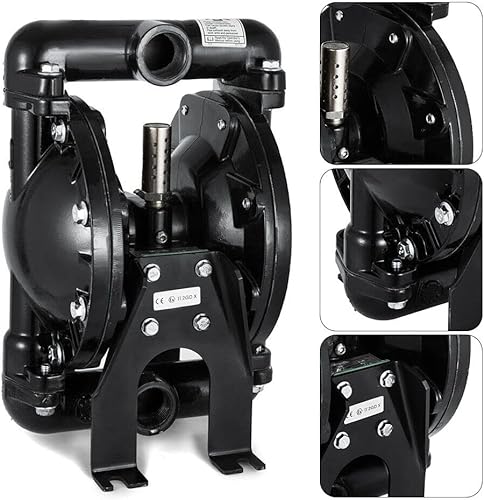

Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
Excellent Air-operated PerfSturdy & Leak-proof Constructionormance

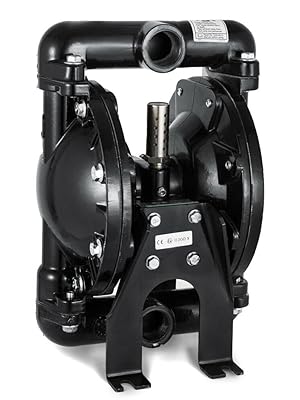

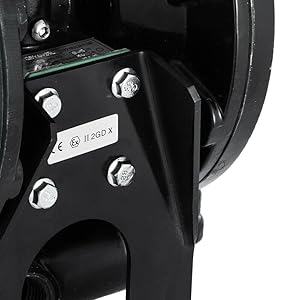

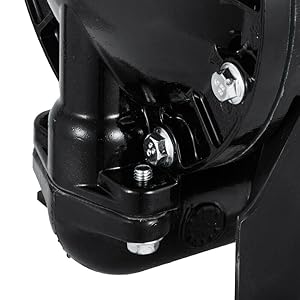

The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
Feature:
- Brand new with top quality
- Air-operated double diaphragm pump
- With 1 inch inlet and outlet
- 1/2 Inch air inlet
- 1/8 Inch max diameter suspended solids
- Perfect for use with water
- Ideal for use with low viscosity petroleum fluids
- Solid construction
120PSI 35Gpm Pneumatic Dual Diaphragm Pump Air-Operated Waste Oil Transfer Pump
Wide Applications:

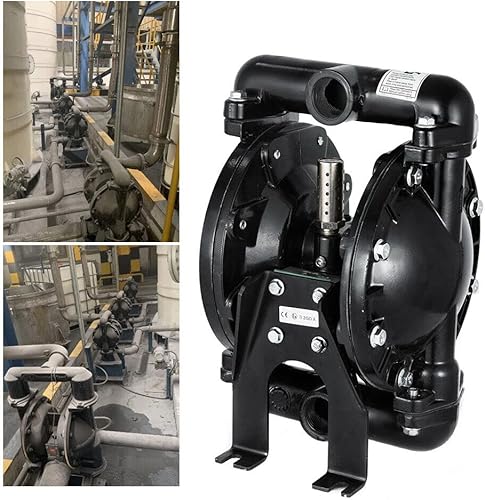

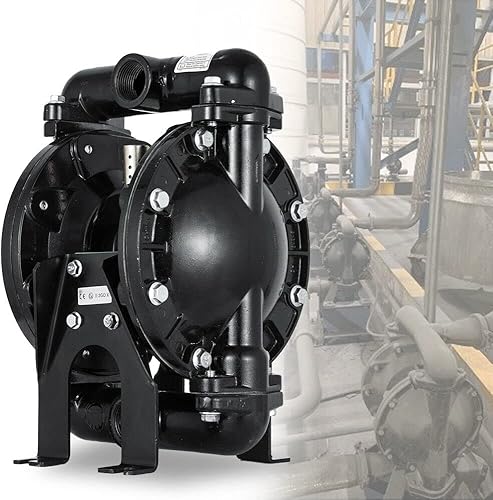

This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
- Premium Double PTFE Diaphragms:
Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：39.6 GPM
- Package Content:
- 1 x Air-Operated Double Diaphragm Pump
- 1 x Product Manual
-
