Burkit M27 X 2 Tap and Die Set, M27 x 2.0 Machine Thread Tap and Round Die Right Hand

  • Tap Material: High-Speed Steel 6542 (M2), Cutting Diameter: 27mm, Pitch: 2mm, Cutting Direction: Right Hand, Accuracy Class: H2.
  • Die Material: Alloy Tool Steel, Cutting Diameter: 27mm, Pitch: 2mm, Cutting Direction: Right Hand, Accuracy Class: 6g.
  • Technology: Straight fluted design, fast chip removal, and no blocking make your threads machining faster and easier.
  • Applications: Widely used in cast iron, copper, brass, abrasive steel, A3 steel, and other metal materials to process threads.
  • Package Include: 1 set Metric M27X2mm Tap&Die.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

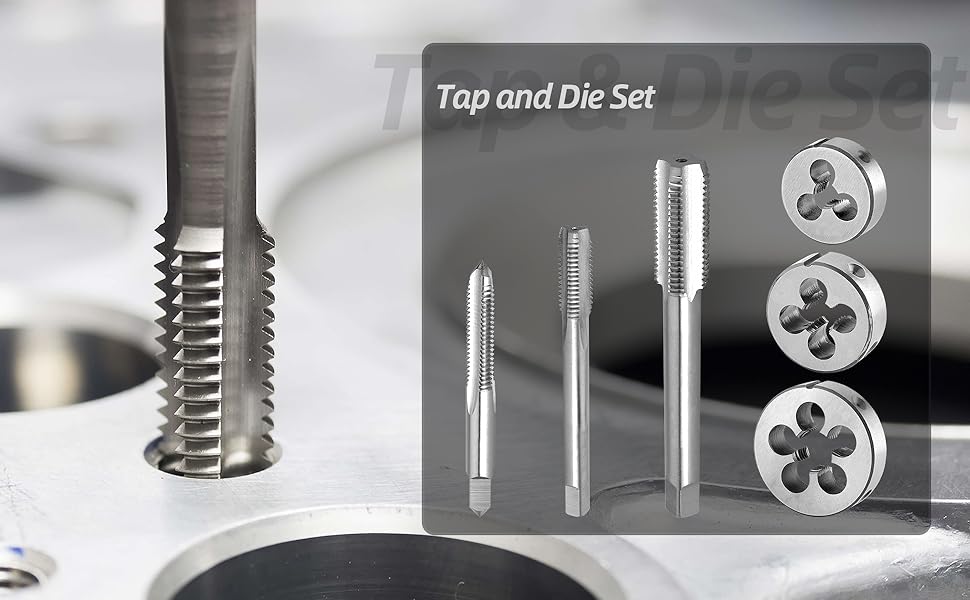

    Tap and Die set
    tap

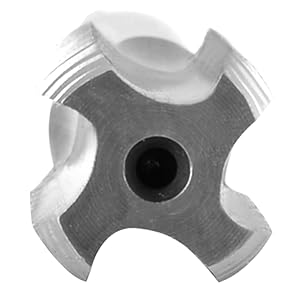

    About Taps

    Straight flute design, made of 6542 high speed steel. It is used to process threads of various through holes or shallow blind holes. Can process copper, brass, A3 steel, aluminum, cast iron and other materials.

    Generally used in conjunction with tapping machines, integrated bench drills, CNC lathes, machining centers, etc. Manual processing is also possible. When operating, control the speed according to the hardness of the material, the higher the hardness of the processed product, the slower the speed.

    Recommended feed rate:

    Hard steel: 5-10m/min, cast iron: 8-10m/min, ordinary steel: 6-15m/min.

    die

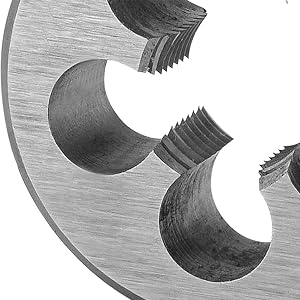

    About Dies

    Made of alloy tool steel, hardness and wear resistance. Used to repair external threads. When in use, the conical locking hole of the die is aligned with the screw of the wrench and tightened. The conical keyhole has a strong locking force and is not easy to loosen.

    Suggest:

    Appropriate lubricating oil should be added to the die-cutting edge when cutting, It is to be reversed every 1/4~1/2 turn to facilitate chip discharge from the chip hole.

    Customer Reviews
    4.7 out of 5 stars 111
    4.6 out of 5 stars 106
    4.8 out of 5 stars 132
    4.7 out of 5 stars 56
    4.2 out of 5 stars 22
    4.6 out of 5 stars 33
    Cutting Diameter 8mm 10mm 12mm 16mm 18mm 22mm
    Pitch 1.25mm 1.25mm 1.5mm 1.5mm 1.5mm 1.5mm

    Tips

    • Please be sure to take protective measures when working, you need to wear goggles and protective gloves.
    • Before tapping confirm whether the diameter of the round hole is appropriate. Be sure to select the appropriate cutting oil for the complex tapping process and apply anti-rust oil for maintenance after use.
    • When tapping, control the speed according to the hardness of the material, it is necessary to add water or coolant to cool down to prevent excessive temperature and reduce tap loss.
