CAARLA Battery Equalizer 4S Active Balancer 4s 3a 5a Sodium Battery Cell Balancer Group 5A with Shell for 0855A(4S 5A Lipo Lifepo4-01)
- 1.【BIDIRECTIONAL COMPENSATION】Battery equalizer is an energy transfer type equalizer that compensates for batteries in both directions, flowing from higher voltage to lower voltage.
- 2.【REVERSE POLARITY PROTECTION】The battery equalizer can compensate for the battery in both directions, with low voltage disconnection to provide longer battery life.
- 3.【AUTOMATIC MAINTENANCE】The battery equalizer can be connected in series for a long time in the battery system,and automatically maintain energy balance in the battery state.
- 4.battery voltage balance system keeps the battery in good condition, maintains battery health, prolongs battery life, and reduces battery replacement.
- 5【Battery Balancer】: The battery equalizer has an intelligent voltage compensation system to keep the battery in an idle state and automatically shut down when the voltage is insufficient to extend battery life.
Quantity
-
Detail

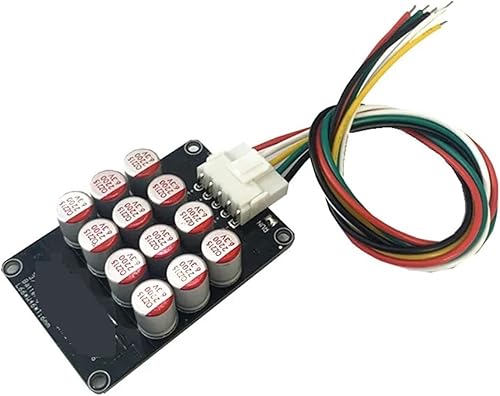

Group active balancer
Working voltage: 1.8V-4.5V
verison work voltage is 2.7v-4.5v
verison work voltage is 1.8v-4.5v,only can used on 4S
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
only 3-4S version only can used on if you need 3/4s used
above 4S version can be used on .

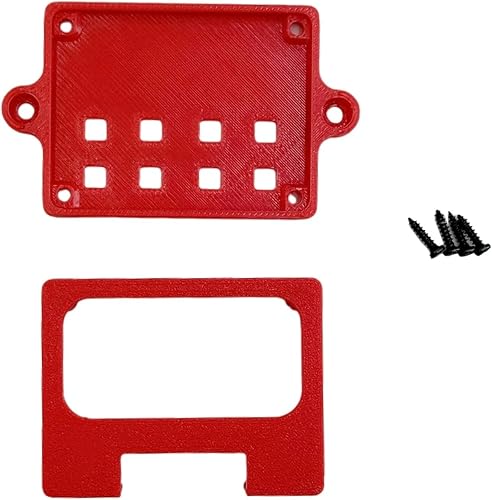

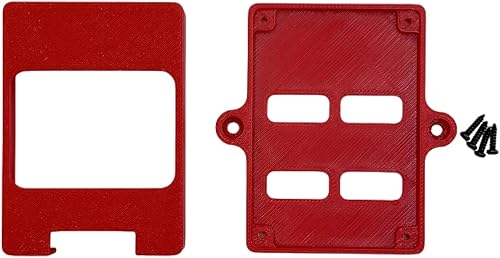

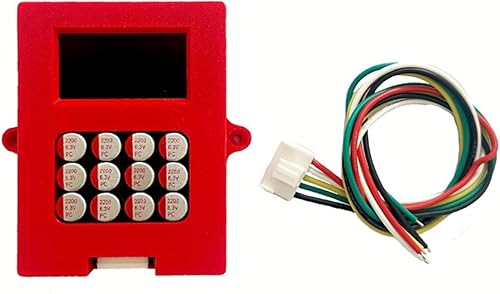

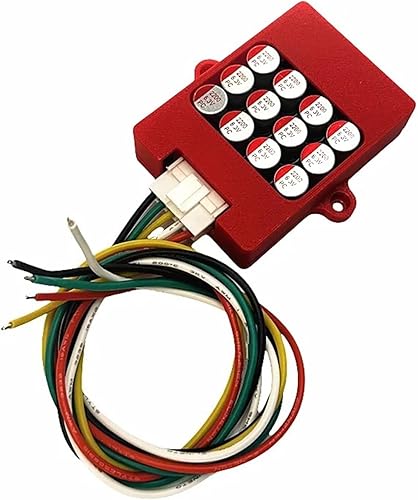

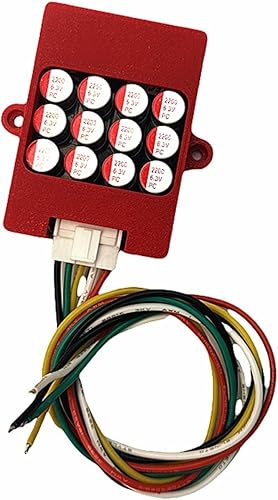

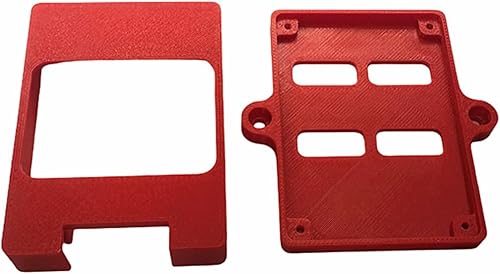

Cace For Active Balancer
Case Size -
