CNC Handwheel, 100PPR CNC Electronic Handwheel with Emergency Stop Button, 4 Axes CNC Handwheel Controller Manual Pulse Generator
- High Efficiency: The output pulse of this handwheel manual pulse generator is 100PPR, has high working efficiency and stable performance

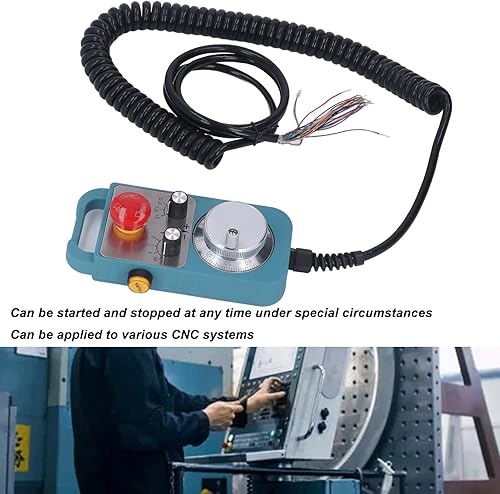

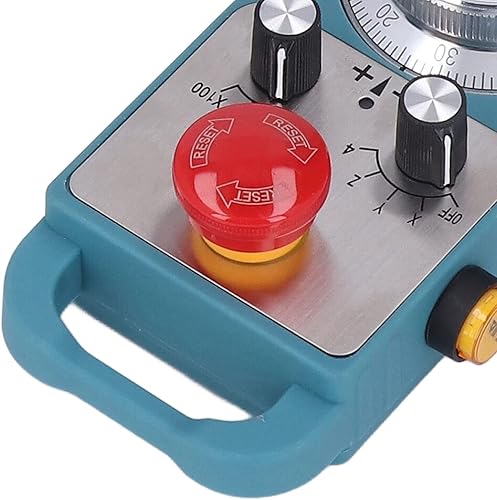

- Emergency Stop Button: This handwheel is equipped with emergency stop button, which can be started and stopped at any time under special circumstances, safer to use

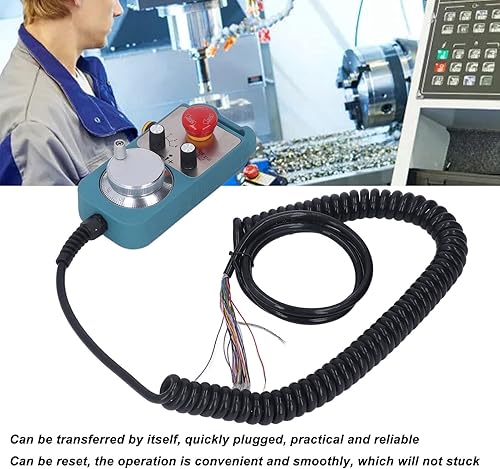

- Practical and Reliability: This CNC control handwheel can be transferred by itself, quickly plugged, practical and reliability
- Smoothly Operating: The electronic handwheel is resettable, and the operating is convenient and smoothly, which will not stuck
- Application: This electronic handwheel can be applied to various CNC systems
Quantity
-
Detail
Item Type: CNC Electronic Handwheel
Material: ABS
Voltage: 5V
Pulse: 100PPR

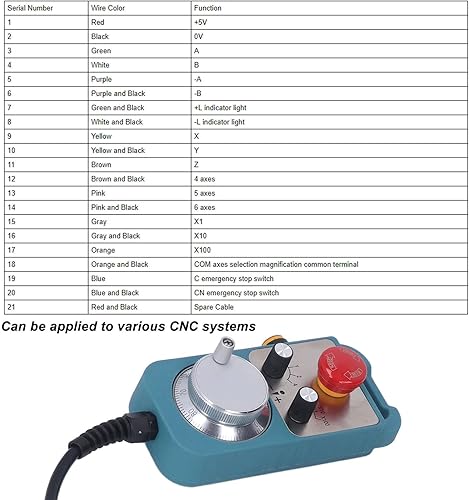

Wiring Method:
Serial Number
Wire Color
Function
1Red+5V
2Black0V
3GreenA
4WhiteB
5Purple-A
6Purple and Black-B
7Green and Black+L indicator light
8White and Black-L indicator light
9YellowX
10Yellow and BlackY
11BrownZ
12Brown and Black4 axes
13Pink5 axes
14Pink and Black6 axes
15GrayX1
16Gray and BlackX10
17OrangeX100
18Orange and axes selection magnification common terminal
19BlueC emergency stop switch
20Blue and BlackCN emergency stop switch
21Red and BlackSpare Cable
Package List：

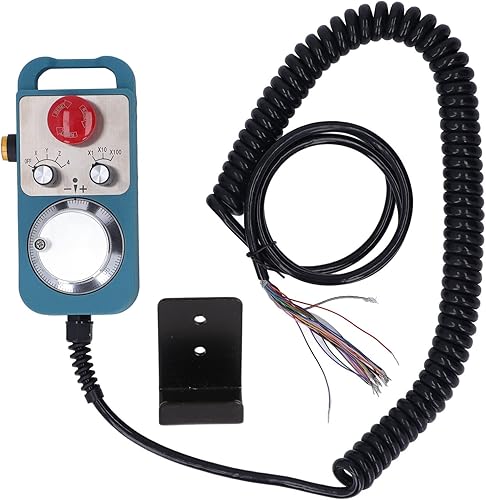

1 x CNC Electronic Handwheel
1 x Bracket
Note:
Match the appropriate model before use.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
-
