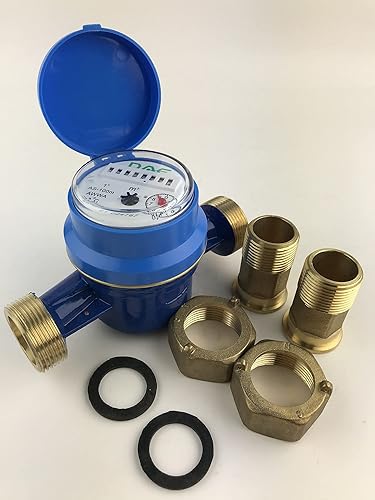

DAE AS-100m 1' Water Meter, Measuring in Liters + NPT Couplings
- Horizontal Inline mount with dial facing upwards. For installing vertically with water flowing upwards, please refer to DAE DAE V-100P , or DAE VM-100P which can be installed in any position, vertically or horizontally, water flowing downwards or upwards, dial facing upwards, downwards or side-way. Not for use of pit application. For outdoor use, please refer to DAE MJ-100c, PD-100.
- For upgraded AS-100mP, Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone.

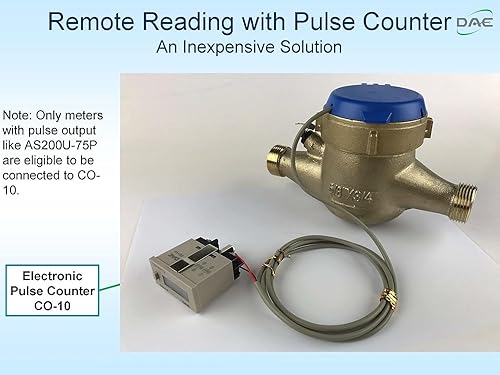

- For upgraded AS-100mP, ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
- Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
- Accuracy: +/-1.5% within normal flow as per AWWA Standard. Conforms to both AWWA and ISO 4064, for clean water only. Maximum Flow Rate: 50 GPM (11.4 m³/h), Normal Flow Rate: 25 GPM (5.7 m³/h), Minimum Flow Rate
Quantity
-
Detail

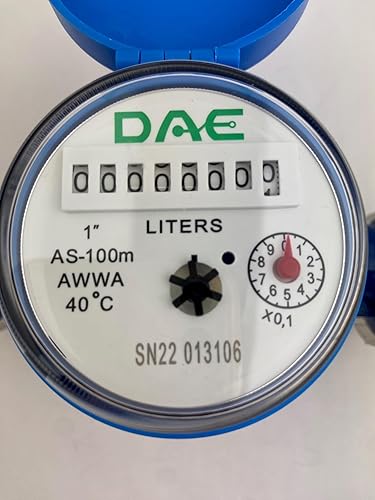

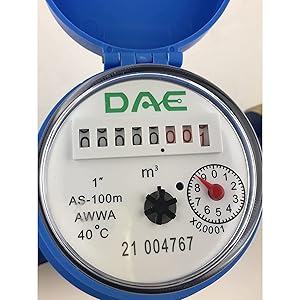

How to read the meter?
8 digits register counter.
The 1st digit from the right is in liter or one thousandth cu meter (*0.001 cu meter).
The dial is in 0.1 liter or ten hundredth cu meter (*0.0001 cu meter).
If you see 00001234 on the register, it is 1.234 cu meter.
Upgrade to AS-100mP for Simple Reading Solutions

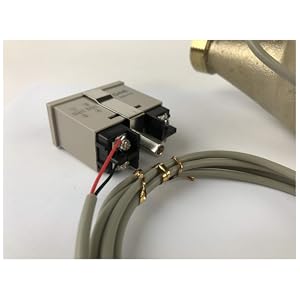

With CO-10 or CO-10 KIT, you can read the water meter usage remotely on the electrical pulse counter.
Upgrade to AS-100mP for Cloud Metering for Water
1 AMR130AN KIT + 1 CC2030 KIT
1 DAE CC2030 KIT Gateway + 1 AMR130AN KIT can read 1 water meter with pulse output (like DAE AS250U-100mP, MJ-100, PD-100, V-100P, VM-100P and WP-300P) remotely with cell phone, PC and generate billing report. One CC2030 Gateway can monitor 20 meters (water, electricity, and gas).

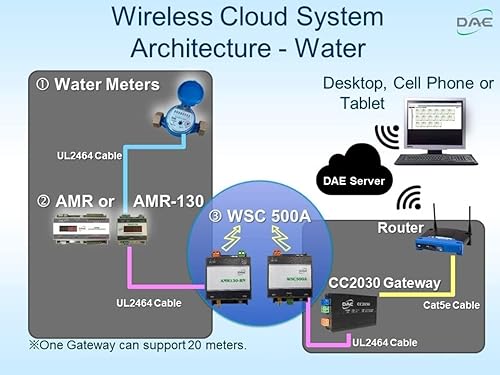

1 AMR130-RN KIT+1WSC500A + 1 CC2030 KIT
For existing building, hard to draw cable between AMR130AN and CC2030, please choose 1 AMR130-RN KIT + 1 CC2030 KIT + 1 WSC500A to connect them wirelessly.
For remotely monitoring a water meter in an area without power like the one in the farm, please choose CC2030 KIT+AMR130RB+WSC500A to connect Battery-Powered AMR130RB (close to water meter) and CC2030 (close to your router) wirelessly.

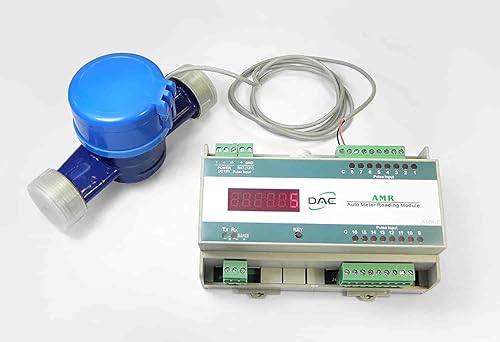

1 AMR KIT + 1 CC2030 KIT
For monitoring up to 16 water meters remotely with cell phone, PC and generate billing report, you will just need 1 AMR KIT + 1 CC2030 KIT.
1 AMR KIT+2 WSC500A + 1 CC2030 KIT
For existing building, hard to draw cable between AMR (close to water meter) and CC2030 (close to your router), please choose 1 AMR KIT + 1 CC2030 KIT+ 2 WSC500 RF Converter to connect them wirelessly.

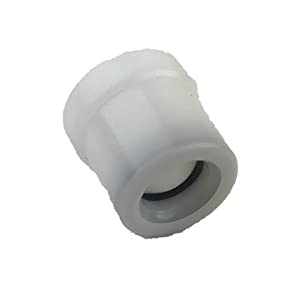

Back Flow Prevention Valve
You must have back-flow-prevention valve in your piping system, or the reading of CO-10, Cell phone/PC may be more than the reading of water meter due to the backflow. Most of US piping system have back-flow-prevention valve.

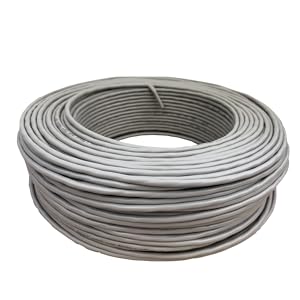

UL2464 Shielded Twisted Pair Cable with Drain Wire, 24 AWG
To securely transfer metering data for DAE Cloud Metering Solutions on Water, please use UL2464 cable to extend connection between water meters (have about 4 ft pulse cable) and AMR130AN, or reading of Cell phone/PC may be more than the reading of meter due to exterior interference. With UL2464 cable, connection between meter, AMR130AN can be extended at least 328 ft, and at least 2000 ft between CC2030 and AMR130AN.

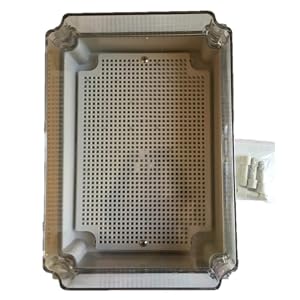

DAE B1725 Plastic watertight NEMA 4 IP66 Universal Electrical Enclosure with Mounting Plate
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use.
-
