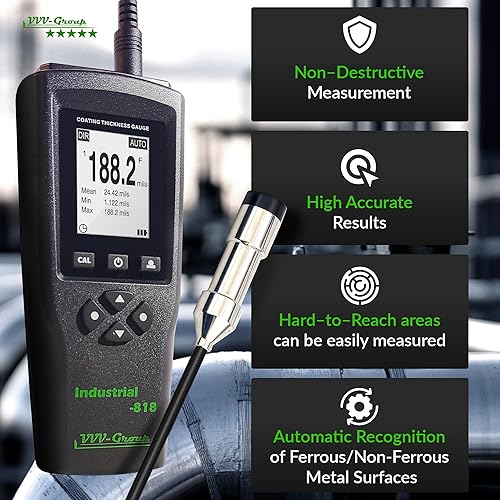

Digital Professional Coating Thickness Gauge Industrial-818 Paint Meter for Fe/NFe with Measuring Range: 0-197 mils | Resolution 0,001 mils

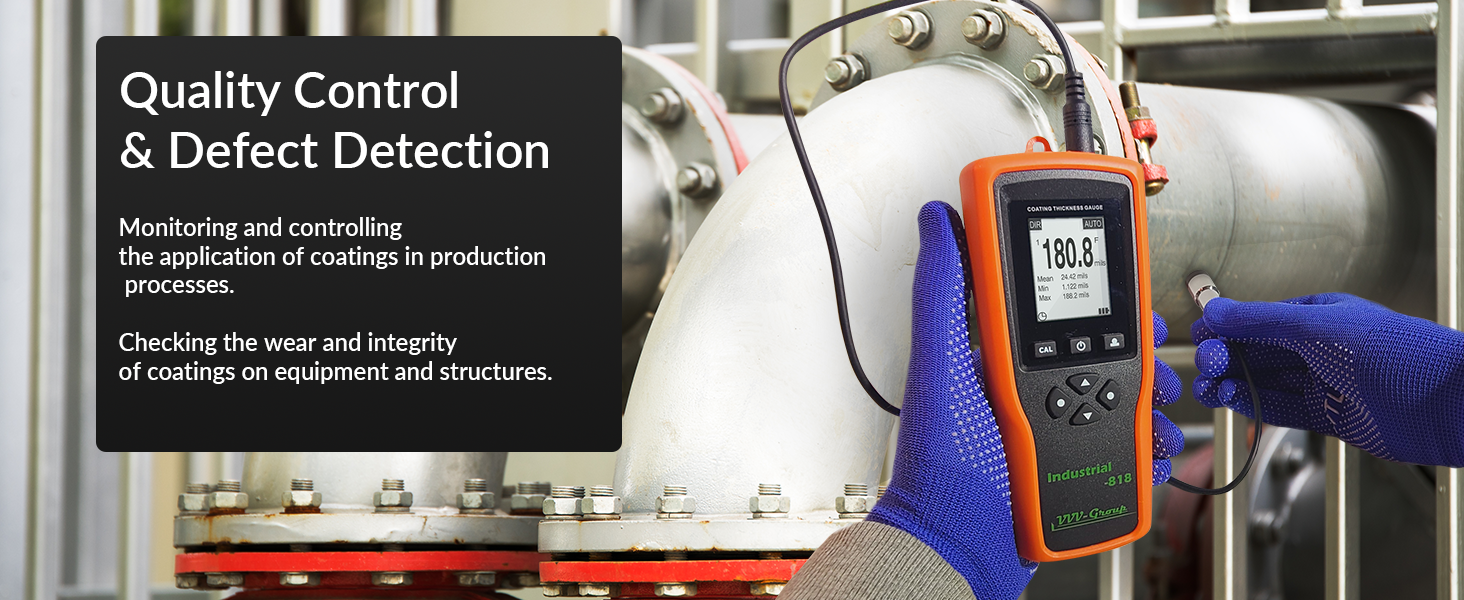

HIGH PRECISION: Professional coating thickness gauge with high precision Resolution of 0.001 mil with the largest measuring Range of 0-197 mil;

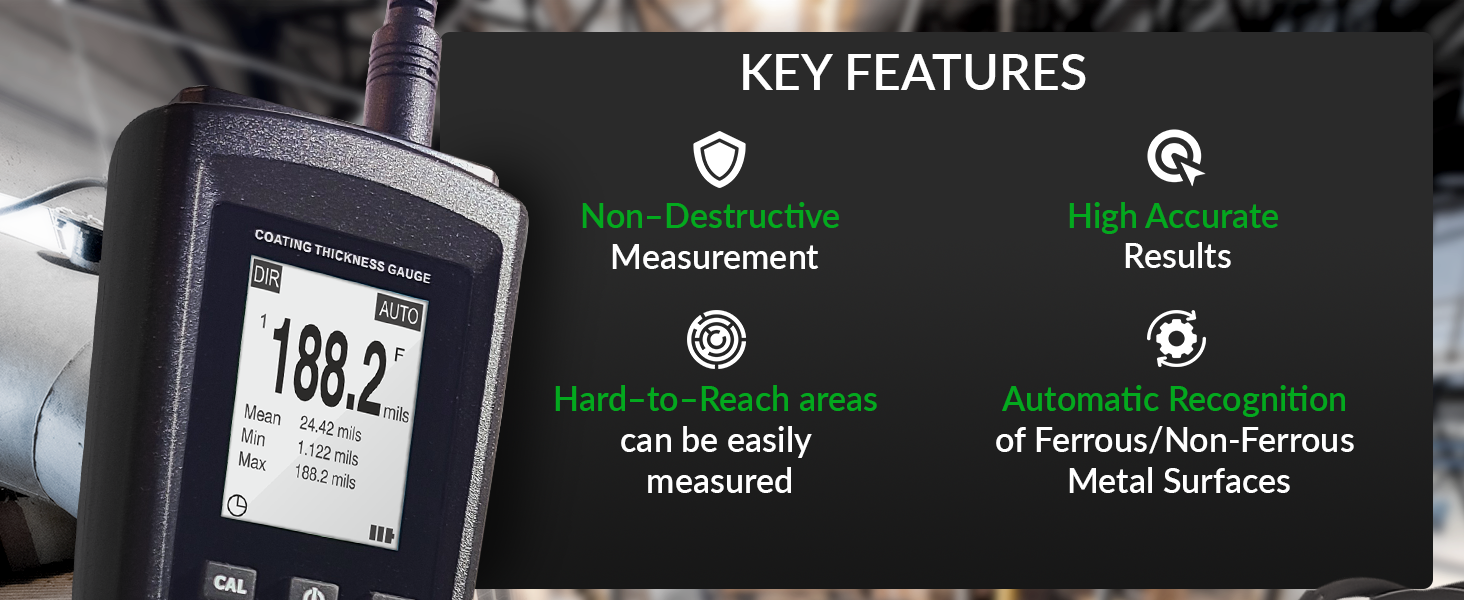

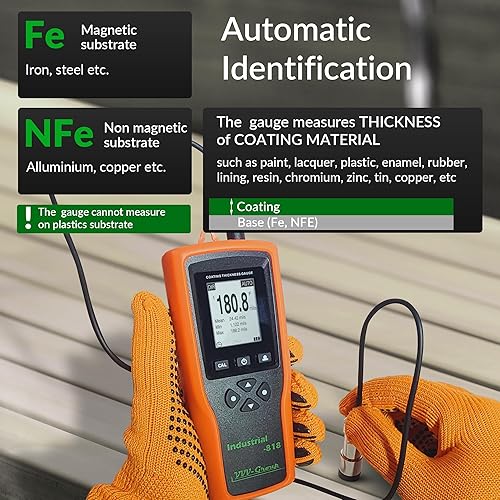

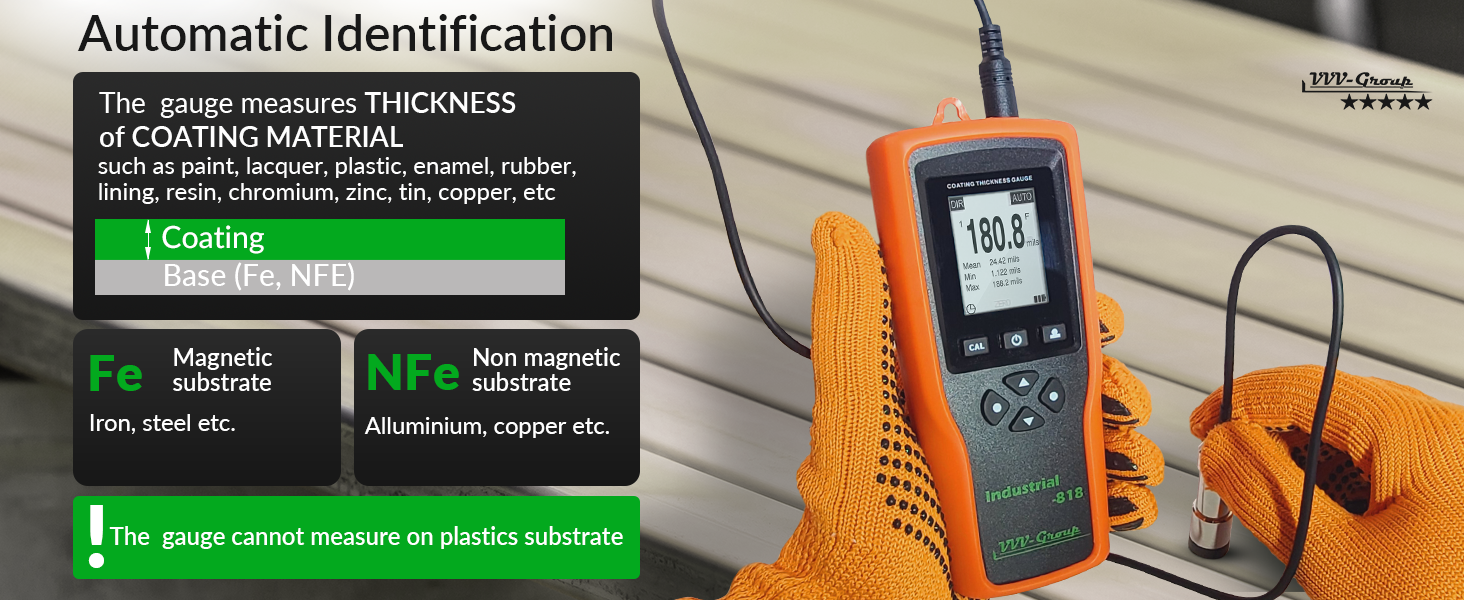

UNIVERSAL AND AUTOMATIC: increased measurement accuracy and automatic recognition of base metal. Automatically recognizes what metal the base is made of;
EASY TO USE: 3 units available: Mils / um (Micron) / mm (Millimeter) with a maximum deviation of less than

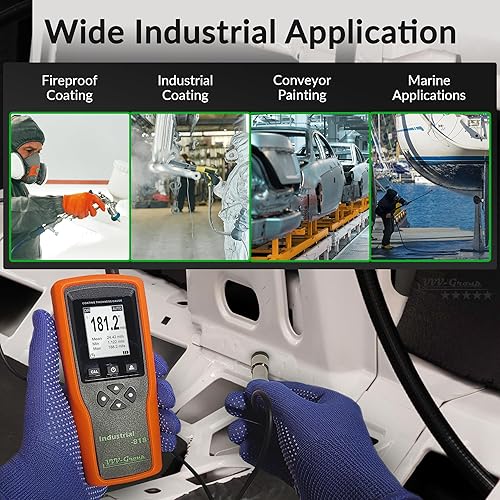

PROFESSIONAL TOOL: Let's apply in the industry for the purpose of high-precision measurement of thickness of coverings on the wide range. Measurement of fire protection coatings possible

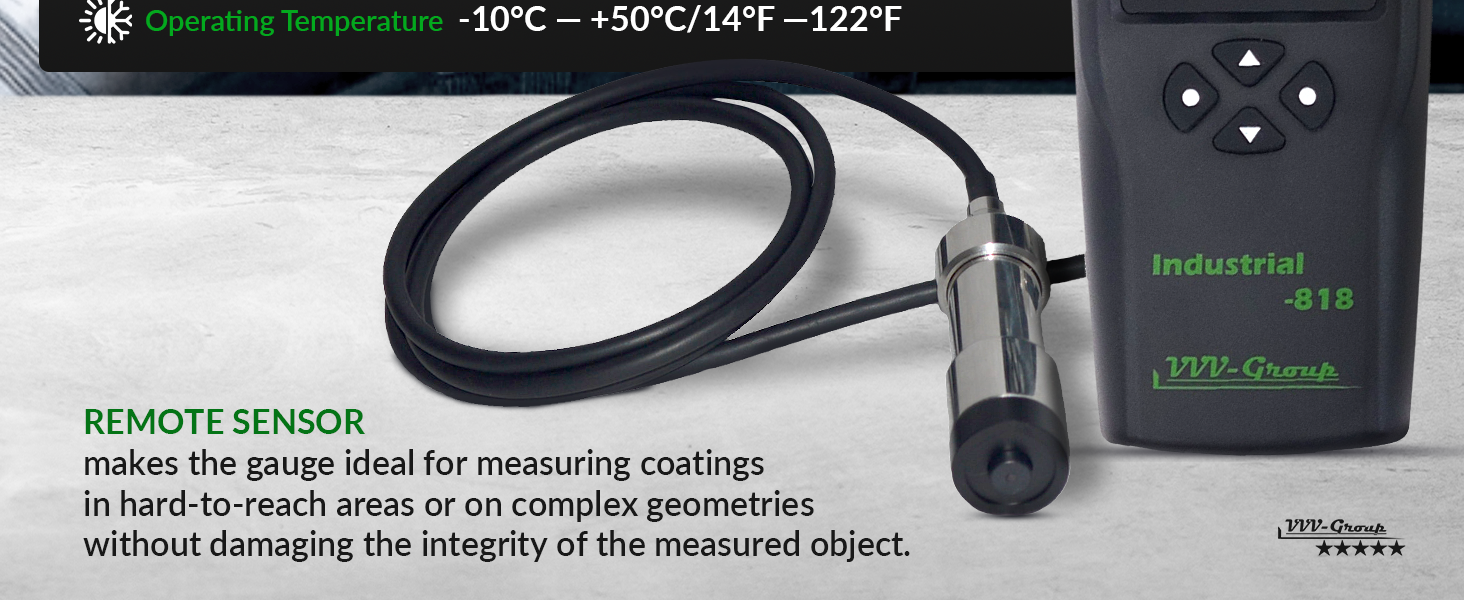

CONVENIENT DESIGN: the case is made of high quality plastic with a shockproof rubber cover for increased durability. Dynamic measuring probe for measuring curved surfaces;

Quantity

ADD TO CART

BUY IT NOW

Detail

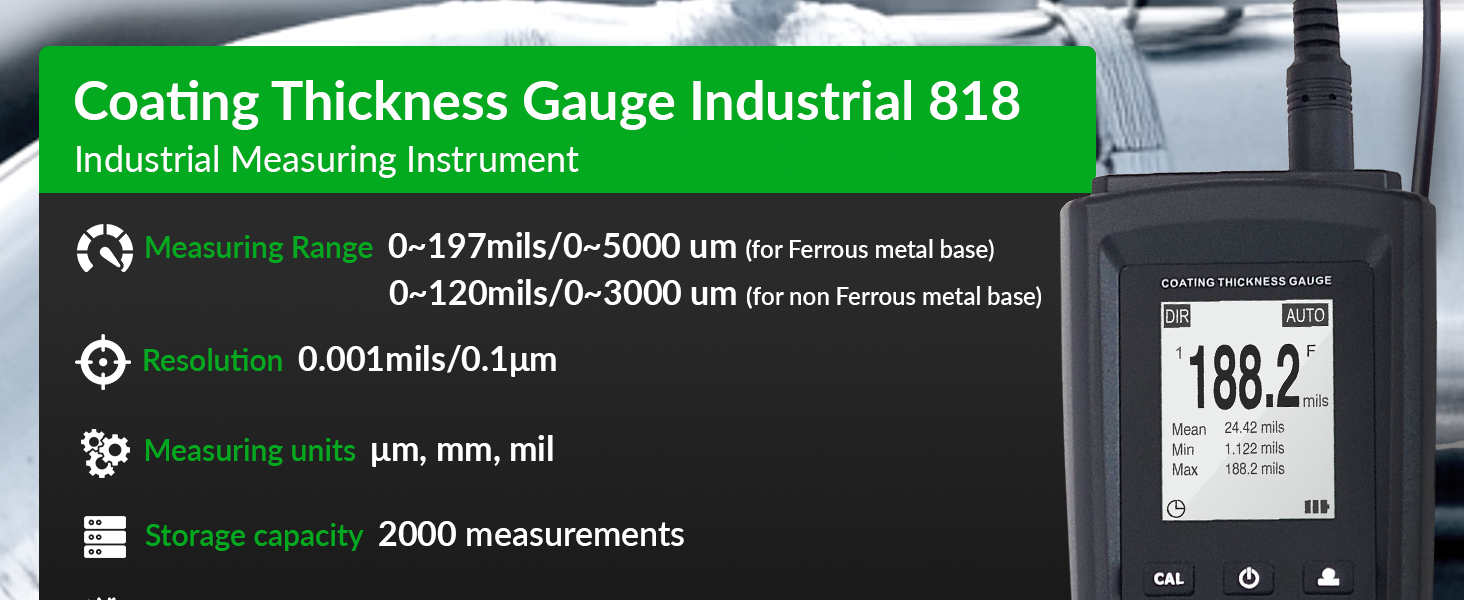

Coating Thickness Gauge Industrial-818 FUNCTION AND SPECIFICATION:

Probe position:	External;
Measuring principle:	Fe: magnetic induction; NFe: eddy current effect;
Range for ferrous metal base:	0-197mils (0-5000um);
Range non-ferrous metal base:	0-120mils (0-3000um);
Resolution:	0.001mils(0~9.999 mils); 0.01(≥10mils) / 0.1μm (0~99.9μm ); 1μm (≥100μm);
Measuring units:	μm, mm, mil;

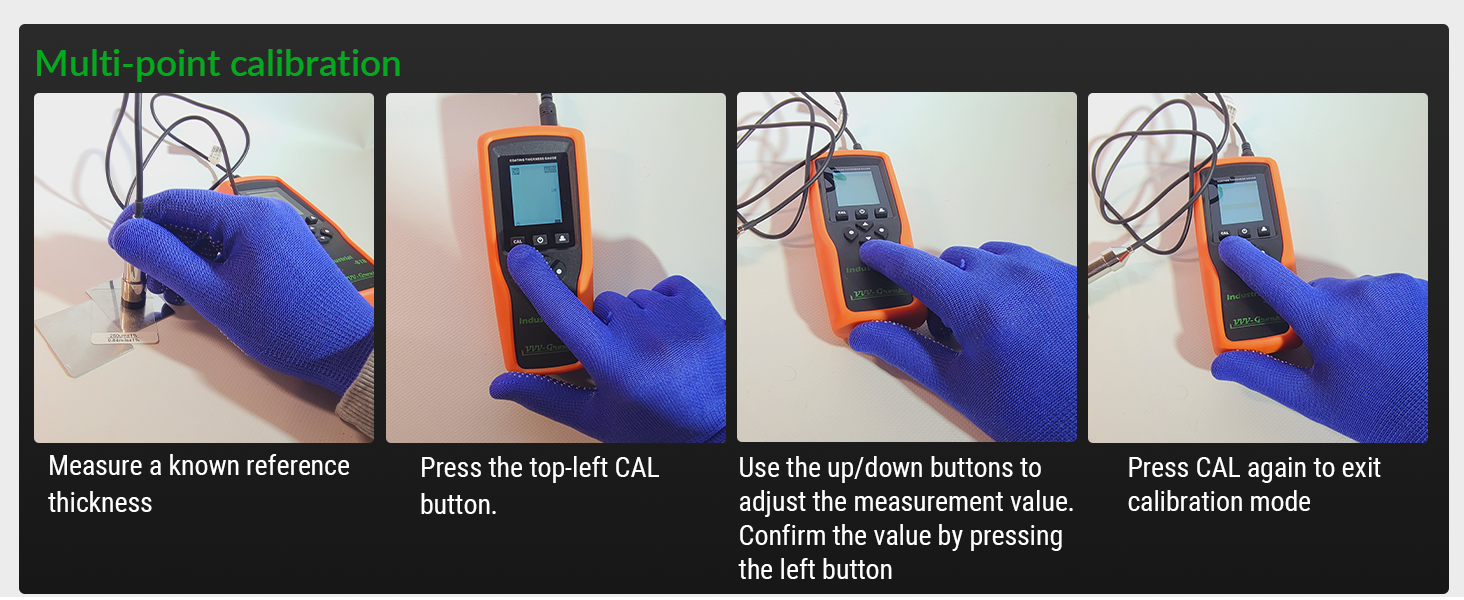

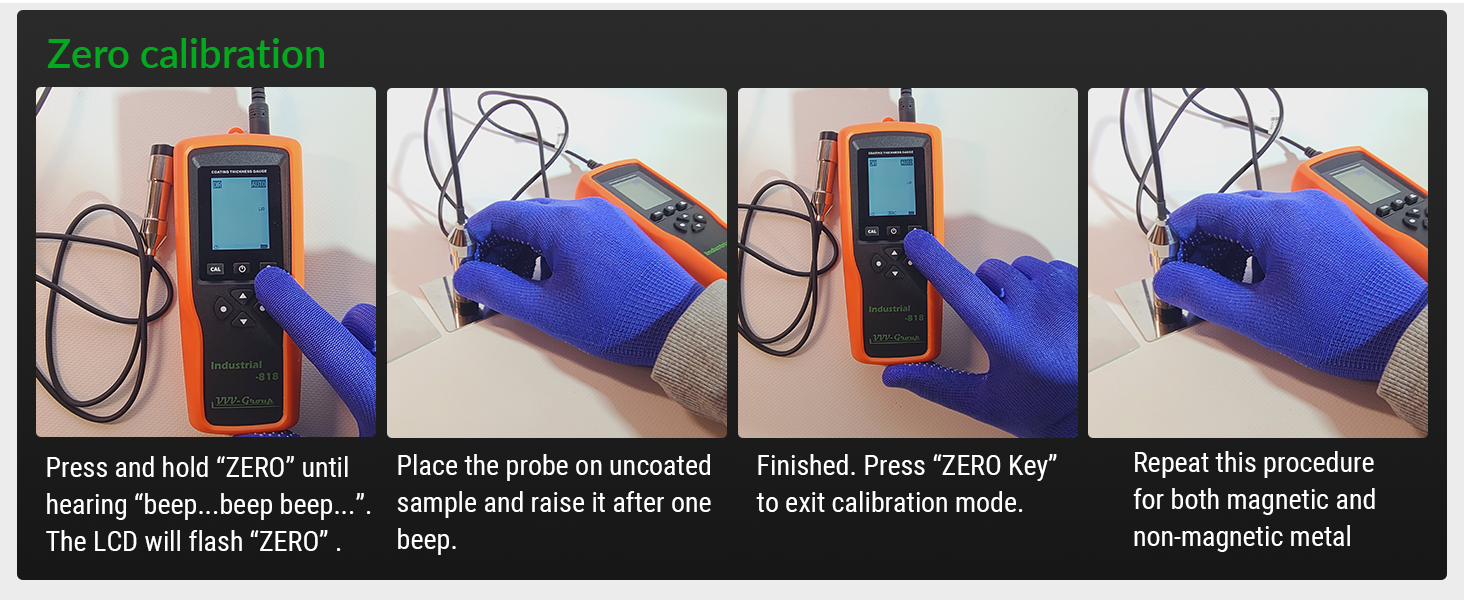

Calibration:	Zero calibration, Multi-point calibration;
Statistics:	Number of data, maximum, minimum, mean, standard variance;
Storage capacity:	2000 measurements;
Probe triggering force:	0.3~0.8N;
Maximum measured speed:	2 readings/sec;
Operating environment:	Temperature: 14~122°F (-10~+50℃); Humidity: 20~90% RH (non-condensing);
Power supply:	3 pcs AAA 1.5V alkaline batteries or 2 pcs AAA 1.2V Ni-MH batteries;

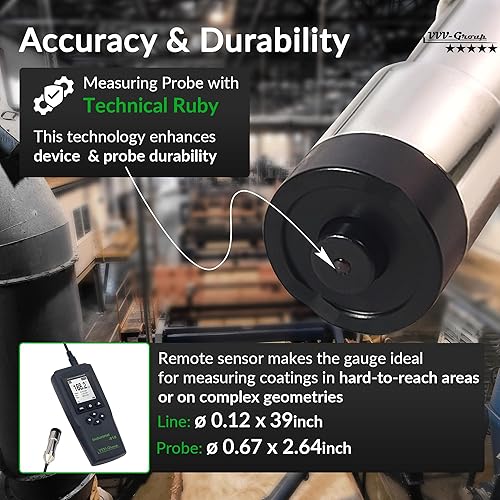

Material: Host:	ABS with Rudder case; Probe: stainless steel; tip: technical ruby;

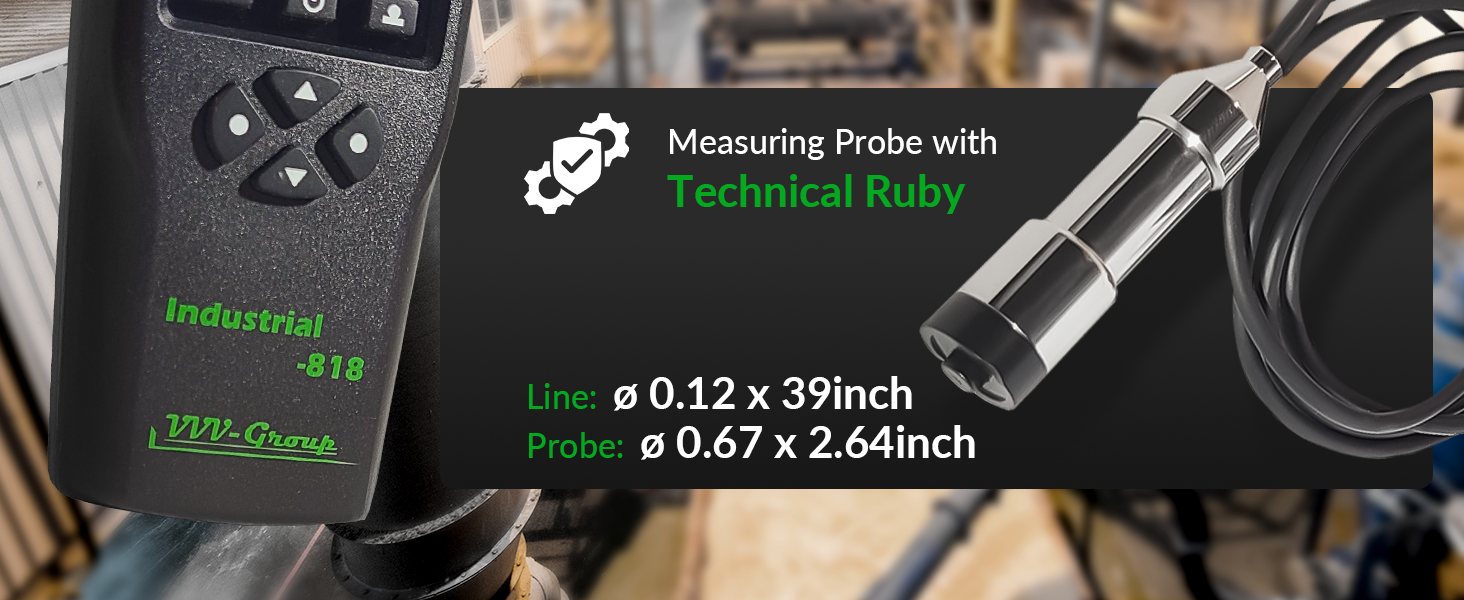

Dimensions:	Host: 6.962.921.6inch (1747340mm); Line:Φ0.1239inch; Probe:Φ0.672.64inch;
Weight:	About 200g (without batteries)
