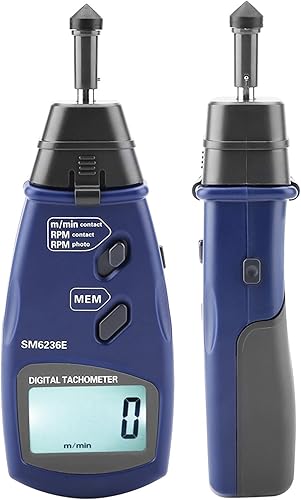

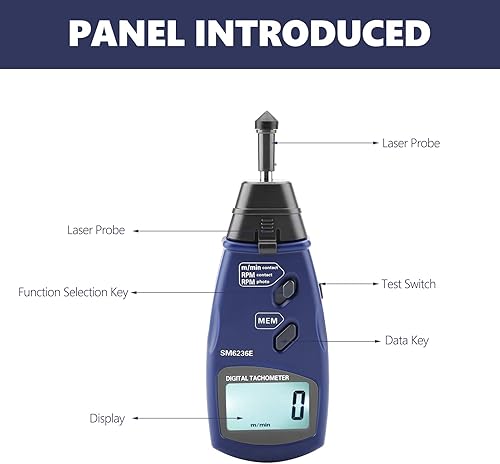

Digital Tachometer DT6236E /Non- Photo Tachometer 5 Digits 18 mm RPM Tach LCD Rotation Meter Gauge Tester

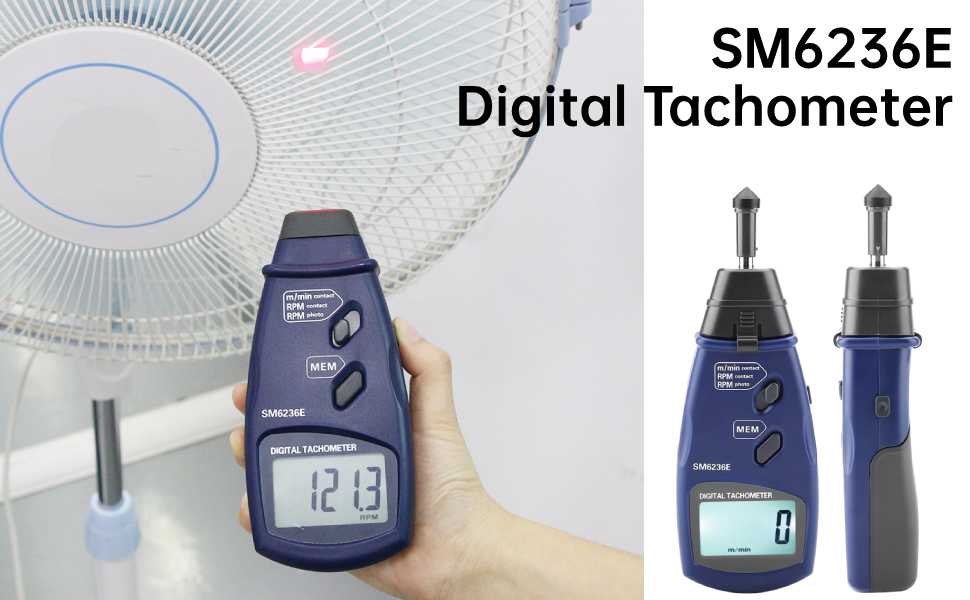

NON : Digital photo tachometer adopts advanced technologies to achieve or non- measurement of rotation speed and line speed
AUTOMATICALLY STORAGE: Pocket rotation gauge has automatically store value, min value and the last measurement value, convenient to use
CONVENIENT MEASUREMENT: Speed sensor with measures speed and length of wire, cable and rope conveniently, can improve work efficiency
AUTOMATICALLY INDICATION: Automatically prompt when the voltage of power supply voltage is lower than the specified value
MULTI-PURPOSE USE: accessory and photoelectric accessory can be converted mutually at any time to achieve multi-purpose use

Quantity

ADD TO CART

BUY IT NOW

Detail

Measuring Range:

Photoelectric Tach	2.5 ~ 99999RPM

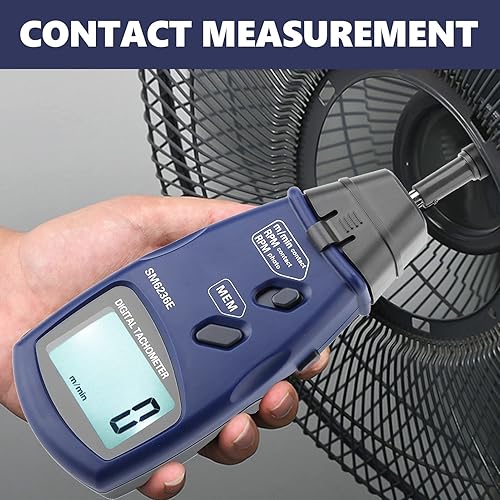

Contact Tach	0.5 ~ 19999RPM
Contact Line Speed	0.05 ~ 1999.9m/min

Note 1	Due to the difference between monitors and light effect, the pictures may not reflect the actual color of the item.
Note 2	Please allow slight error due to manual measurement. Thanks for your understanding.

Specification:

Photoelectric Tach Resolution	0.1RPM (2.5 ~ 999.9RPM), 1RPM(over 1000RPM)
Contact Tach Resolution	0.1RPM(0.5 ~ 999.9RPM), 1RPM(over 1,000RPM)
Contact Line Speed	0.01m/min(0.05 ~ 99.99m/min), 0.1m/min(over 100m/min)

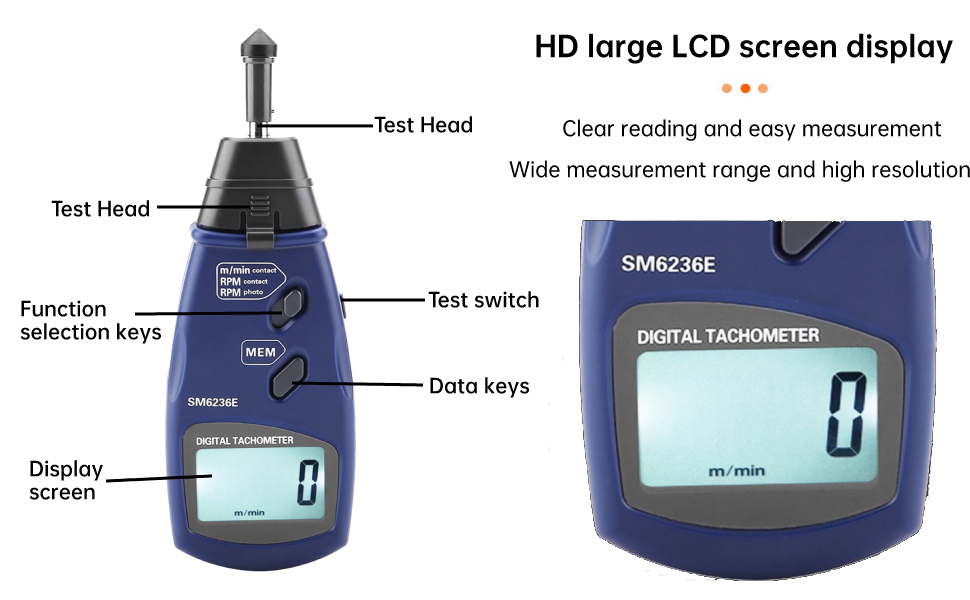

Display	5 digits 18mm backlight LCD
Accuracy	±(0.05%+1 digit)
Sampling Time	0.5 sec(over 60RPM)
Range Selection	Auto-Ranging
Memory	Max. value, Min. value, Last value. 96 data storage

Time Base	6MHz Quartz Crystal
Detecting Distance	50 to 500mm

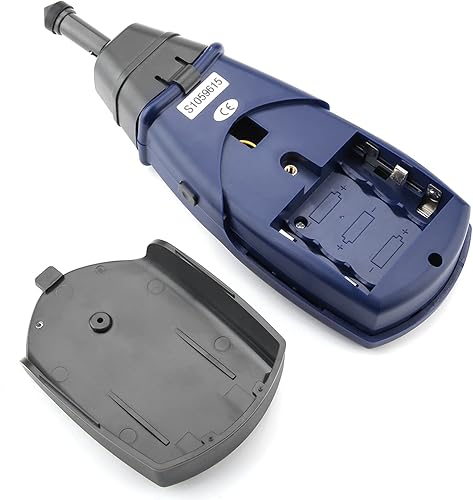

Battery	3 x1.5V AA Batteries (NOT included)
Power Consumption	about 50mA
Color	Black
Weight	Approx. 436g/15.4oz
Package list	1 * Tachometer 1 * User Manual 3 * Reflective Paper 1 * Screw 4 * Tach Accessories 1 * Photoelectric Tach Head 1 * Storage Case
