Digital Vacuum Gauge, 0-75000 Microns Gauge Range, ±5% Measurement Accuracy, 4 Vacuum Units Buzzer Alarm Digital Display 7/16”-20UNF Connector Three-Way Connection Extended Rod

Digital Vacuum Gauge, 0-75000 Microns Gauge Range, ±5% Measurement Accuracy, 4 Vacuum Units Buzzer Alarm DigitalDisplay 7/16”-20UNF Connector Three-Way Connection Extended Rod

Digital vacuum gauge parameters: Micron Gauge Range: 0-75000 microns, Maximum Overload Pressure: 72psi/0.5Mpa, Measurement Accuracy: 2-100Pa (Digits ± 5%), Operating Temperature: 0-50°C(32-122℉), Resolution: 0.01 (

Digital vacuum gauge supports 4 vacuum units switch, including Pa, mBar, mmhg and Microns, a large LCD display with night vision, engineered with overrange protection, allowing for easy, clear reading and safe use

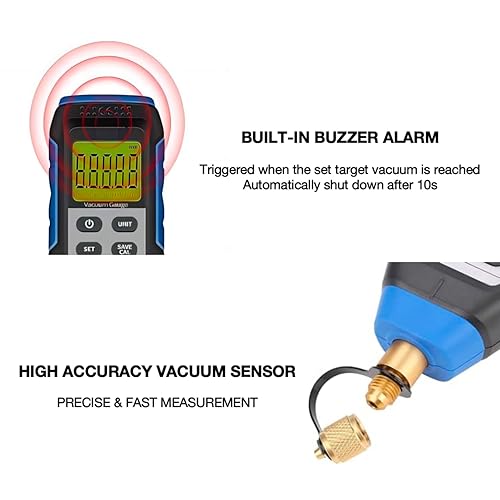

Digital vacuum gauge adopts high-accuracy sensor, ensuring precise and fast measurement, built-in with a 90dB buzzer that will be triggered when the set target vacuum is reached and will automatically shut down after 10s

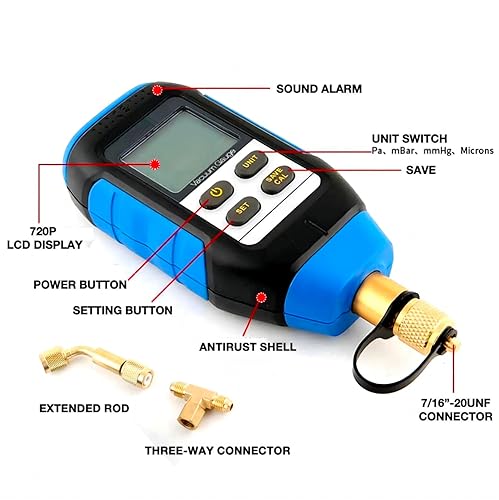

Digital vacuum gauge features a standard 7/16”-20UNF connector, coming with a three-way connection and an extended rod, providing increased compatibility, flexibility and efficiency

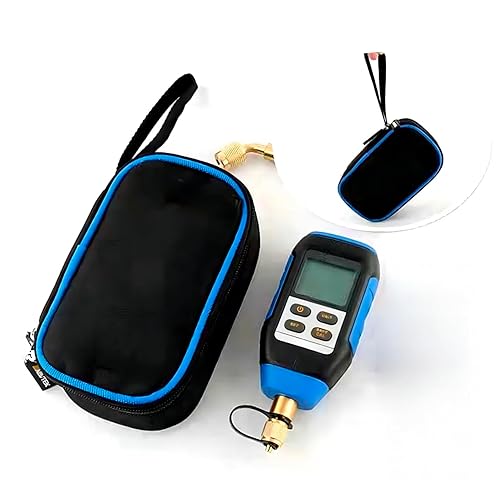

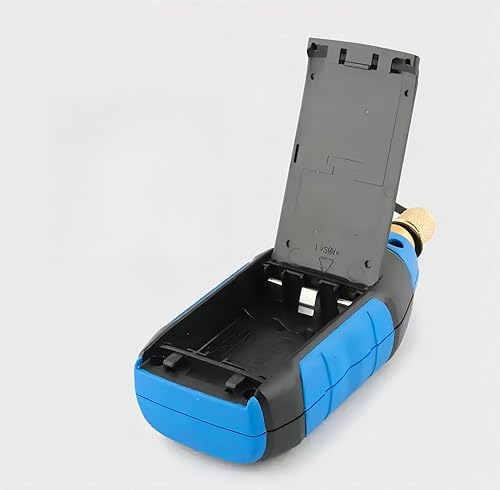

Digital vacuum gauge is compact and lightweight, powered by 3 x AA batteries (BATTERY NOT INCLUDED), with a storage bag for easy storage and carry

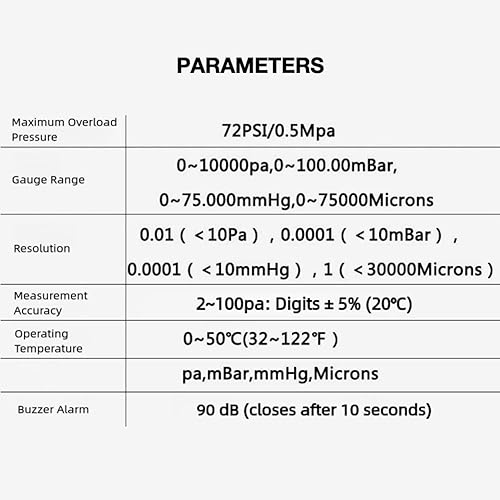

Specification

Power Supply: 3 x AA Batteries (BATTERY NOT INCLUDED)

Maximum Overload Pressure: 72psi/0.5Mpa

Resolution: 0.01 (

Measurement Accuracy: 2-100Pa (Digits ± 5%)

Operating Temperature: 0-50°C(32-122°F)

Units: Pa, mBar, mmhg, Microns

Refresh Rate: 0.5 Seconds

Connector: 7/16”-20UNF

Automatic Shutdown: 10 Minutes

Backlight: 20 Seconds

Size: 2.4x1.2x5.7in

Weight: 0.9lbs

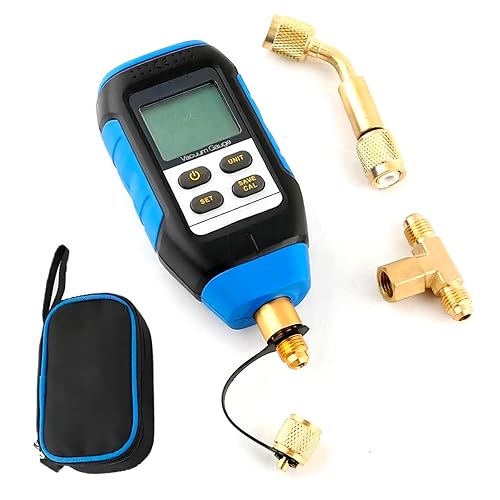

Package Content
1 x Digital Vacuum Gauge

1 x Three-way Connection

1 x Extended Rod

1 x Storage Bag
