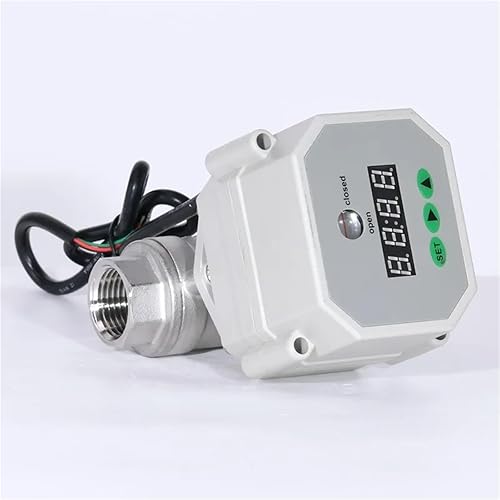

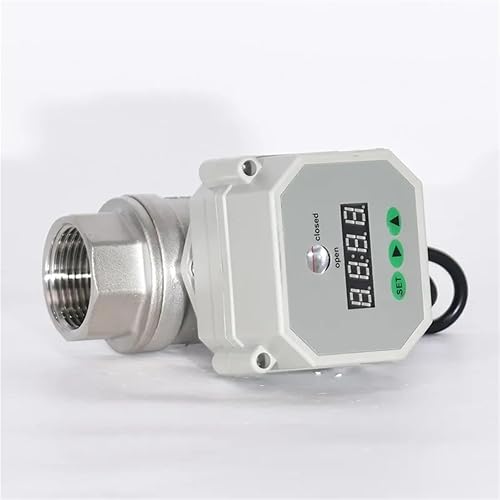

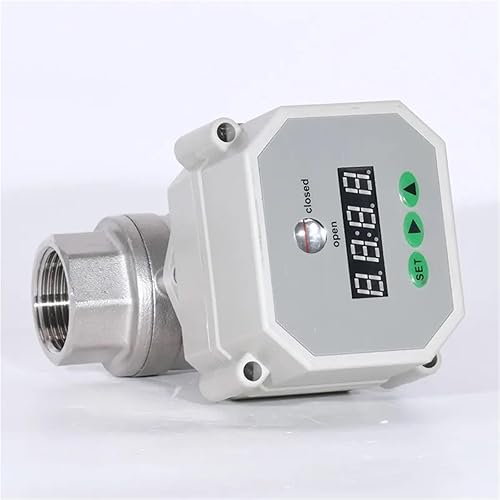

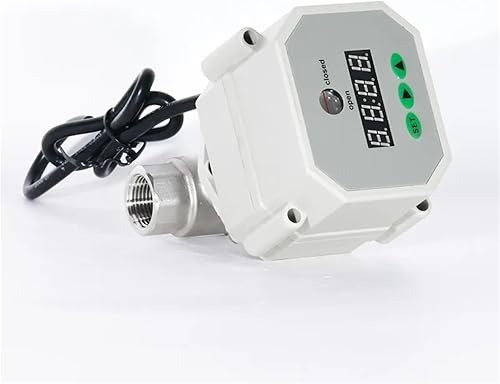

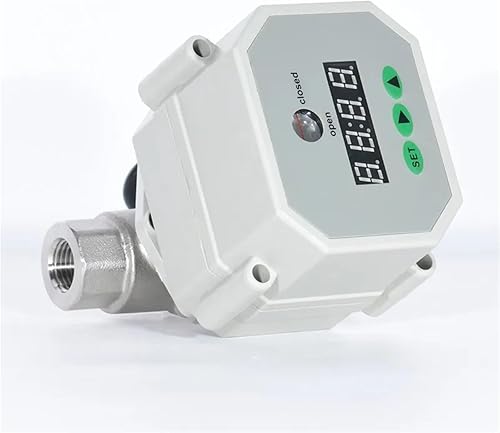

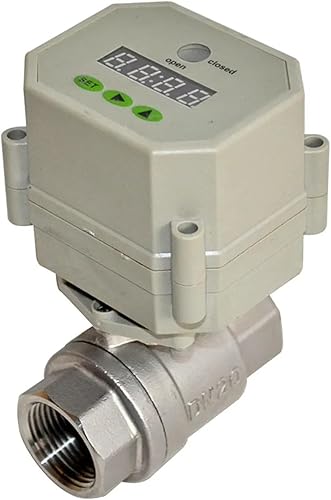

DN8-DN25 2-Way SS304 Electric Timer Drain Ball Valve Automatic Timer Flush Valve Intelligent Timer Programed Valve 1Pcs(DN15,NPT_110-230VAC)

  • Gate Valves
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Gate Valves
    Specifications:
    1. Valve Body: 2 Way NPT/BSP 1/4''-1'' DN8-DN25, SS304 Valve body.
    2. Rated Voltage: 9-24VDC/AC, 110-230VAC
    3. Working current: 500MA
    4. Open/close time: 7S
    5. Life time: 70000 times
    6. Max. torque force: 4Nm
    7. Cable Length: 0.5m
    8. Maximum working pressure: 1 MPa
    9. Environment temperature: -15-50
    10. Liquid temperature: 2-90
    The time for valve open: 0H:0M:0S -- 99H 59M 59S
    The time for valve closed: 0H:0M:0S--99H 59M 59S
    NC or NO : Normally Closed
    Structure : Ball
    Port Size : DN8-DN25
    Media : Water
    Material : STAINLESS STEEL
    Temperature of Media : 2-90
    Pressure : Max.1.0MPa
    Power Source : DC
