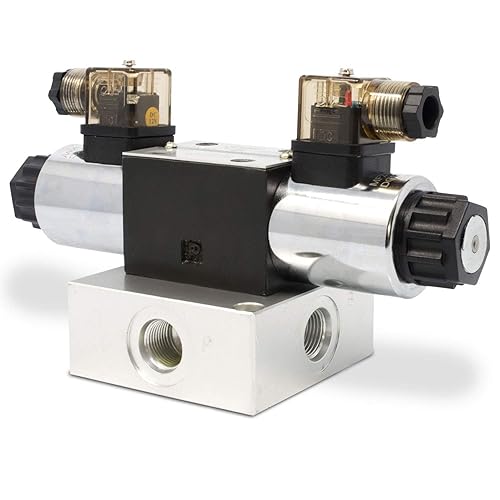

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 15 GPM (A Spool, Controls Double Acting Cylinders, 12 Volt)

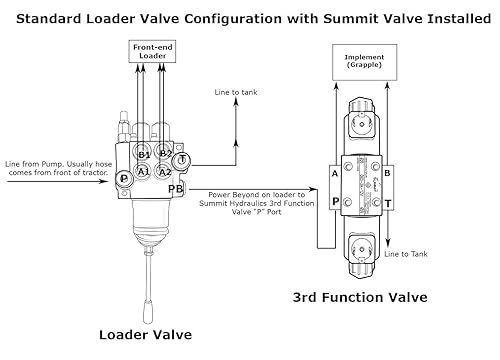

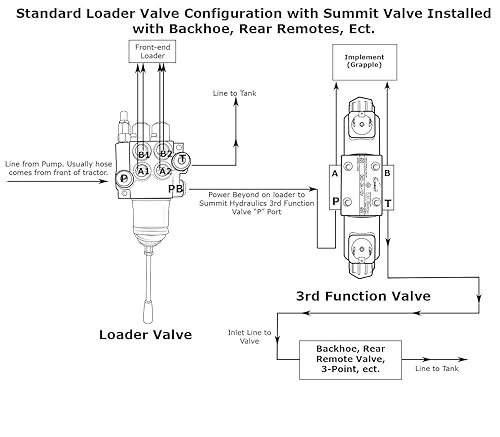

This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a single station, open-center, series configuration setup.

A Spool (Controls Double Acting Cylinders)

• All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
• A and B ports are closed to Tank in neutral position
• 12 volt

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated

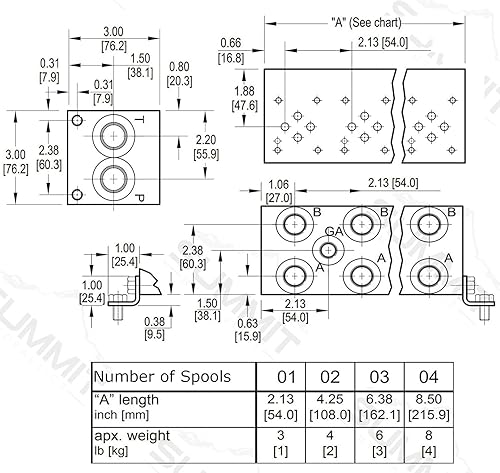

• #8 SAE O-Ring ports ensure solid seal and prevent blockages
• Valve uses DIN connections for great functionality

Solenoid Specifications:

• Nominal Voltage Tolerance +/- 10%
• Power Rating: 37 Watts
• Amps: 3.08
• 100% Duty Cycle.
• 12 volt
