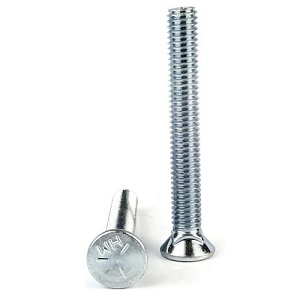

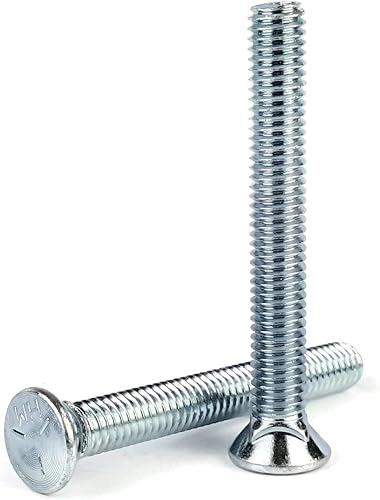

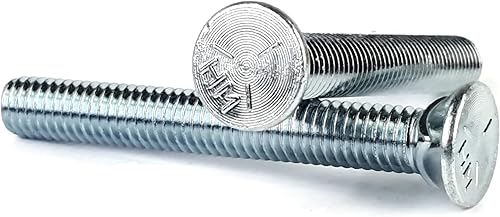

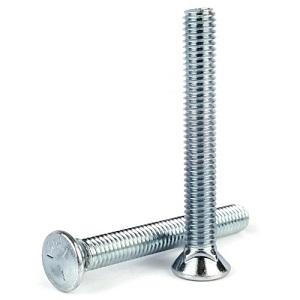

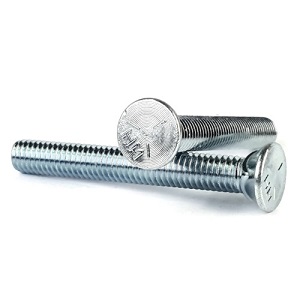

Flat Head Zinc Plated Grade 5 Plow Bolt 3/8'-16 x 3' Qty 100

Flat Head Plow Bolt - Zinc Plated Steel

• Fully threaded down to the square section beneath the head which grips into the part being fixed
• Commonly used in heavy-duty equipment to provide a smooth head surface

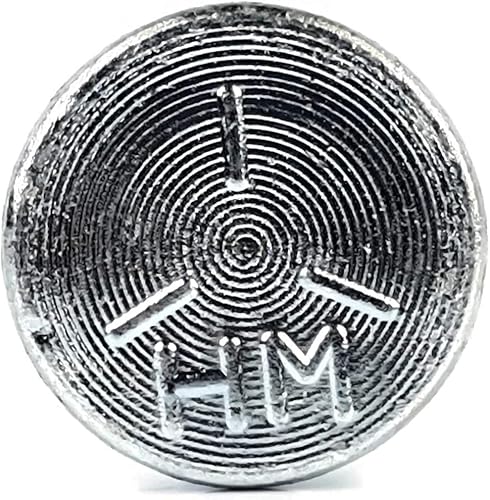

• Features non-protruding #3 flat head for a finished look
• Known for attaching the cutting edge of a plow to the plow blade, such as on a snowplow, grader, or bulldozer
• Zinc plated grade 5 steel is valued for its strength and durability, and the zinc plated finish offers an extra layer of corrosion resistance

Description

Plow bolts are designed with a short square countersunk section beneath the head of the bolt. This square section is used to prevent spinning while being fastened by a nut. Plow bolts are commonly used on plows and other heavy-duty equipment. These bolts received their names from their use, attaching the cutting edge of a plow to the plow blade. Plow bolts are stronger than standard bolts making them the ideal choice for heavy machinery.

Plow bolts are like carriage bolts but have a flat head that sits flush once installed. They have this flat head because they are commonly used where a domed head would be exposed. The flat head deters wearing and allows the bolt to last longer on the scouring surface (area where the head of the bolt would be exposed to high wear).

Product Specifications

• Material: Grade 5 Steel
• Finish: Zinc Plated
• Head Style: Flat
• Head Diameter: Max 0.708 - Min 0.671
• Head Height Max: 0.312
• Thread Diameter: 3/8"
• Thread Size: 3/8"-16
• Thread Direction: Right Hand
• Thread Type: UNC Coarse
• Sizing: Diameter - Thread Pitch x Overall Length
