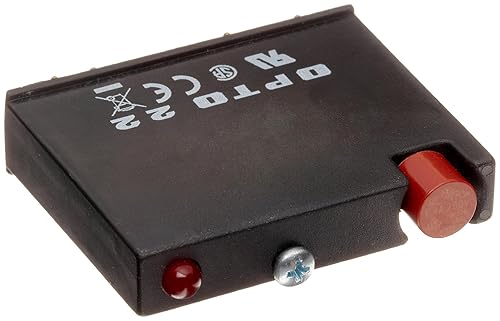

G4OAC5 G4 AC Output, 12-140 VAC, 5 VDC Logic, 4000 Vrms I/O Isolation, 12 mA Logic Input Current
- 4000 Vrms optical isolation; built-in LED status indicator
- Logic levels of 5, 15, and 24 VDC; removable fuse
- Current rating: 3 amps at 45 degree C; UL motor load rating: 1.5 amps
- Ability to withstand one-cycle surge of 80 amps
- Operating temperature: -30 degree C to 70 degree C
Quantity
-
Detail
Opto 22’s G4 AC output modules are used to control or switch AC loads. Each module provides up to 4000 volts of optical isolation (transient) between field outputs and the control side of the circuit, and each features zero voltage turn-on and zero current turn-off. This AC output module is equivalent to a single-pole, single-throw, normally open contact (Form A, SPST-NO). Typical applications for AC output modules include switching loads such as AC relays, solenoids, motor starters, heaters, lamps, and indicators.
IEC 950: 1991-09, 89/336/EEC, Canadian Standards Association, Underwriters Laboratory
-
