Gondola Shelving Lighting kit (4, 48')


  • TITATEC Gondola Shelving Lighting kit with LED Ligh Bars, Power track, LED driver and accessories suits for Super Market Retail Display Shelves via magnets to fit under Shelf
Quantity
ADD TO CART
BUY IT NOW
  • Detail

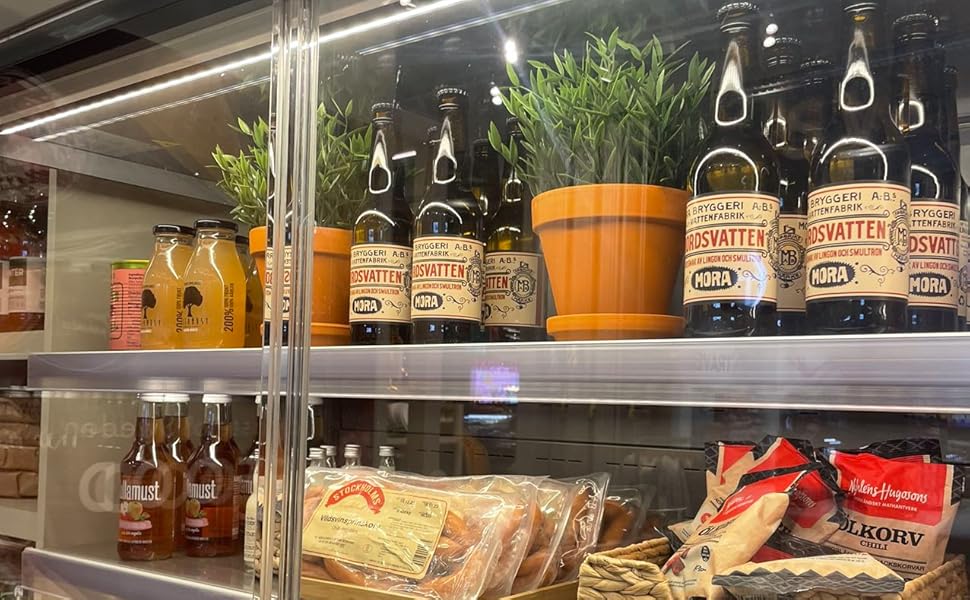

    Lights up the retail gondola shelving

    The result of lighting gondola

    Specification of the products and after sold terms

    Retail Store Using This Gondola shelving lighting fixture for Super Market, Retail store, Liquor or Snack Store, Gasoline Station Store, Fast moving merchandiser, Bakery, Wall shelving system, Gondola shelves, Shelf flat, Under cabinet, etc.

    This gondola shelving lights kit includes total 18pcs parts:

    8 PCS Aluminum profile bar which makes of LEDs,36"width size and 48" width size available, all with 600mm Length wire connector .

    1 Set 50W( for 36"width size) or 80W(for 48"width size) Mean-well Brand transformer(UL listed) kit,

    4 PCS 500mm length ultra thin Power Tracks(Total 2meters length suits for 74" height gondola easily),

    2 PCS Power Track Connectors,

    1 PCS DC output connector with 1000mm length wire,

    1 PCS Double PT19 connector with 500mm length wire,

    50000 hours Lifetime This led shop lights gondola shelving lighting fixture has over 50,000 hours lifetime safely in using, Stock in California US, drop and ship the new item to replace free in validity period .

    Before and After the gondola shelving lighting

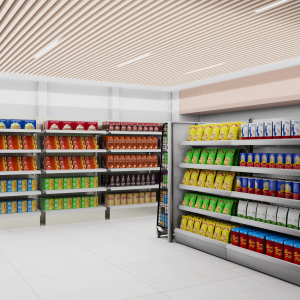

    Before lights

    Before

    Make a demo to light up one shelving to see result at first.

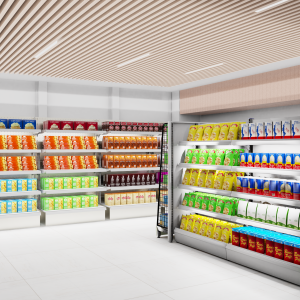

    After lights

    After

    Lights up one section gondola shelving so that the cosmetic looks organized and sells fast.

    Lights up the all shelving

    Lights up the grocery shelving

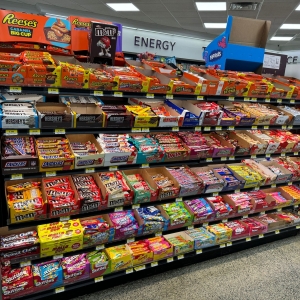

    Lights up merchandases (like candy) on the shelving so that sells fast to avoid out of the period of validity.

    How to install the gondola shelving lighting fixture?

    step 1

    Step 1:Inside the power track to the gab between the shelves and back panel of gondola

    Don't remove the adhesive before make sure the position to stick the Power Track

    Step 2

    Step 2:The top shelf doesn't need to light up normally, so the power track should be set below the top shelf.

    It is not necessary to disassemble the shelves when fit the power track.

    Extension the power track

    Step 3: If lights up more than 74"height gondola, the power track needs to extend via connector or double PT19

    This image is only for reference how to extend the length of Power Track.

    PT19 connecting to the power track

    Step 4:When the PT19 connector from LED bar matches the power track ,it should be turned 90 angle so that snapping to powertrack steadily and safety in running.

    All the PT19 connectors came from LED Bar should be the same direction on the Power Track

    There are 2 ways to install the Power Track

    Install the LED Bar

    Step 5:LED light bar under the shelving via strong magnets

    The LED Bar under the shelving via magnets hidden wires so that everything looks organized.

    On the back panel

    Step 6:The one way is to stick on the back panel of gondola

    After fitted all, connect the transformer and make sure all connecting correctly before turn on the power switch.

    Power track on upright side

    The second way is to stick on the side of upright of gondola

    This way is very easier, but the wires will appear.

    all image guide

    Reference fitted Image

    One gondola shelving lighting kit including all the connectors, Plug and Play,No required electrician.

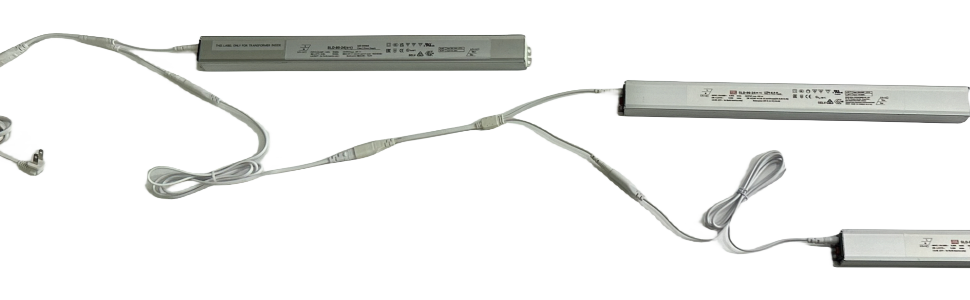

    How to extension transformer only one outlet

    How to extend powering up by one AC outlet in retail shop?

    In many cases, there are limited outlets in retail stores then how to extend powering up the gondola lighting fixtures? Solution available here!

    Using C7C8 Extension cable Kit (ASIN:B0CH3MYNBG) can power up 5pcs sections gondola shelving by 1 AC outlet.

    • Questions & Answer:
    • 1,Questions: I wanna light up my shop shelving but I don't know how to do?
    • A: The first, make sure what your gondola shelving size is, most are 36" and 48" width then you can choose the suitable options online. If other size width, please let me know， I will offer the other options.
    • The second, usually each 54"height gondola has 5 shelves, the under 4 shelves need to light up so TITATEC lighting fixture kit has 8 pcs LED bars，4pcs power tracks and all connectors so that can light up 2 sections which has 5 shelves.
    • At last , if the gondola height is 74" or higher and has 8-9 pcs shelves, then one kit TITATEC fixture can light up all directly.
    • 2,Questions: I don't know how to fit?
    • A: There is a guide installation instruction with products package and videos online, anyway I can assist in US by phone or WhatsApp.
    • 3, Questions: I run a retail store, not only gondola but wooden liquor shelving or the other shelves like hangers, grid panels and showcase, etc, what should I do?
    • A: Good questions, the gondola lighting fixture is a nearly standard system, install easily and popular in retail industry, I suggest that at first set a demo section to see the lighting result then lights up the other. If you need to light up more shelves, please send me some photos and the size, I have some advices and will offer the customized solution basing on my 20 years lighting experiences in retail field.
    • 4,Questions: I need to purchase mass, any discount available?
    • A :Yes, if the demo runs well and the result is good, discount depends on the quantity, contact me and talk to how to deal.
    • 5, Questions: How is the gondola shelving fixtures after sold?
    • A: That fixture has 50000 hours lifetime if safety in using, stock in California US, replace the new item free in validity period.
