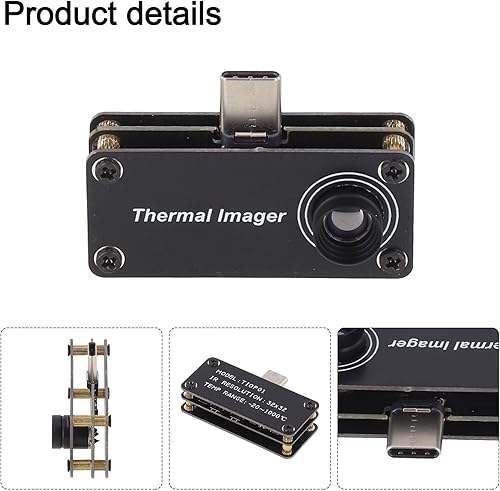

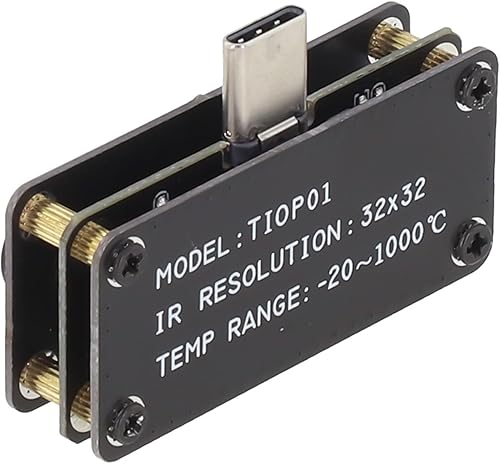

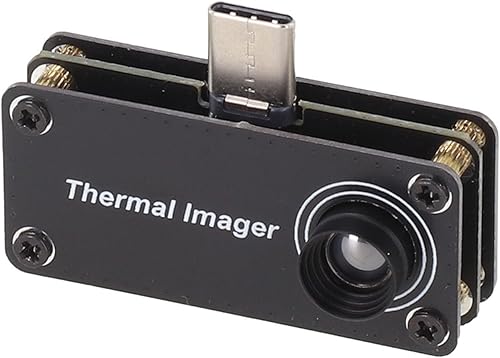

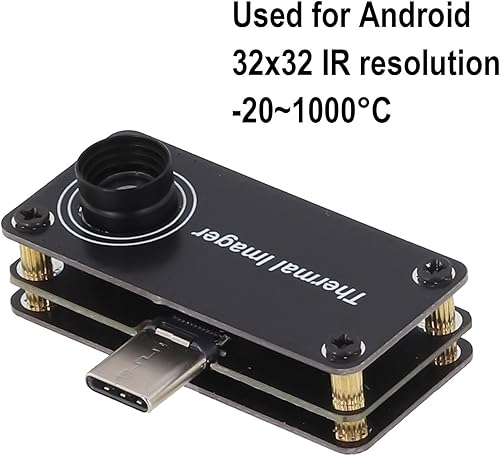

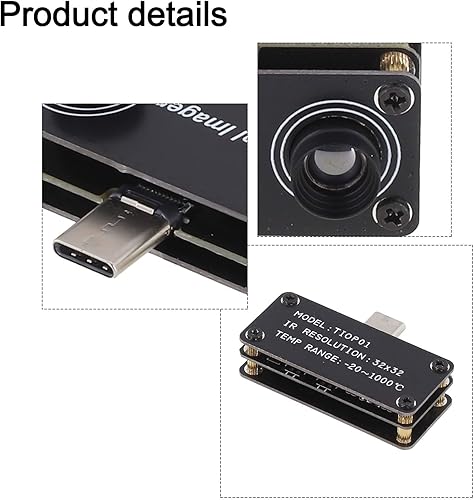

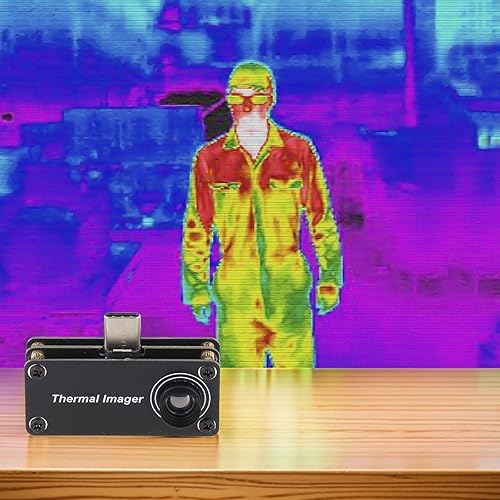

High Resolution Thermal Imaging Camera For An-droid Compatible Infrared Camera, High Resolution Thermal Imaging Device
- [ADVANCED THERMAL IMAGING]: High-resolution 32x32 thermal sensor captures detailed heat signatures. With a temperature range of -20°C to 1000°C and ±3°C accuracy, this infrared camera offers professional-grade thermal detection for various applications.
- [COMPATIBILITY]: Designed for An-droid devices running versions 8-12. Simply connect via Type-C interface to transform your smartphone into a powerful thermal imaging tool. Supports local image storage for convenient analysis.
- [USER-FRIENDLY FEATURES]: Intuitive app interface with adjustable color palettes, temperature scales, and emissivity settings. Easily view maximum, minimum, and center temperatures on-screen. Landscape mode available for flexible device orientation.

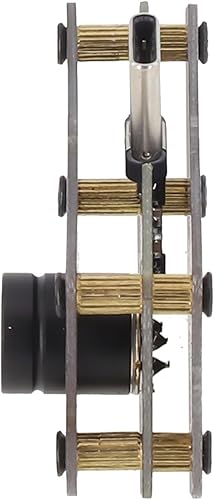

- [COMPACT AND PORTABLE]: Measuring just 44 x 29.2 x 19mm, this lightweight thermal imager is perfect for on-the-go inspections. Its 33° viewing angle and 5 FPS frame rate provide smooth, real-time thermal imaging in a pocket-sized device.
- [VERSATILE APPLICATIONS]: Good for home inspections, troubleshooting, HVAC diagnostics, and more. With 5 color palette options and a wide operating temperature range (0-50°C), this thermal camera adapts to diverse environments and detection needs.
Quantity
-
Detail
Features:
* Menu in the upper right corner of the main interface: select the APP language, currently supports English and Simplified Chinese.
* Maximum temperature, minimum temperature(mintemp), center temperature(Centem): represent the temperature values corresponding to the current measurement screen.
* Landrevert: The mobile phone layout is reversed. You can rotate the phone to hold it so that the thermal imager is above the phone. Note that some mobile phone models have an automatic rotation function.
* ColorPalette: refers to the pseudo-color plate scheme used by the thermal imaging screen, which is convenient for use in different scenarios.
* PaletteScale: refers to automatically following the upper and lower limits of the current screen temperature or manually set values, that is, the upper temperature limit(PaletteUpper), the lower temperature limit, the highest temperature and the lowest temperature corresponding to the current color scheme.
* Emissivity: If you only look at the temperature distribution on the of the object and do not need to measure the absolute value of the temperature, you can use the default emissivity. If you need to measure the temperature of the object more accurately, you need to check the emissivity of the object material.

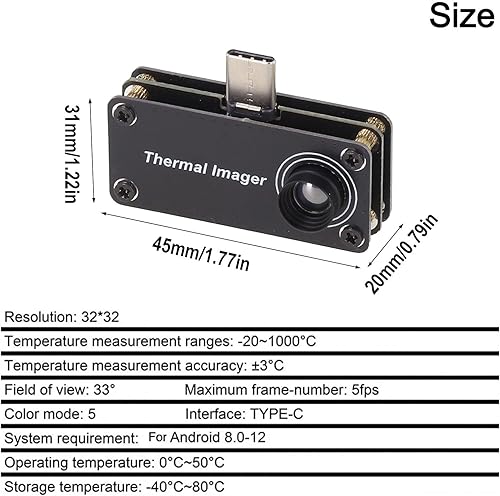

Specifications:
name: Thermal imager
Material: PCB
Size: 44 29.2 x 19mm
Color: black
Differential rate: 32×32
Interface: Type-C
Mobile: for for Android 8-12, supports local image storage
Viewing angle: 33°
Maximum frame rate: 5FPS
Number of color plates: 5
Temperature measurement accuracy:±3℃
Temperature measurement range:-20～1000℃
Working temperature: 0-50℃
Storage temperature:-40℃～80℃
Package contents:
1 x Thermal imager
1 x Instruction manual -
