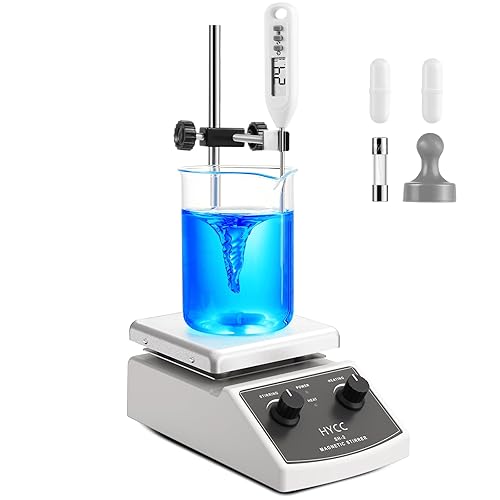

HYCC Magnetic Stirrer Hot Plate Max 520℉, 100-2000RPM Hot Plate with Magnetic Stirrer, 2000mL Magnetic Hotplate Stirrer, Magnetic Stirrer w/Thermometer, Magnetic Stir Bar, Stir Bar Retriever
- Magnetic stirrer hot plate with Thermometer, Teflon coated Magnetic Stir Bar, Stir Bar Retriever, support stand with adjustable thermometer holder.
- 100~2000 RPM speed range ,hot plate with magnetic stirrer easily adjusts to project needs ,It can meet various experimental needs.
- Max Temp: 271°C/520°F,the magnetic hotplate stirrer can stir and heat at the same time.

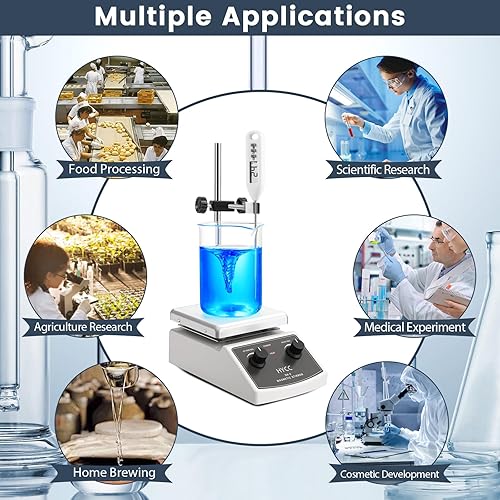

- The magnetic stirrer can be used in the laboratory, classroom, workshop ,home brewing, wine making, yeast mixing, chemistry, aromatherapy, ,etc.
- The professional magnetic stirrer hot plate has undergone strict quality inspection and can operate stably for a long time.
Quantity
-
Detail
ABOUT MAGNETIC STIRRERS:

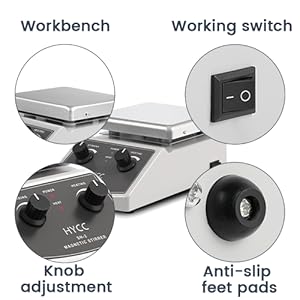

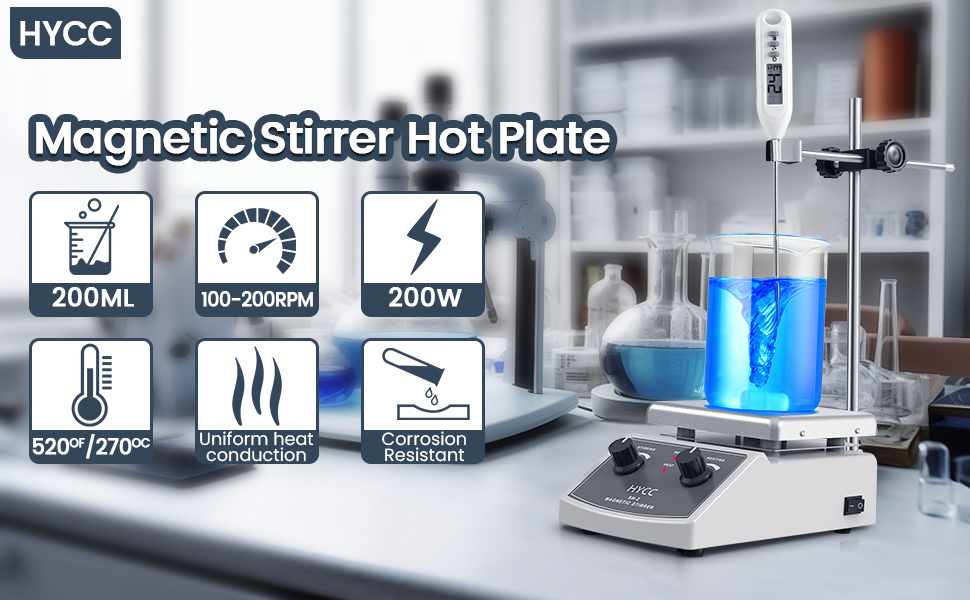

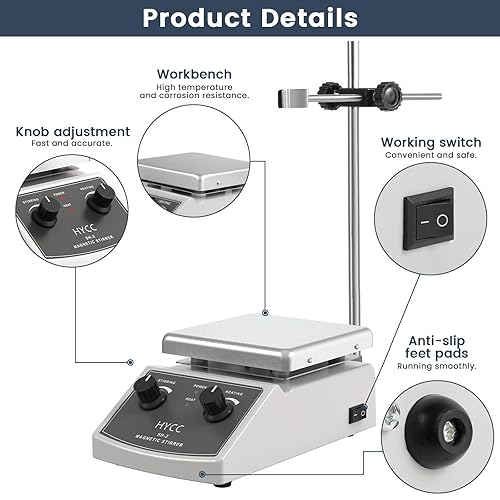

This economical SH-2 model Magnetic Stirrer Hot Plate independently controls temperature and stirring speed. The 120 ×120mm Stirring Hot Plate has a 180W heating power and 520°F (271°C) maximum temperature. The magnetic stirrer is adjustable from 100 to 2000 rpm. A support stand with an adjustable thermometer holder is also included. Suitable for industrial, agricultural, medical and health, scientific research institutions, colleges and universities laboratory liquid mixing heating.

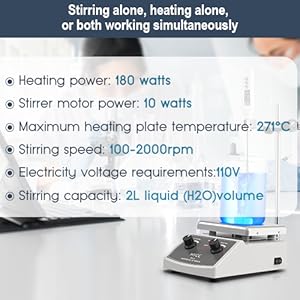

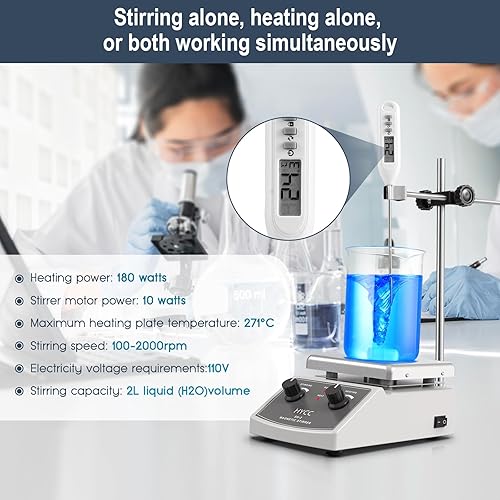

Specifications:
- Heating power: 180 watts
- Stirrer motor power: 10 watts
- Maximum heating plate temperature: 271°C
- Stirring speed: 100-2000 rpm adjustable
- Electricity voltage requirements:110V for US/CA/MEX
- Stirring capacity: 2000ml liquid (H2O) volume
- Heating plate dimensions: 120mm x 120mm
- Heating plate material: anodized aluminium
- Overall dimensions (LxWxH): 210mm x 125mm x 90mm

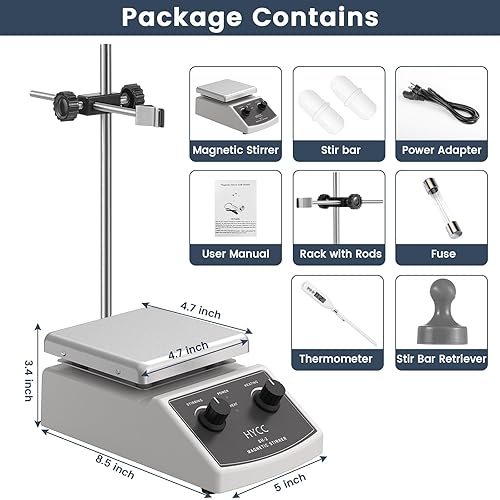

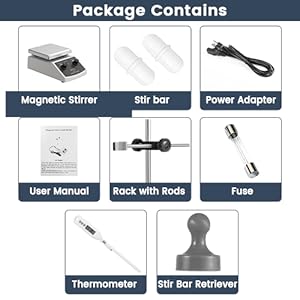

The packing includes the following items:
Main unit x1
Power Cable x1
Stirrer bar x2
Stir Bar Retriever x1
Digital Thermometer x1
User Manual x1
Rack with Rods x1
Fuse x1
How do I fix it if the indicator is not lit when the power is turned on?
1.Please check if your voltage is suitable and it is 110V±10V.
2.Please inspect whether motor when power changes and the motor is overloaded. If the fuse is damaged, replace it with the fuse supplied together with the machine or a proper one of the same specification you can find.
Power safety

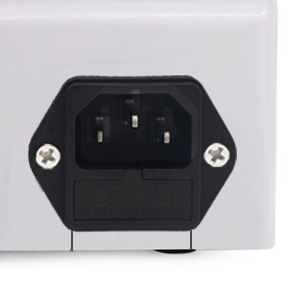

Magnetic Stirrer has a voltage of 110 watts, Turn off the on/off button before using it and connect the power cable. There is a fuse built into the underside of the power connector so that you can always replace it if it short-circuits.

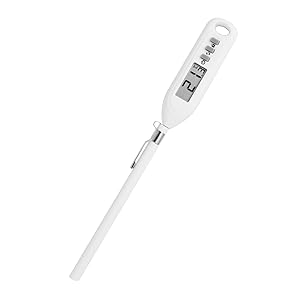

Digital Thermometer
●Automatic shutdown in 10 minutes ON/OFF.
●Conversion from centigrade to Fahrenheit ℃/℉.
●The temperature range: -50℃~300℃(-58℉~572℉)
Temperature accuracy: ±1℃/1℉.
●Please don't insert thermometer too deeply into solution during
stirring to avoid interfering with magnetic stirring.
Magnetic Stir Bar and Magnetic Stir Bar Retriever

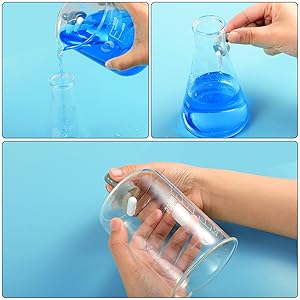

The Stir Bar Retriever follows the lines on the outside of the container to help you easily pick up the stir bar from the bottom of the container. Does not get wet. The perfect accessory for a magnetic stirrer.
The package contains 2 magnetic stirring bars (9*28mm) + 1 stirring bar retriever
Can I heat liquid to boiling condition?
It's difficult to perform stirring and heating simultaneously for the stirrer with heating power at 180W only for the stirred liquid keeps losing heat. As a result, we suggest that stirring shall be stopped when heating is performed, or you can get boiling liquid by heating and stirring such liquid in a sealed container.
-
