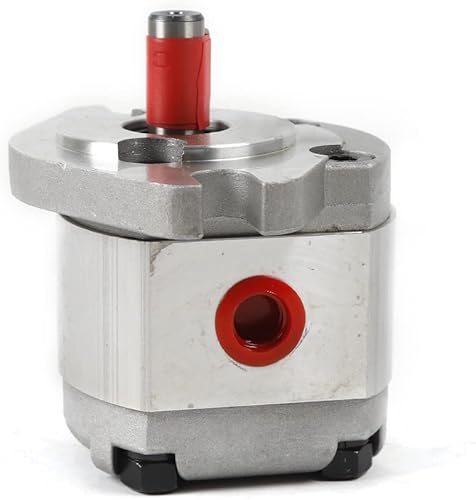

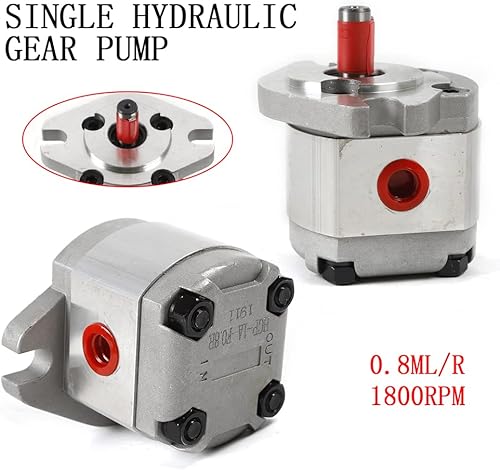

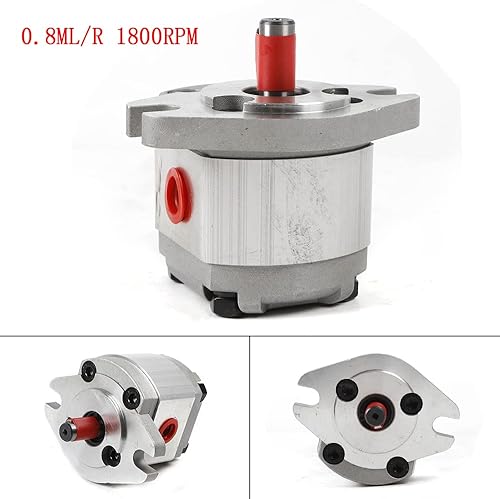

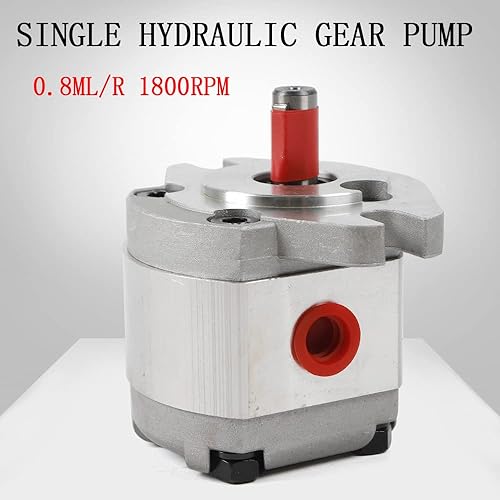

Hydraulic Gear Pump, 0.8ML/R High Pressure Single Hydraulic Gear Pump, 4300rpm 21MPa Aluminum Hydraulic Oil Gear Pump, Hydraulic Fluid Gear Pump
- 【POWERFUL POWER】: The micro gear pump technology ensures high-pressure output with a maximum output pressure of up to 25 bar and a maximum speed of 4300rpm, which can meet various needs.
- 【STABLE PERFORMANCE】: The product adopts SP series gears with alloy steel hardened gear transmission, which can ensure a smoother transmission process. In addition, the SP series gears have low fluctuation, high pressure, and low noise, which makes the performance of the product stable.
- 【STURDY AND DURABLE】: It is made of high-quality aluminum alloy, with a strong structure and not easy to rust, suitable for your long-term use.
- 【THREADED INLET AND OUTLET】: The inlet and outlet connections are threaded, allowing for tighter connections and less loosening.
- 【LIGHTWEIGHT AND PORTABLE】: The product is designed to be compact, measuring only 3.98* 3.2* 2.66 inches and weighing only 2.09 pounds, making it easy to carry and suitable for a variety of outdoor applications.
Quantity
-
Detail
Description
It is a high-quality liquid conveying equipment with micro gear pump technology, which can provide efficient and stable flow and pressure up to 25MPa and 4300rpm and can be widely used in many fields such as automobile machinery, hardware machinery, light industry machinery, and textile machinery.
Application
This hydraulic gear pump can be used in a variety of scenarios, such as conveying, spraying, cleaning, irrigation, etc. It is a multifunctional liquid conveying equipment. It can convey various industrial liquids, such as paints, coatings, chemicals, etc., and is widely used in industries such as automotive machinery, hardware machinery, light industry machinery, textile machinery, etc.
Specification
Material: Aluminum Alloy, Copper
Current: 1A
Spouting Volume: 0.8ml/r
Preset Pressure: 21MPa
Maximum Pressure: 25MPa
Rated Speed: 1800rpm
Maximum Speed: 4300rpm
Minimum Speed: 1000rpm
Volumetric Efficiency: 88%
Mechanical Efficiency: 85%

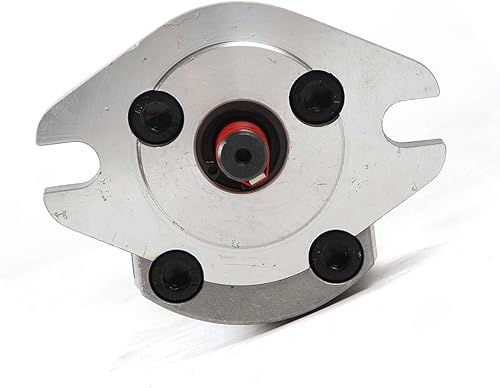

Flange Mounting Method: SAE Standard
Input Shaft Connection Type: Flat Key

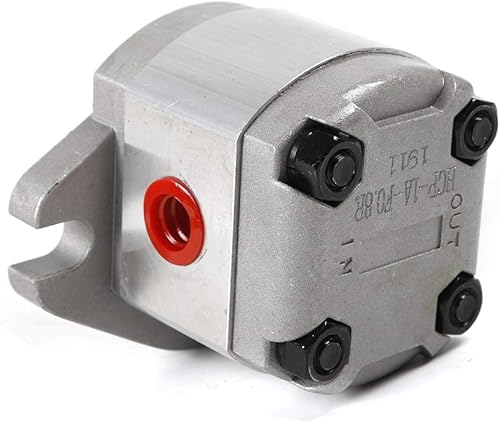

Inlet and Outlet Connection Form: Threaded
Diameter of Inlet/Outlet: PT3/8"

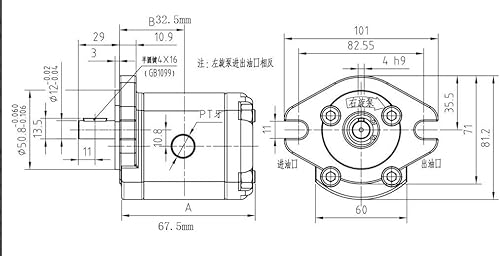

Product Size: 10.1*8.12*6.75cm/3.98* 3.2* 2.66 inches
Net Weight: 0.95kg/2.09 lb
Package Included
1* Hydraulic Gear Pump
Notes
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
-
