Hydraulic Hand Pump 2 Speed Power Pack Hose Coupler (10000 psi - 165 in3) B-700A
Quantity
-
Detail
HYDRAFOREB-700A

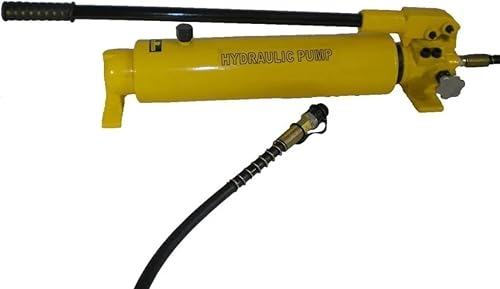

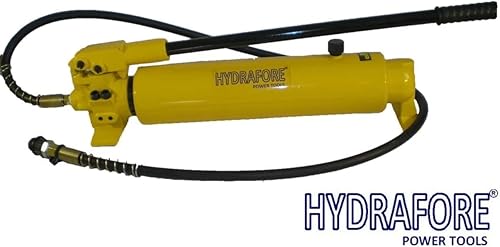

Manual hydraulic pump (10 000 psi - 165 in³)
Features introduction:
Maximum working pressure: 700bar / 10.000 psi
Two-stage hydraulic design
Steel structure
Single loop design
Economical and reliable hand pump
Characteristic:Steel structure, sturdy and durable.
Two-stage hydraulic design for increased productivity.

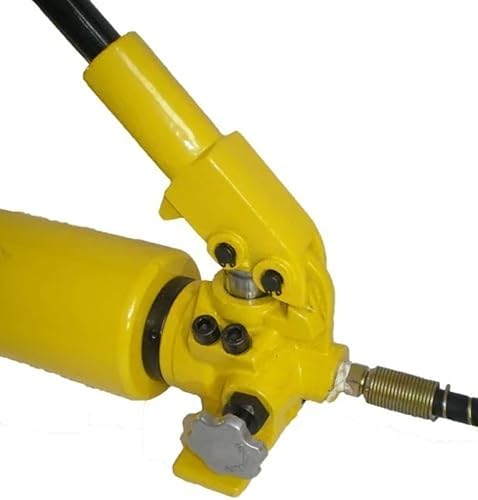

External pressure relief valve with built-in safety valve.
Convenient fuel filler design.
Equipped with 1.8 meters high pressure oil pipe;

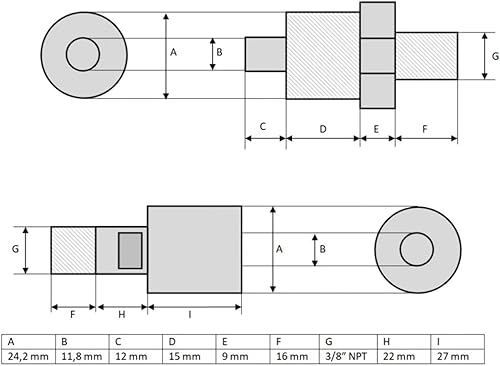

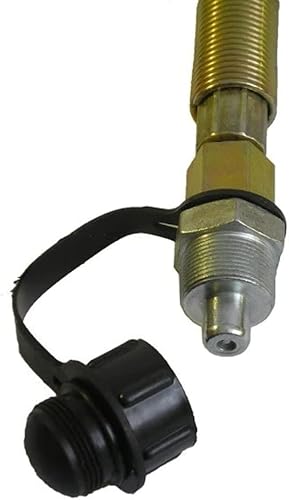

Configure the R2 3/8 quick connector and dust cap.
Technical Parameters:Model:B-700AFunction:Single acting, 2 SpeedOil output per cycle at low pressure (in3/cycle):
0.8Oil output per cycle at high pressure (in3/cycle):
0.14Maximum pressure (psi):10000Oil capacity (in3):165Weight:38,0 (lbs)Shipping volume:32x7x7 (in) -
