Jeremywell 80H Heavy Duty Roller Chain 10 Feet with 1 Connecting Link

ANSI #80H Industrial Heavy Duty Roller Chain
Pitch Size: 1.000 Inch
Length: 10 Feet
Average Tensile Strength: 14500 lb
Weight Per Foot: 2.077 lbs

Quantity

ADD TO CART

BUY IT NOW

Detail

#80 High Performance Heavy Duty Roller Chains

Roller chains are the most widely used chain in industrial equipment across a variety of industries. Here at Jeremywell, we are proud to provide high performance roller chains that meet ANSI standards and have gone through stringent process measures to deliver quality, strength and longevity.

Chain Design Features

Heat Treatment

This ensures the optimum wear life and toughness for all component parts.

Shot Peened and Ball Calibrating

Link plates and rollers are shot peened for greater fatigue strength. The ball calibrating assures maximum resistance to fatigue failure for the plate hole.

Pre-Stressing

Pre-stressing operations firmly seat the chain parts evenly distributing the working load. It accurately establishes chain length and prevents rapid elongation during the initial run in period.

Pre-Loading

Roller chains are running after final assembly, the running in of chain increase it resistance to fatigue and prevent initial elongation of the chain.

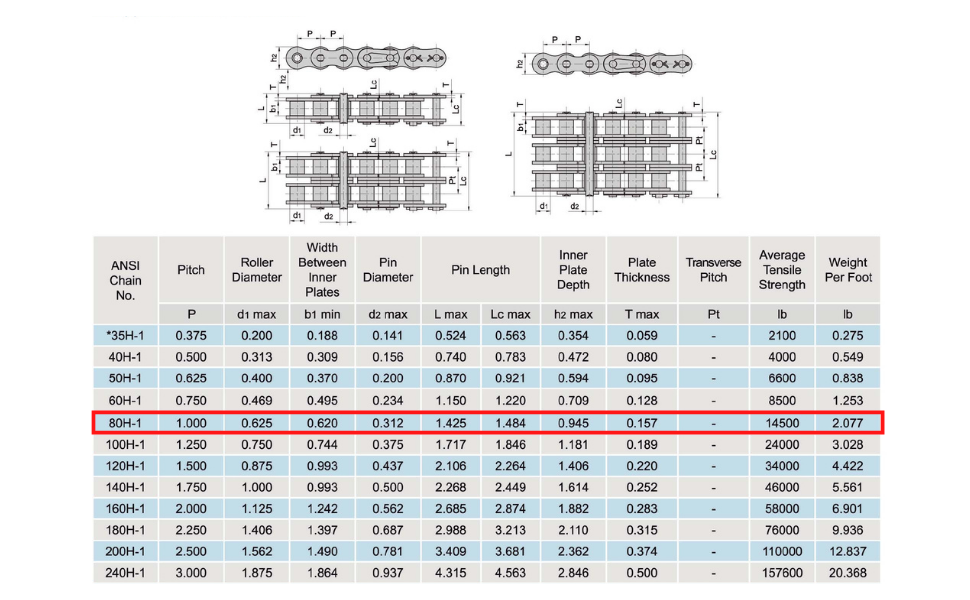

#80 Heavy Duty Roller Chain Specs

Pitch Size	1.000 Inch
Roller Diameter	0.625 Inch
Width Between Inner Plates	0.620 Inch
Pin Diameter	0.312 Inch
Pin Length L Max	1.425 Inch
Pin Length Lc Max	1.484 Inch

Inner Plate Depth	0.945 Inch
Plate Thickness	0.157 Inch
Average Tensile Strength	14500 lb
Material	Carbon Steel
Weight Per Foot	2.077 lbs
