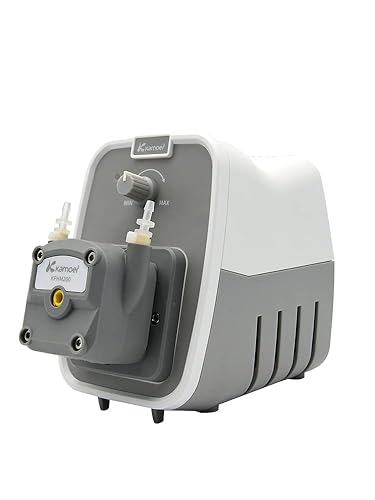

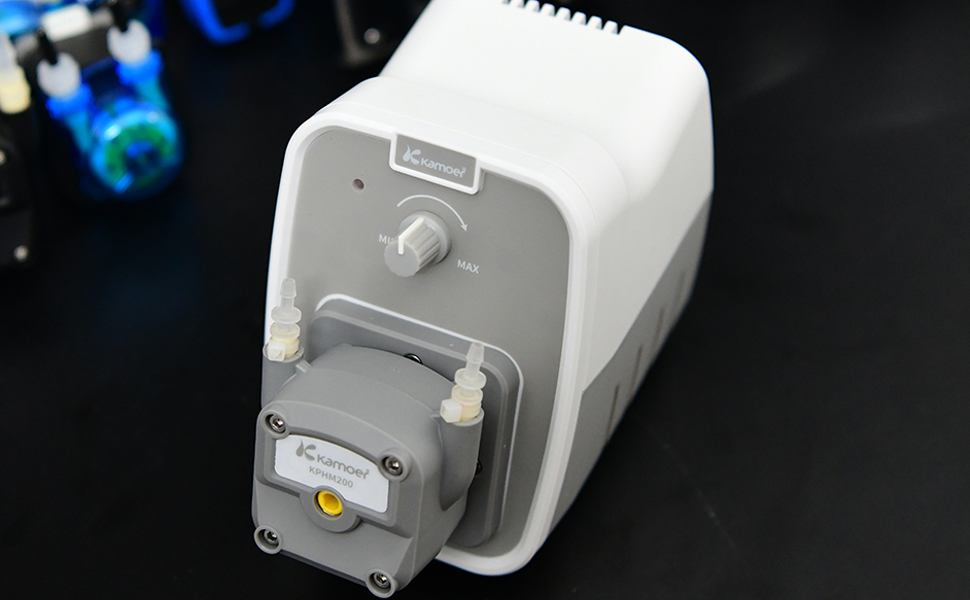

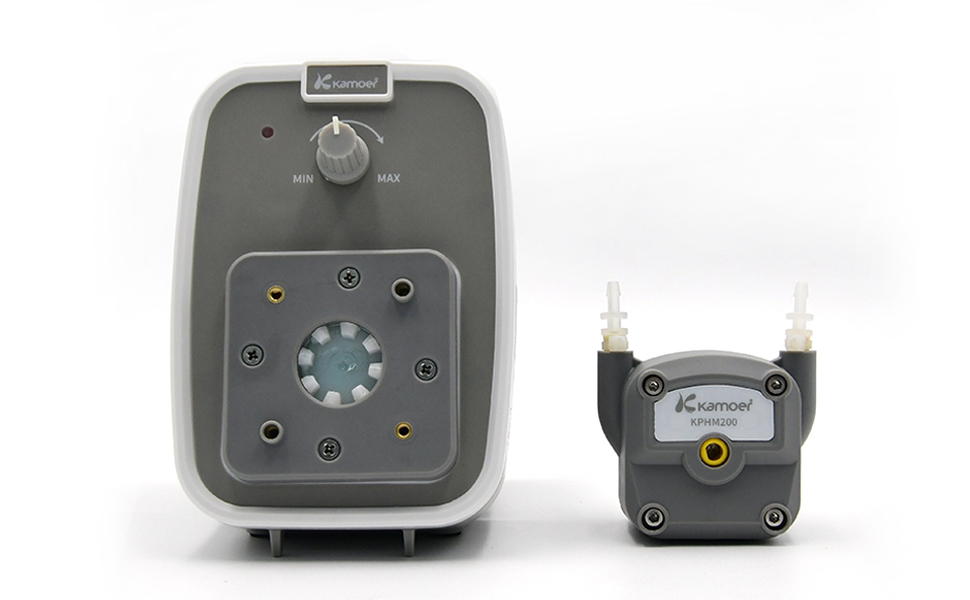

Kamoer KCP200 Automatic Circulation high Flow peristaltic dosing Pump 24v 100~200ml/min with Adjustable Flow Rate BPT 3.2 * 6.4mm


  • Voltage 24V, flow rate range 100~200ml/min, pump tube size 3.2 mm ID x 6.4 mm OD, connector type 1/8.
  • Potentiometer knob speed adjustment, easy to use, small size and low noise. The pump head contains three rotors with moderate pulse.
  • The newly designed bull head shape pump head effectively solves the problem of poor fixation and easy wear of the peristaltic pump tube during operation.
  • Imported BPT tube is used, which has good resistance to chemical substances, and the pump tube has a long service life.
  • Application: automatic fluid dispensing machine, laboratory liquid transfer, assembly line liquid addition, bonsai irrigation.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Kamoer KCP200 100~200 ml/min Automatic Circulation peristaltic dosing pump

    KCP200

    Basic Parameters

    • Flow Rate: 100~200ml/min Max

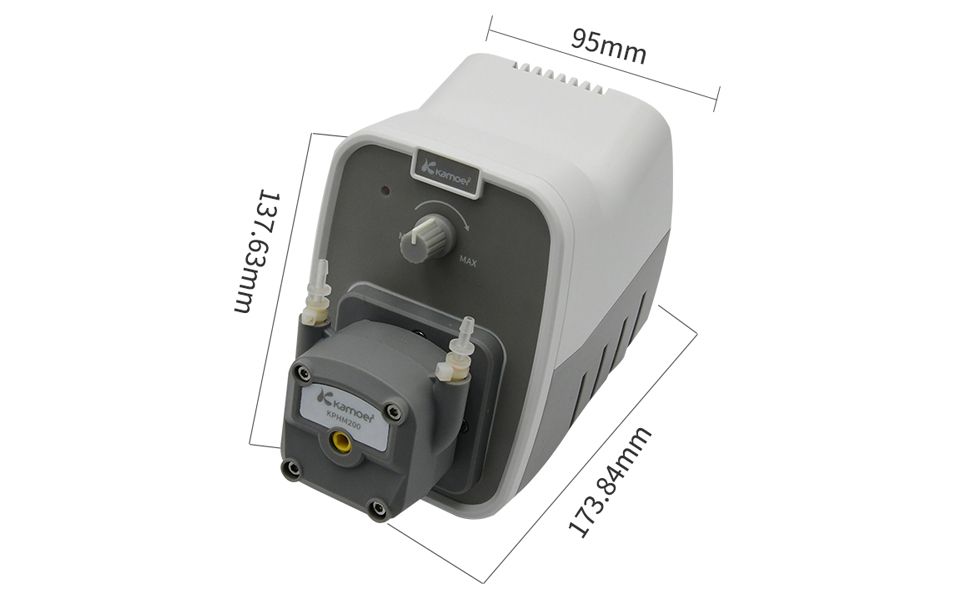

    • Size: 95x173.84x137.63 mm(L*W*H)
    • Weight: 520g without any accessory
    • Power: Input 100AC-240AC; Output DC 24V 1.9A
    • Pump Tube: BPT-B16# 3.2 mm ID X 6.4mm OD 1000H lifetime
    • Pump head： KPHM200 3 rotors
    • Tubing length: 110mm
    • Connector: 1/8
    KCP200

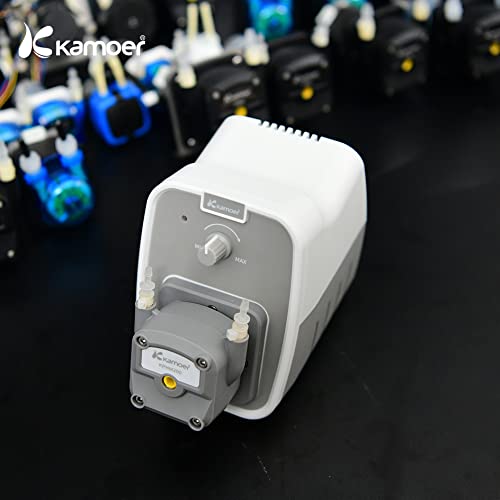

    Easy use, performance stable.

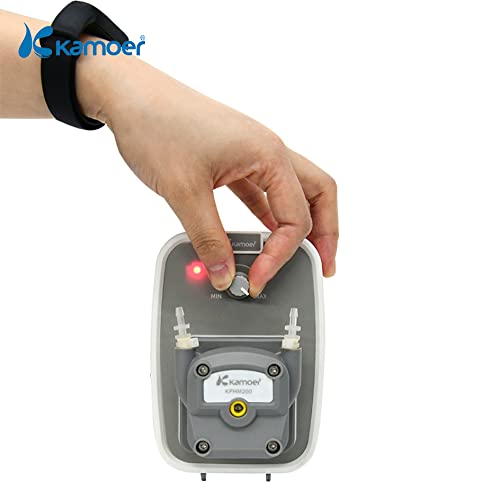

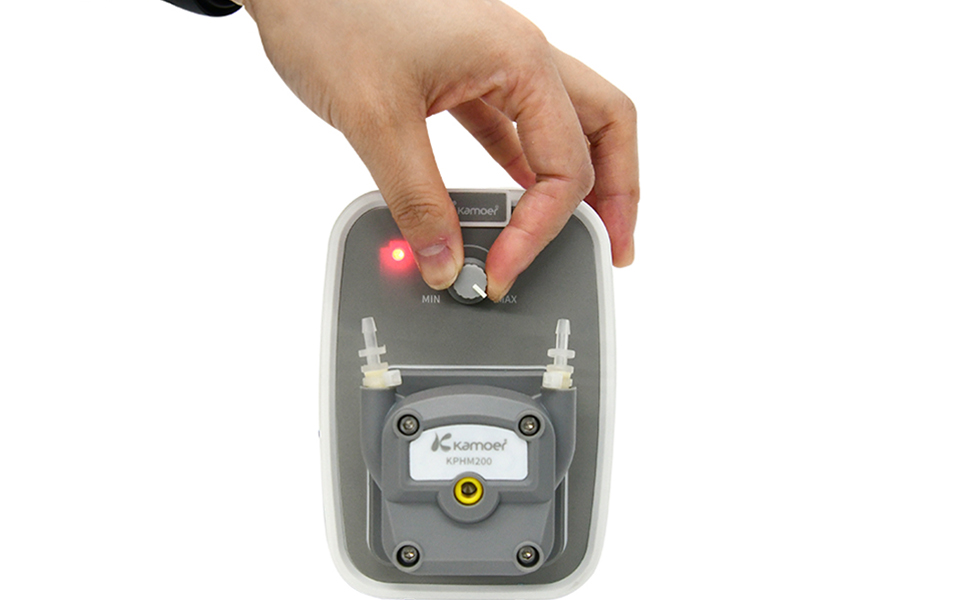

    The operation is simple, turn the knob to adjust the speed. The planetary gear is used internally to reduce the speed.

    KCP200

    NEW design:

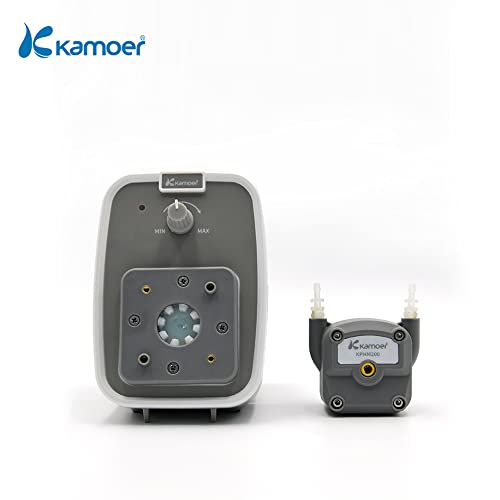

    Bull head shape pump head design, the new design can better fix the pump tube, making the pump tube more stable in the process of allowing.

    The pump head contains three rotors with moderate pulse.

    Large flow and affordable.

    The imported BPT pump tube has good resistance and long service life.

    KC2600

    Notice

    1. Harsh working environment, such as high temperature, high humidity and dust will cause premature damage to the pump or reduce the service life.
    2. Improper working voltage, easy to damage the product prematurely.
    3. Frequent start-up work can easily cause the product to heat up, leading to a reduction in the life of the pump.
    4. The use of highly corrosive media may cause damage to the internal rubber parts.

    Applications

    KCP600

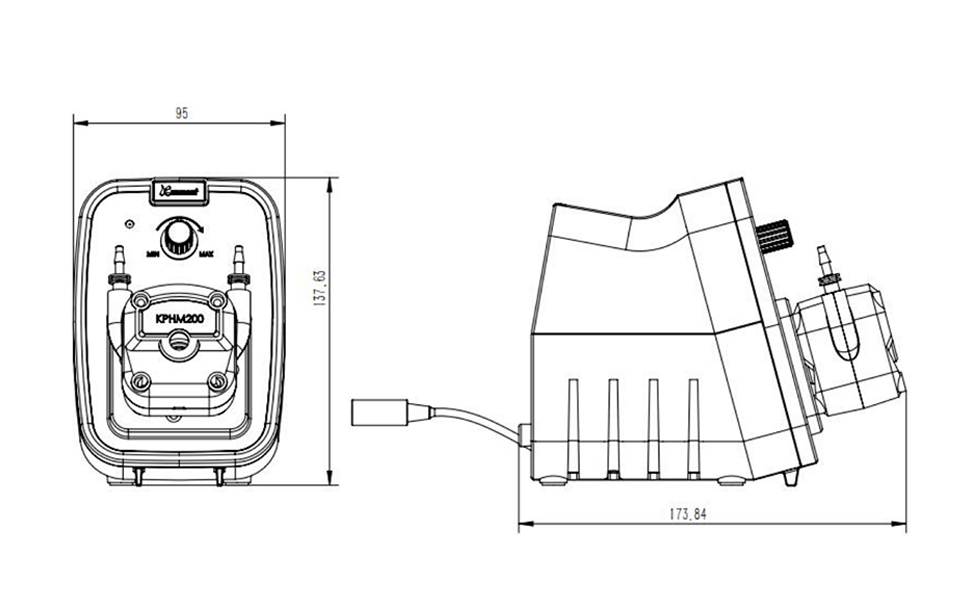

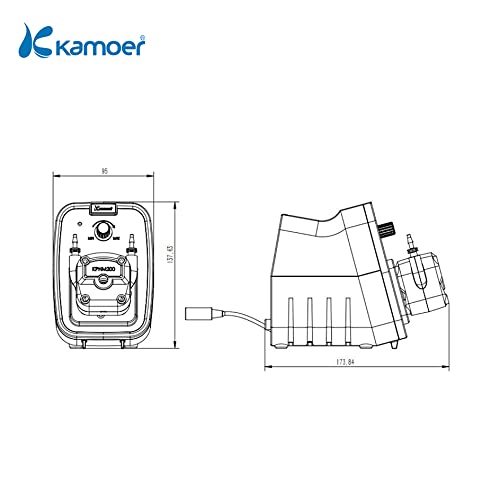

    Dimensions

    KCP200

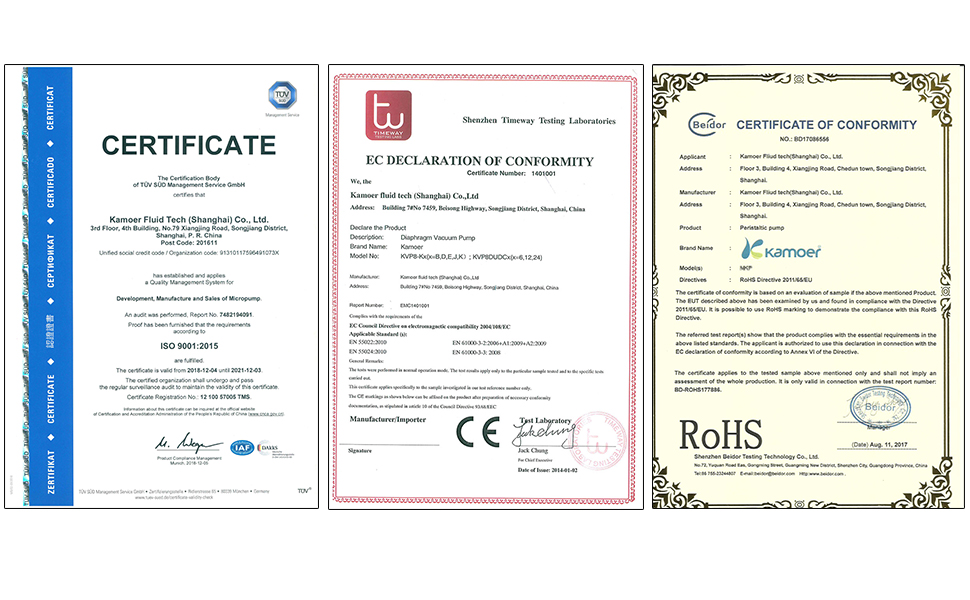

    Certifications

    certificate

    • TUV ISO9001 quality management system certification (German TUV safety certification)
    • CE certification (passed electrical safety certification)
    • ROHS certification (through the use of hazardous substances in the product testing)
