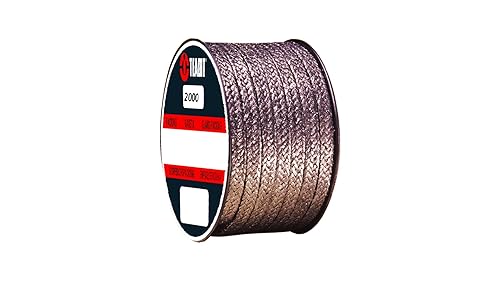

Lamons Sterling Seal and Supply (STCC) 2000.187x1 Teadit Style 2000 Braided Flexible Graphite Packing, 3/16' CS x 1 lb. Spool
- SSS Style 2000 packing is manufactured from high purity flexible graphite that is expanded and formed into a braid-able yarn and then braided without binders or wire reinforcement
- SSS 2000 finished product retains all the inherent benefits of flexible graphite: heat resistance, chemical inertness, low friction, self lubrication, and ready conformability
- The outstanding properties of SSS Style 2000 Packing make it a truly multi-service packing capable of a wide variety of uses throughout a plant

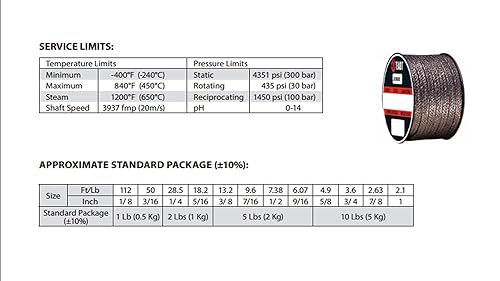

- 0-14 pH range; Shaft Speed 3937 FMP (20m/s), Temperature (minimum -400 F, maximum steam 1200 F) (atmosphere 840 F) / Pressure: Static to 300 bar (4351 psi), Rotating to 30 bar (435 psi)
- 50 ft. per pound. Approximate yields +/- 10%,Reciprocating to 100 bar (1450 psi)
Quantity
-
Detail
SSS Style 2000 Packing is manufactured from high purity flexible graphite that is expanded and formed into a BR a ID ABLE yarn and then braided without binders or wire reinforcement The finished product retains all the inherent benefits of flexible graphite: heat resistance, chemical inertness, low friction, self lubrication, and ready conformability The outstanding properties of this Style make it a truly multi-service Packing capable of a wide variety of uses throughout a plant This Style may be used in valves, pumps, expansion joints, mixers and agitators in the hostile environments of Hydrocarbon processing, pulp and paper, power generation, metal-working and other industries where effective sealing is vital (3/16” Packing cross Section x 25 pound spool)
-
