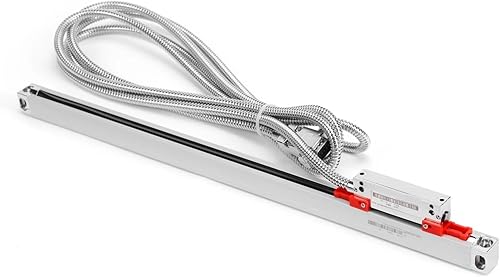

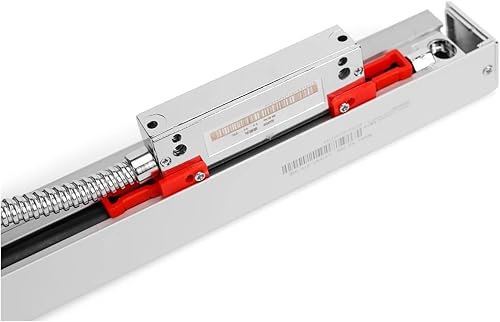

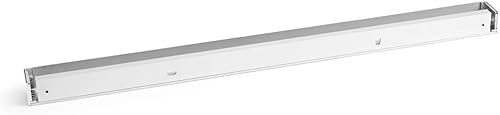

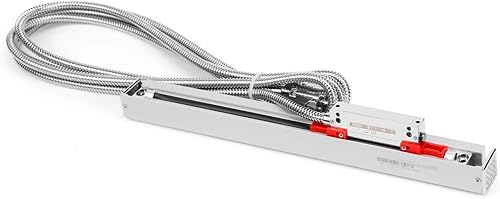

Linear Optical Ruler KA500 Linear Encoder for Lathe Machines Slim Linear Scale KA500 70 120 170 220 270 320 370 420 470(170MM)
- Mechanical toughness and corrosion resistance.
- Widely used in grinding machines, lathes, milling machines, spark machines, rifling machines, wire cutting, etc.
- measurement and digital display ruler displacement sensor, data is accurate and stable.
- Using transmission and optical measurement good performance.
- Great workmanship and assurance, high safety factor, can be used with peace of mind.
Quantity
-
Detail
KA500 5u Linear Scale/Linear Encoder/Linear Sensor/Linear RulerParameter
1. Travel (measuring) length: 0-520mm
2. DB9
3. Resolution: 0.005mm
4. Input voltage: 5V
5. Grating pitch: 0.02mm (50LP/min)
6. Cable length: 3 Meter (about 9 feet)
7. Slim size: About 18*20 Slim Size -
