Linear Rail Guide SBR12-47.24 inch / 1200mm 1Pcs Linear Rail + 2Pcs 12mm SBR12UU Bearing Blocks, 12mm Linear Motion Slide Guide Rail with Ball Bearings Sliding Block as Heavy Duty CNC Kit
- This linear rail set includes 1Pcs SBR12 - 47.24 inch / 1200mm linear Rail + 2Pcs 12mm SBR12UU open alunimum Bearing Blocks with updated design, 1Pcs Locking Handles, to adjust the tightness of the slider bearing block and positioning it + 8Pcs M5 x 10 screws, connecting the sliding bearing blocks and plates as accessories
- CNC parts linear Rail are made of carbon steel, surface chrome plating treatment; linear bearings blocks made of quality bearing steel with aluminum alloy housing. The linear rail kit is smooth and silent sliding, and beautiful anti-rust, high hardness, more durable

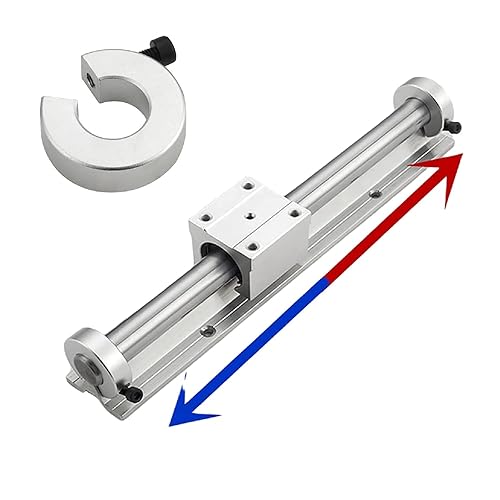

- As pic 4 shows, we can provide 7 styles blocks, the default is the first; The second has a built-in graphite copper sleeve, which is no longer a traditional steel bearing ball. It avoids the ball falling off, and has excellent characteristics of self-lubrication, high temperature resistance and wear resistance, if you have needs or questions about these, please message us
- As pic 5 shows, we can also provide the end stoper ring; and as pic 6, we can process the linear rail end as the bullet shape or any other shape you want, any customized need, please tell us
- We have SBR10, SBR12, SBR16, SBR20, SBR25, SBR30, SBR35, SBR40, SBR50 linear rails and bearings. As a seller in the field of transmission, we provide various transmission solution, system integration, products and accessories, including linear guides, ball screws, motors, gearbox etc.
Quantity
-
Detail
Brand: Coavoo
Style: SBR12 12mm
Linear Shaft Diameter: 12mm
This package includes:
1 Pack SBR12-47.24 inch / 1200mm Linear Slide Guide Fully-supported Rail
2 Pack SBR12UU Bearing Ball Blocks

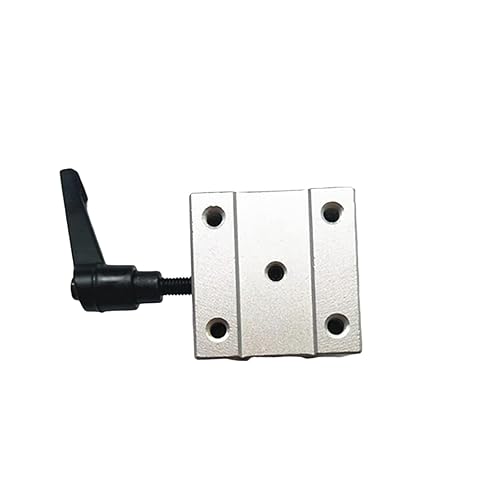

1 Pack Locking Handles, to adjust the tightness of the slider bearing block
8 Pack M5 x 10 screws, connecting the sliding bearing blocks and plate
Technical Support:
- The linear Rail kit apply for various kinds of automated machines and equipment, can help build economical cnc linear guiding system.
-As a seller focusing on the transmission field, we provide kinds of technical support, including the CAD and 3D files.
All questions during the whole use lifetime, please message us without hesitation, we are pleasure to support you.
- We are committing to providing the most complete transmission products to you, all kinds of linear Rail, ball screws, motors and so on;
If you have customization needs, we think we may be your best supplier, we will provide timely and professional support. -
