Live Optical Fiber Identifier with Wave Respond 800-1700nm Built in 10km VFL FTTH Tool

  • Indicate the signal directions and power in fiber,displays the relative core power.(Macro bends are the use of fiber-optic bending leak out when the weak optical signal).Some fiber cladding is too thick, or some light is not easy to leak out (for example 850/1300nm), so it's hard to measure. The easiest to measure wavelength is 1310 / 1550nm.If you want to measure accurate power, please choose a power meter.
  • Indicate the signal presence or absence(Live or dark fiber)
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
  • Build in VFL can measure the distance is about 10-15 kilometers.
  • Lifetime Friendly Customer Service,if have problem,pls contact us.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1

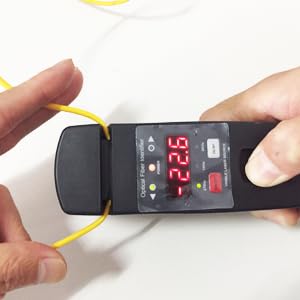

    Macro bending measurement

    Macro bends are the use of fiber-optic bending leak out when the weak optical signal.Some fiber cladding is too thick, or some light is not easy to leak out (for example 850/1300nm), so it's hard to measure. The easiest to measure wavelength is 1310 / 1550nm. AND if you want to measure accurate power, please choose a power meter.

    2

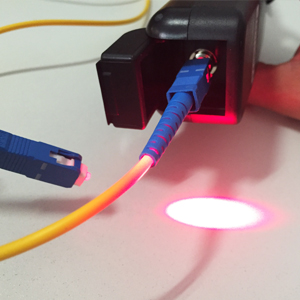

    Built-in VFL

    650nm 10KM VFL, FC/SC/ST universal interface.

    3

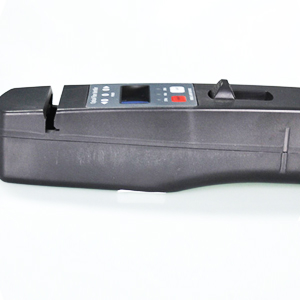

    Application of optical fiber

    250um/900um/2.5um/3mm optical fiber.

    Minimum detection power:-35dBm(1550nm 250um/900um Optical fiber) ;-30dBm(1310nm 250um/900um Optical fiber ).

    This Optical Fiber Identifer is an important tool for optical maintenance,which is used for nonderstructive fiber identificaton project.Meanwhile it also has Visual Fault Locator module with fault location function.Useing the macro bending technology on line for nonderstructive testing.it can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

    ----Macro bending measurement .Macro bends are the use of fiber-optic bending leak out when the weak optical signal,optical signal to detect the direction and intensity.Does not damage opticla fiber,without interrupting communications,and durection of 25mm bare fiber,0.9mm and 2.5mm fiber casing tight jumper.

    ----Tone identification,Optical Fiber Identifier can detect optical signals in the tone signal a ficed load,270Hz,1KHZ and 2KHz,to identify a specific optical fiber,can quickly find the necessary fiber.

    ----Built-in VFL10KM.---Low battery monitoring function,when battery power is insufficient to issue instructions to remind users to change batteries.

    Note:Macro bends are the use of fiber-optic bending leak out when the weak optical signal.Some fiber cladding is too thick, or some light is not easy to leak out (for example 850/1300nm), so it's hard to measure. The easiest to measure wavelength is 1310 / 1550nm. If you want to measure accurate power, please choose a power meter.

    Technical Specifications

    Identified Wavelength Range:800-1700 nm Insertion Loss:1.0dB Fiber Type:250um/900um/2.5um/3mm optical fiber Identified Signal Type:270Hz/1KHz/2KHz Display Type:LED segment Detector Type:1mm InGaAs Minimum detection power:-35dBm(1550nm) -30dBm(1310nm) Center Wavelength:650nm 10KM OperatingTemperature: 0~+50℃ Storage Temperature:-20~+60℃ Weight:200g Dimension:230*43*48mm

    Applications

    Telecom Maintenance CATV Maintenance Fiber Optic lab testing Other Fiber Optic Measurements

    Packaging including

    One Optical Fiber Identifier, User Manual( not including battery)
