Mini Pneumatic Chamfering Machine,JIUNENG Metal Edge Beveler with Replace Blades 8pc（C 45 Degree/R1.5 Arc) and Bearings 4pc

  • 【2 in 1 MINI DEBURRING TOOL】JIUNENG pneumatic beveler with 2pc C blades for 0-2mm 45° angle chamfering and 2pc R blades for 1.5mm round-edge chamfering, perfect for diverse metalworking.

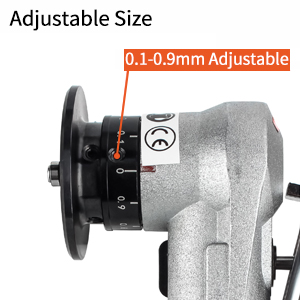

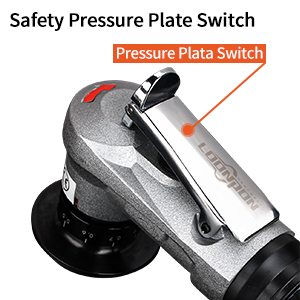

  • 【ADJUSTABLE & SAFE】Adjust the gear speed you need, 5 speed settings and 0.1-0.9mm adjustable depth, powered by compressed air with a 1/4" air metal filter, speed: 30000 RPM, air consumption 0.4/min. The safety switch is used to keep the user safe at all times.
  • 【HIGH EFFICIENCY】Pneumatic beveler adopts chrome-plated all-aluminum shell with high-quality bearings,can withstand high impact and high speed,better use and smoother deburring and chamfering.

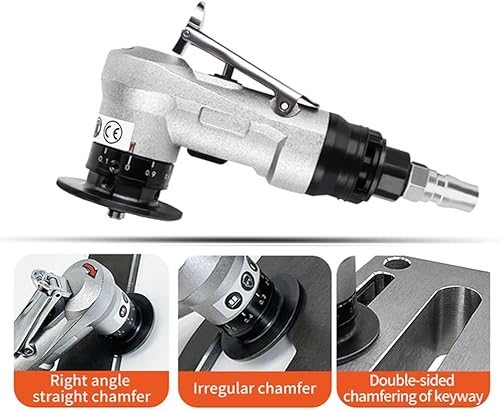

  • 【APPLICATION】Pneumatic laminate trimmer adopts the thinnest nut lock bearing,can chamfer in the narrowest and shallowest space, suitable for various angles.
  • 【EASY OPERATION】JIUNENG metal edge beveler design lightweight , small and exquisite, use the matching wrench to easily adjust the chamfer size and replace the blade.Can be easily operated with one hand.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1
    1

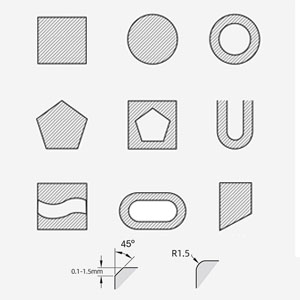

    Chamfering Machine can Pour Shapes

    1. The maximum processing C Angle of this equipment is C0.1-1.5

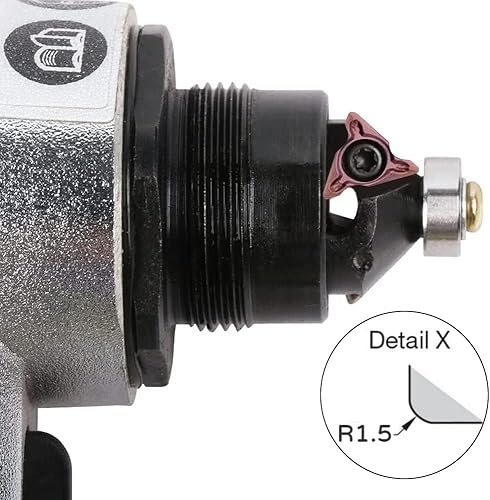

    2. Angle R is the arc Angle of R1.5

    1

    5

    1

    Procedure for replacing a Blade

    safe

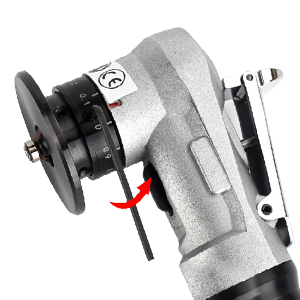

    1. Loosen the two screws of the black gear plate

    Remove two screws stuck to the baffle plate using the matching wrench

    1

    2. Unscrew the gear plate (as shown in the picture)

    Remove baffle counterclockwise

    safe

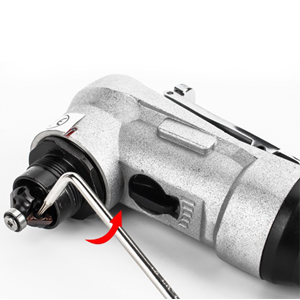

    3. Loosen the blade screws

    Remove the blade screws using a quad wrench and replace the blade and tighten the screws.

    Application

    Usage and maintenance tips

    1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet.

    2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.

    3. It is an air compressor (air pump) for mechanical use. The output of the air compressor is about 6~8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and the piston of the air compressor brings out a small part of the lubricating oil. If the oil-water separator is not used, water and oil and gas will enter the inside of the machine for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, the pneumatic tool oil needs to be input into the air inlet, and the machine can be used normally after idling for about ten seconds.

    1

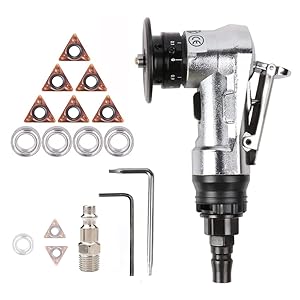

    Mini chamfering machine set

    • This chamfering machine kit includes additional replacement bearings and blades to make it more convenient when you need to replace blades
    • The machine in the kit is fitted with two blades and a bearing, plus six replacement blades plus four bearings
    • Buying the Mini chamfering machine set can save time and cost more than buying blades individually
