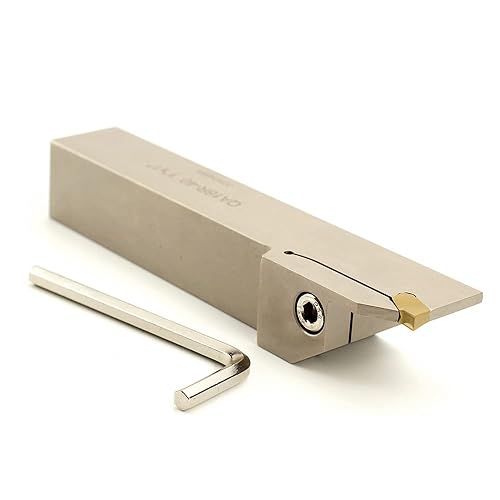

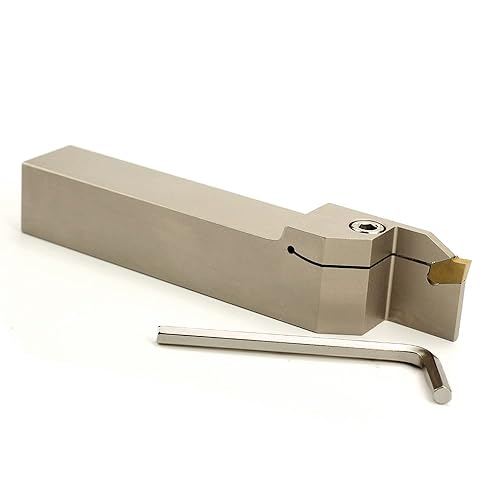

OSCARBIDE 1'x1' Nickel Plated Indexable Grooving & Parting Cut-Off Tool with GTN-4 Carbide Insert, Right-Hand Lathe Holder (1pc)

  • Dimensions: 1" x 1" shank (B x H) with 6" overall length (L) for robust performance in tight spaces.
  • Precision Assurance: GTN-4 insert stop guarantees consistent center height accuracy and exact cutting depth control.
  • Universal Compatibility: Single-piece integrated shank holder enables quick, tool-free setup across all machine types and turret designs.

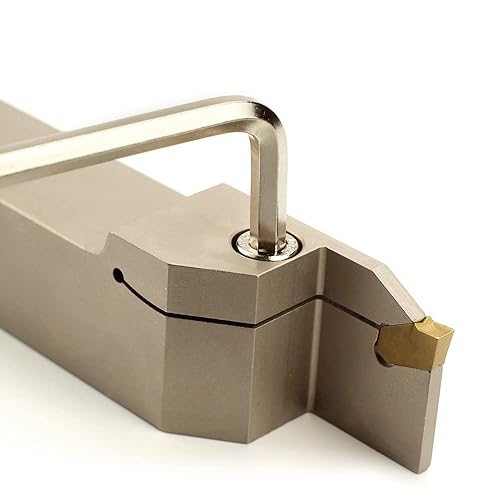

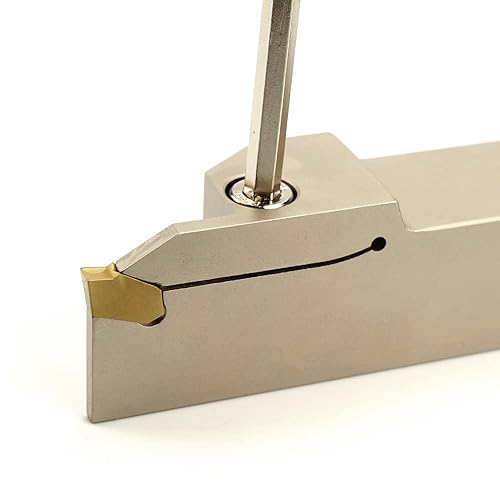

  • Versatile Grooving: Combines plunge-and-turn wide-groove machining with wedge-clamped inserts for unshakable stability in confined face-grooving applications.
  • Multi-Functional: Engineered for external parting, grooving operations, and precision contour/copy turning tasks.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Size:

    grooving parting tools

    Brand: OSCARBIDE

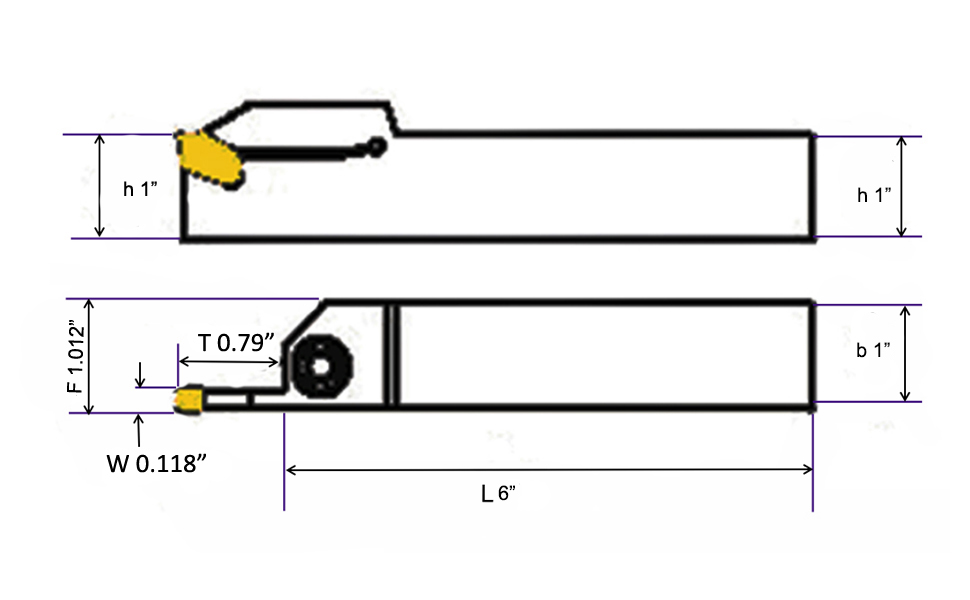

    Shank Size (B x H): 1" x 1"

    Overall Length (L): 6"

    T: 0.79"

    F: 1.012"

    W:0.118”

    Tin Coated Carbide Insert: GTN-4(QC1404)

    Screw Size: M6 x 20

    Wrench Size: S5

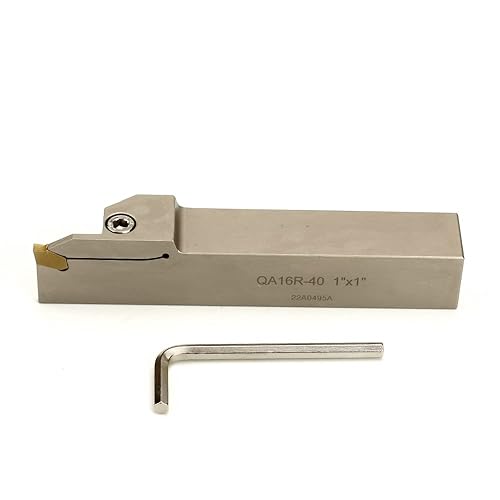

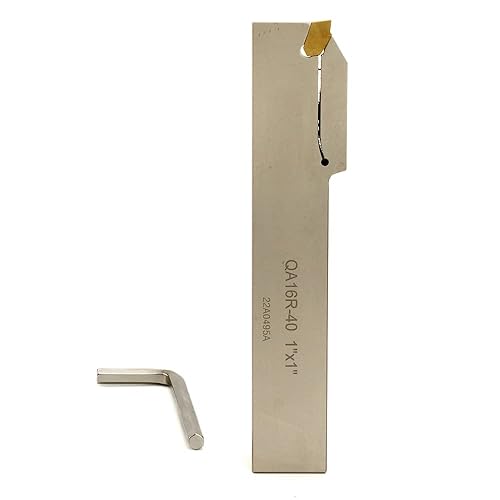

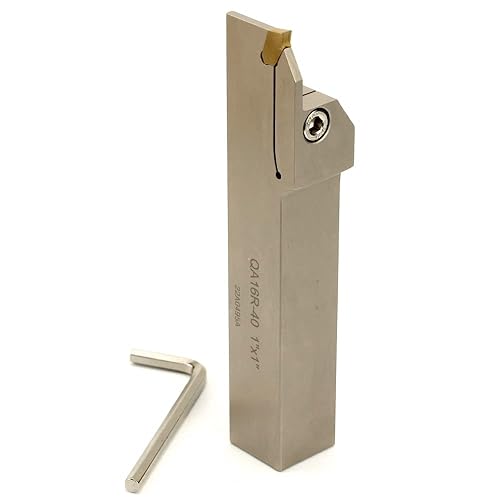

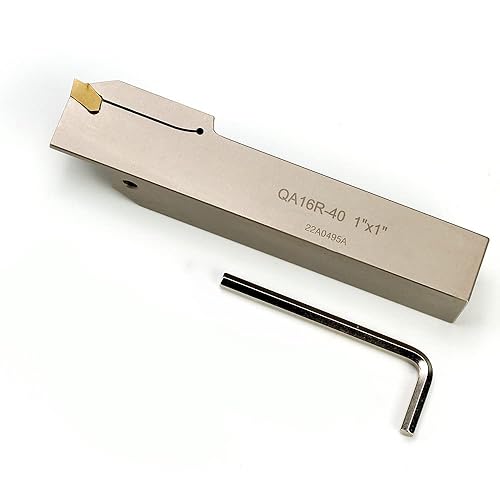

    Packing:1" x 1"Indexable Lathe Grooving Parting Holder QA16R-40

    Feature:

    Simple set-up with one piece integral shank holder adapts easily to any machine type and turret configuration,Opening of wide grooves by plunging and side turning,wedge clamping of insert provides superior stability in close quarters face grooving cuts

    For external parting & grooving, profile/copy turning

    PARTING TOOLS

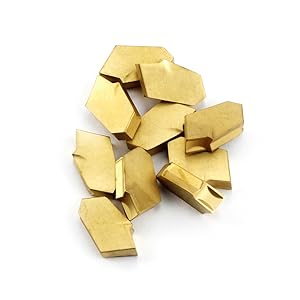

    Carbide Inserts GTN-4(QC1404)

    GTN-4(QC1404) Width: 0.118"

    Material: made of solid carbide with multilayer coated, offer long tool life and faster cutting speed, low friction coefficient, good wear resistance

    Replace carbide inserts

    gtn-4

    GTN-4(QC1404)

    Replace carbide insert GTN-4(QC1404) for this ndexable Grooving Parting Cut-Off Holder, please search Asin B0BYSL88N6 on Amazon
