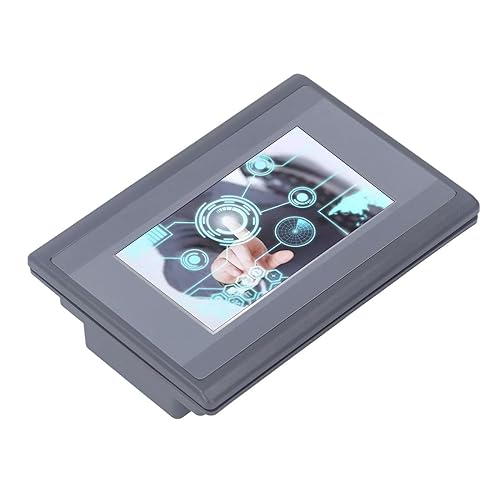

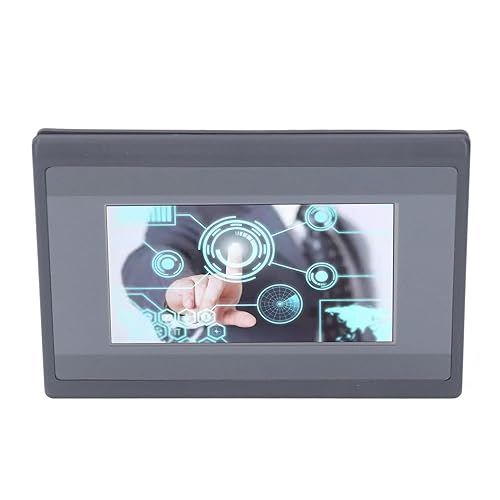

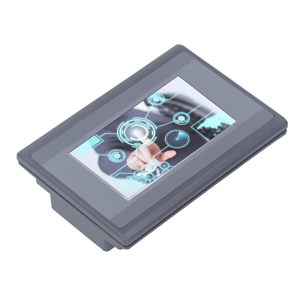

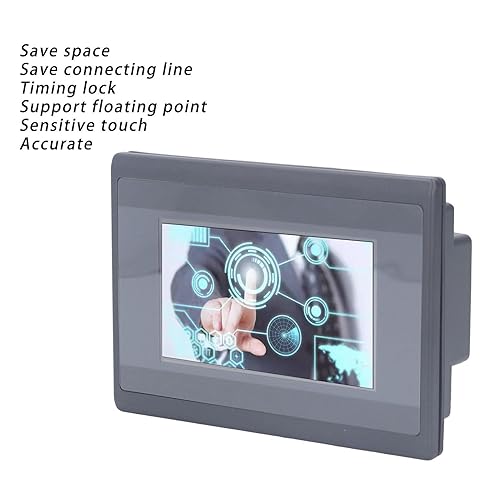

PLC HMI All in One 4.3in, HMI TFT LCD Display Module 32 bit ARM9, 128M NAND Flash, Compatible with for FX3U
- [Easy installation]: Comes with screws and fixing accessories, allowing for simple and direct installation.

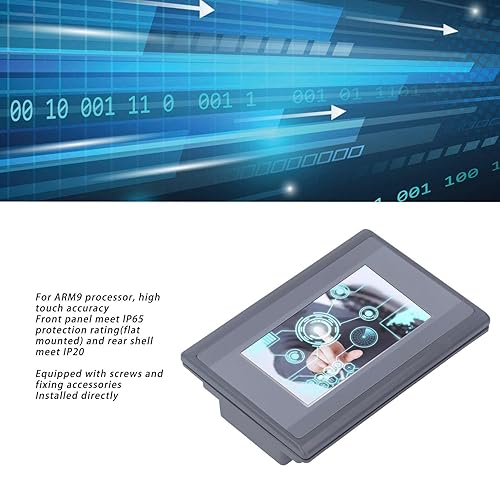

- [ and protective design]: The front panel is rated IP65 for water and dust , while the rear shell is rated IP20, providing durability and .
- [Fast and stable Powered by a 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, ensuring fast running speed and
- [Versatile compatibility]: Compatible with various PLCs and intelligent controllers with communication ports, making it suitable for a wide range of applications.
- [High performance ]: Equipped with a 4.3in TFT LCD screen with 480×272P resolution, 260,000 colors, and a brightness of 400cd/m2, providing clear and vibrant visuals.
Quantity
-
Detail
PLC HMI All in One 4.3in, HMI TFT LCD Display Module 32 bit ARM9, 128M NAND Flash, Compatible with for FX3U

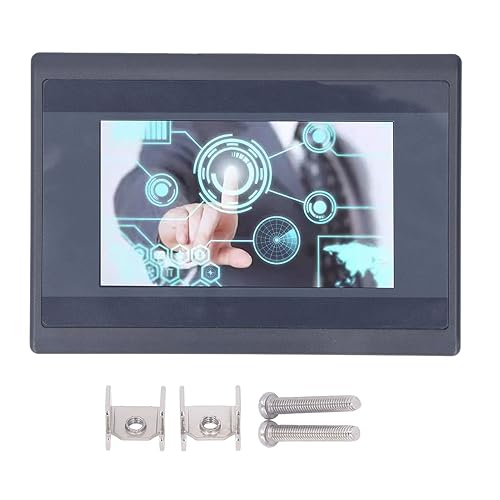

Package List:
1 x PLC Touch Screen All in One Machine2 x Installation Screws
2 x Mounting Brackets
Item Type: PLC HMI All In One

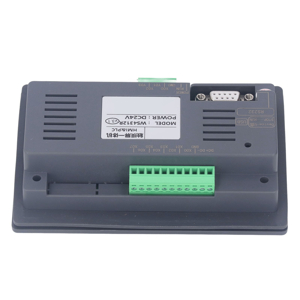

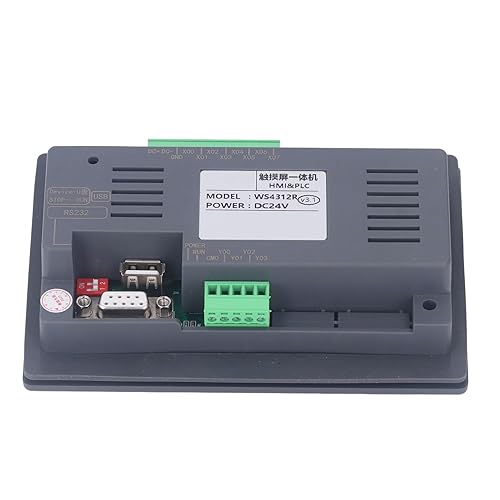

Model: WS4312R
Output Type: Relay
Switch Quantity Points: 8 In 4 out
Supply Voltage: DC24V, Operating Range: ±15%
Output Current: 5A
Display: 4.3in TFT LCD screen
Resolution: 480x272Px
Color: 260,000
Brightness: 400 cd/m2
Backlight: LED
LED Life: 20,000 Hours
Touch Screen: 4 Wire industrial touch screen( hardness 4H)
CPU: 32 Bit 240mhz ARM9
Memory: 128M NAND FLASH
Programming Software: For SEEKU HMI_Setup_V2.0
Ethernet: None
Analog Input: None
Analog Output: None
Pulse Output: None
High Speed Count: 2 Channels 3K
Communication Port: 1 x 232 serial port
Memory Capacity: 8000 Steps
Download Speed: 38.4KB
PLC Series: Compatible with for FX3U and other series
- Programming Software: Compatible with for Mitsubishi PLC programming software for GX Deve loper or for GX works 2
- Program Download Method: USB download
- USB Flash Drive: Supports USB flash drive download and data importing and export

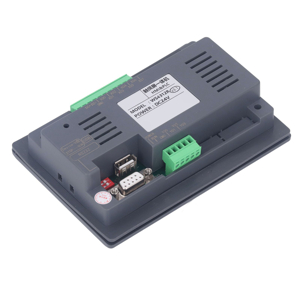

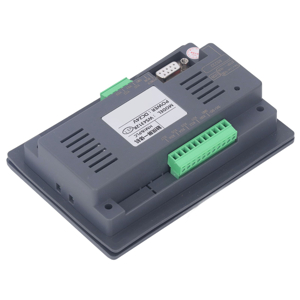

- Serial Communication Port: COM communication serial port is 9 pin D type public seat, COM1 support RS232 or RS485 or RS422 communication(can be customized double serial port, only support RS485 communication)
- Power Protection: Thunderprotection

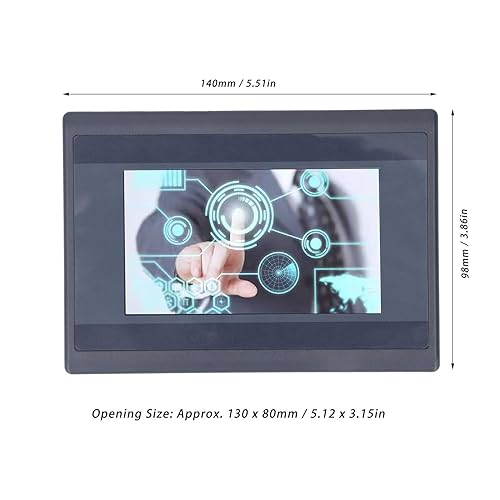

- Opening Size: Approx. 130 x 80mm / 5.12 x 3.15in
- Machine Size: Approx. 140 x 98 x 36.7mm / 5.51 x 3.86 x 1.44in
-
