Portable Brinell Hardness Tester KH180,can be Freely Converted to All Hardness Systems (HL, HB, HRB, HRC, HRA, HV, HS) Without Calculation
- Measurement materials: steel and cast steel, alloy tool steel, gray cast iron, ductile iron, cast aluminum alloy, copper and zinc alloy (brass), pure copper, forged steel.
- Unique features: mature technology, plastic case portable design, high precision, batch testing convenience, especially suitable for out-of-home hardness testing use, is the most cost-effective a portable hardness tester.
- With the power on the value of the software calibration function, to ensure that the data in any industry under the different norms and standards applicable and accurate
- Fully sealed metal housing, rugged, with excellent resistance to vibration, shock and electromagnetic interference
- Menu-based operation, information-rich, intuitive, one-touch switch between material and hardness scale, simple and convenient
Quantity
-
Detail
Portable Brinell Hardness Tester KH180 Scope of application
- Measuring materials: steel and cast steel, alloy tool steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper-zinc alloy (brass), pure copper, forged steel
- Unique features: mature technology, plastic shell portable design, high precision, batch testing is convenient, especially suitable for out of the hardness test use
Portable Richter hardness tester KH180 main use:
- With software calibration function, can set the tolerance limit, convenient batch test, especially suitable for going out hardness test using mold cavity hardness.
- Machining industry
- Especially suitable for large parts and non-detachable parts of the on-site hardness test.
- Mold Cavities
- Heavy workpieces
- Failure analysis of pressure vessels, turbine generator sets and their equipment
- Workpieces with very limited laboratory space
- Bearings and other parts
- Separation of materials in metal material warehouses
- Rapid inspection of large workpieces with multiple measurements over a wide area.
- Translated with DeepL.com (free version)
Portable Richter hardness tester KH180 functional characteristics:
- Menu operation, rich in information, intuitive, one-key to realize the material and hardness of any switch, simple and convenient.

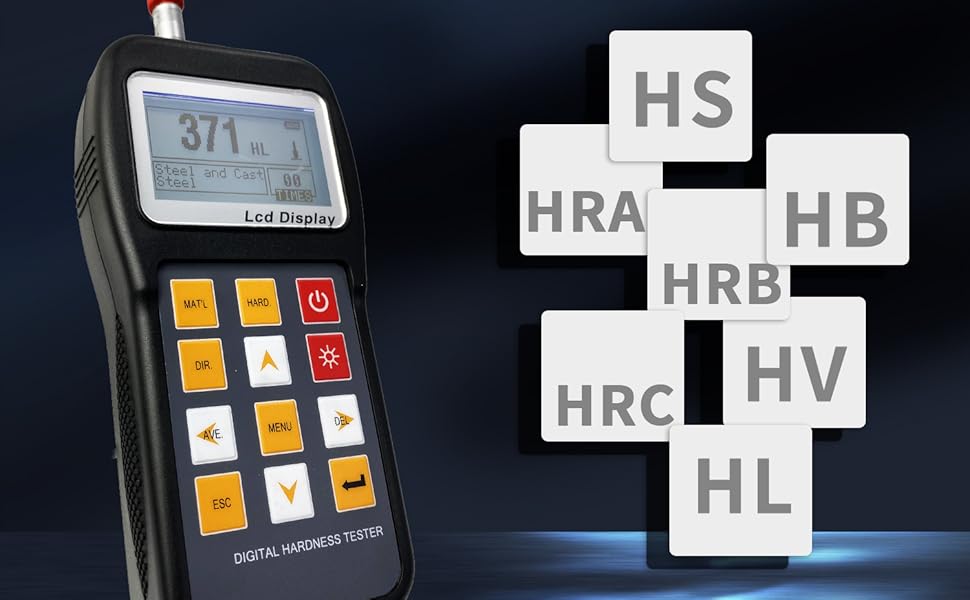

- All hardness scales (HL, HB, HRB, HRC, HRA, HV, HS) can be freely converted without calculation.Can be equipped with 7 different impact devices, automatic identification, replacement without recalibration, excellent compatibility

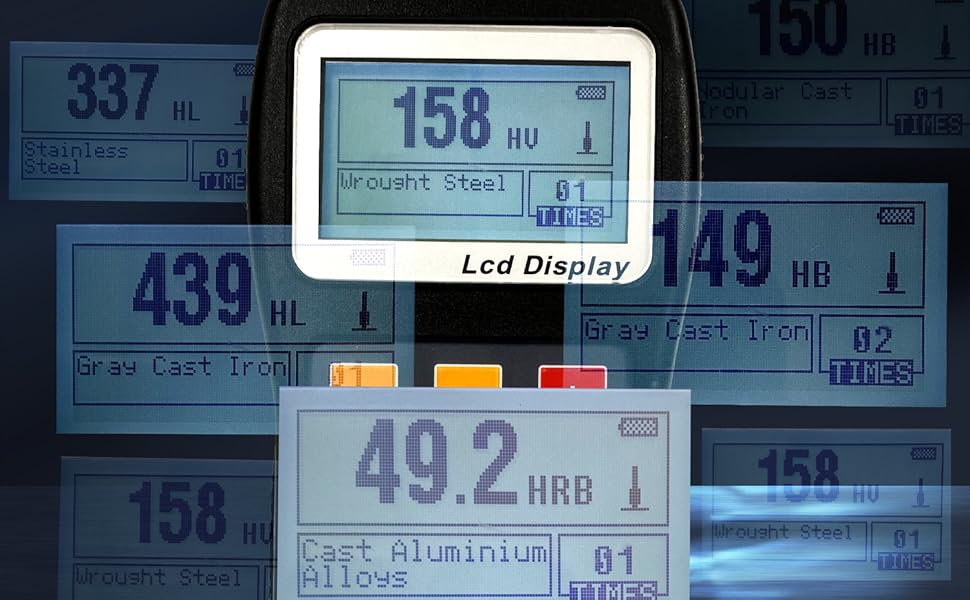

- Large LCD display with high brightness LED backlight, convenient to use in gray light environment.
- Support “Forged Steel” material, when using D/DC type impact device to test “Forged Steel” specimen, you can directly read the HB value, no need to manually check the table.
- Adopting No.5 ordinary battery, it can work continuously for not less than 200 hours.
MAIN FEATURE
- Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;

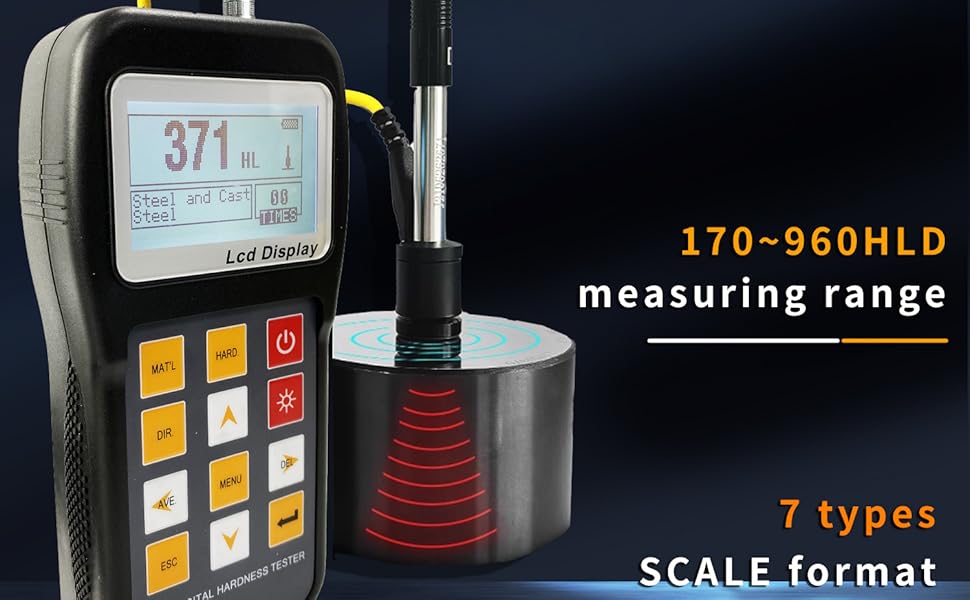

- Seven impact devices are available for special application. Automatically identify the type of impact devices;
- User calibration function;
- Battery information indicates the rest capacity of the battery and the charge status;
- Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;
- Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
- Narrow space also available to use;
- High price performance.

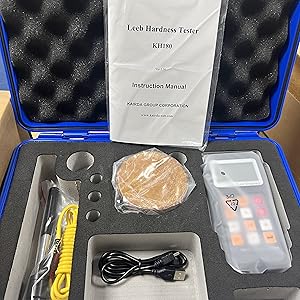

STANDARD DELIVERY
ITEM QTY
KH180 Host 1 PC
Standard D Impact Device 1 PC
Standard Calibration Block 1 PC
Standard Support Ring 1 PC
Brush 1 PC
USB Cable 1 PC

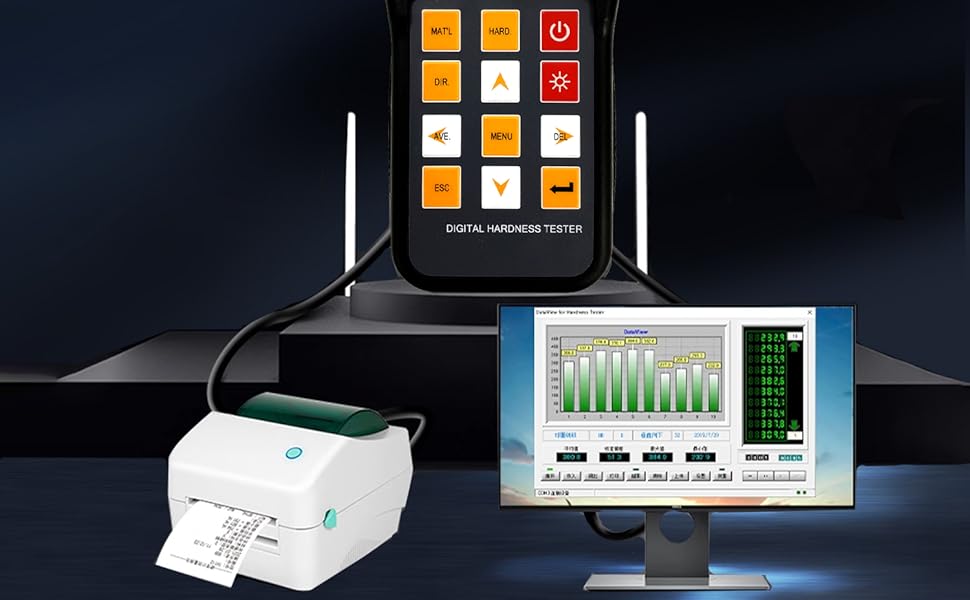

PC Software 1 PC
User Manual 1 PC
Instrument Case 1 PC
-
