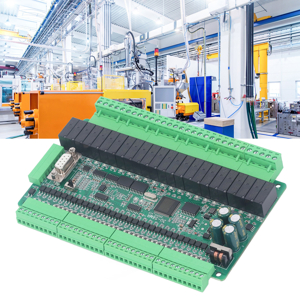

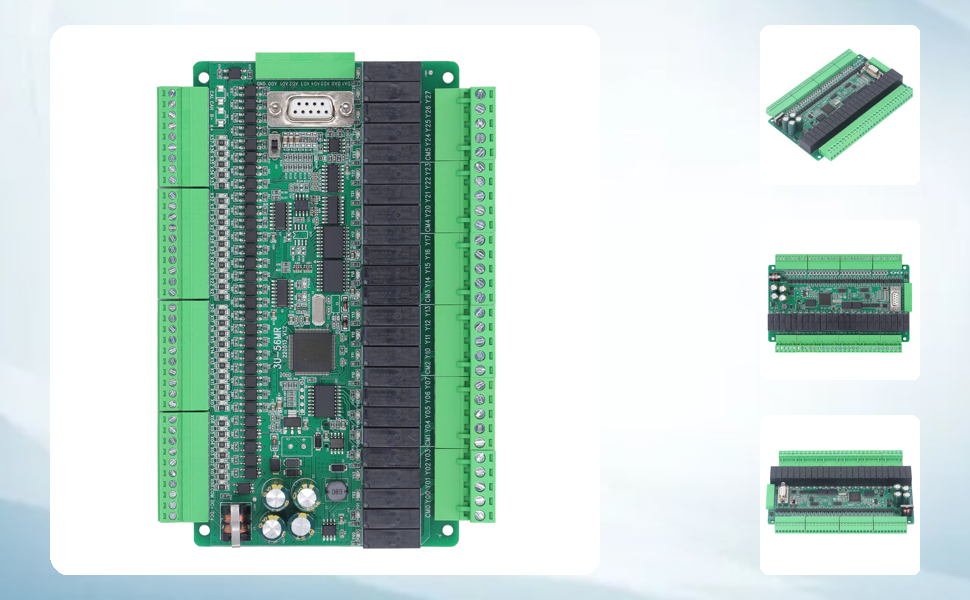

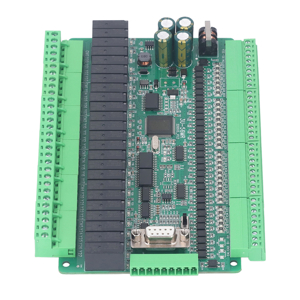

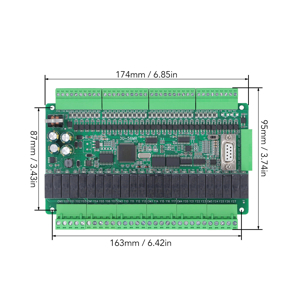

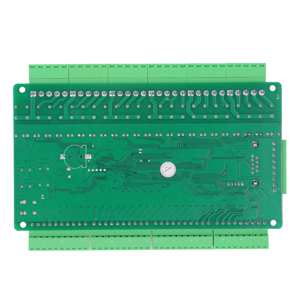

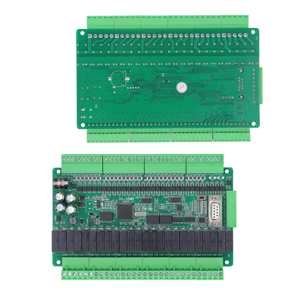

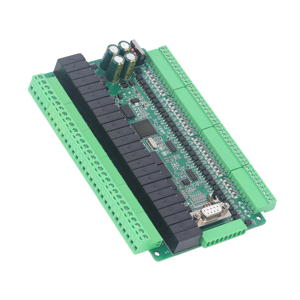

Programmable Logic Relay Controller Industrial Control Board 32 Input 24 Output DC24V 1A

  • [With Relay]: The addition of a clock control function enables this programmable logic relay controller to work at a preset time, enhancing its versatility and convenience.
  • [Wide Application]: Designed for industrial automation control, this PLC industrial control board is suitable for various and can be widely used.
  • [Supported Connection]: This multi-functional PCB industrial board supports the connection of text screen and , providing flexibility in usage.
  • [High Efficiency and Stability]: Built with stable and components, this programmable logic controller ensures excellent performance. It is compatible with programming software like GX Developer or GX Works2, allowing for easy customization.
  • [High Performance]: With a power supply voltage of 24V DC and an output current of 1A, this programmable logic relay controller offers performance. It features 32 inputs and 24 outputs, with default analog input of 3AD 0‑10V and 3AD 4‑20mA, as well as default analog output of 2DA 0‑10V. The high speed counting is default at 6 channels 3K, which can be changed to 6 channels 60K.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1010230117111-1

    Programmable Logic Relay Controller Industrial Control Board 32 Input 24 Output DC24V 1A

    YT


    [High Efficiency and Stability]: Built with stable and components, this programmable logic controller ensures excellent performance. It is compatible with programming software like GX Developer or GX Works2, allowing for easy customization.


    [High Performance]: With a power supply voltage of 24V DC and an output current of 1A, this programmable logic relay controller offers performance. It features 32 inputs and 24 outputs, with default analog input of 3AD 0‑10V and 3AD 4‑20mA, as well as default analog output of 2DA 0‑10V. The high speed counting is default at 6 channels 3K, which can be changed to 6 channels 60K.


    [With Relay]: The addition of a clock control function enables this programmable logic relay controller to work at a preset time, enhancing its versatility and convenience.

    1

    1010230117111-2

    1010230117111-3

    1

    1010230117111-2

    1010230117111-3


    Spec:




    Item Type: Programmable Logic Controller


    Model: FX3U 56MR


    Material: PCB


    Output Type: Relay


    Input And Output: 32 in and 24 out


    Supply Voltage: DC24V


    Output Current: 1A


    Analog Input: Default 3AD 0‑10V and 3AD 4‑20mA


    Analog Output: Default 2DA 0‑10V


    High Speed Counting: Default 6 channels 3K, can be changed to 6 channels 60K


    Pulse Output: None


    Stepper Motor: Not supported


    Memory Capacity: 8000 Steps


    Download Speed: 38.4Kb


    Download Method: Download directly


    Text Screen Connection: Supported


    Connection: Supported


    Clock Control: Supported


    Programming Software: For GX Developer or for GX Works2






    Package List:

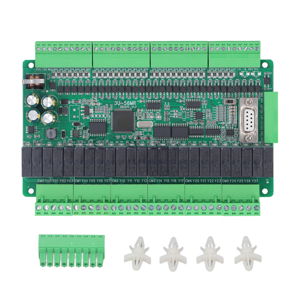

    1 x Programmable Logic Controller


    4 x Accessories


    1 x Terminal




    How To Use:


    Follow the instructions to use.
