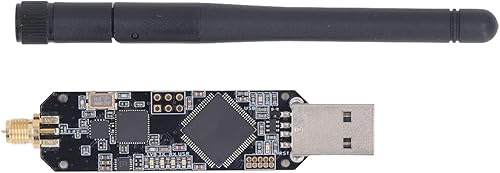

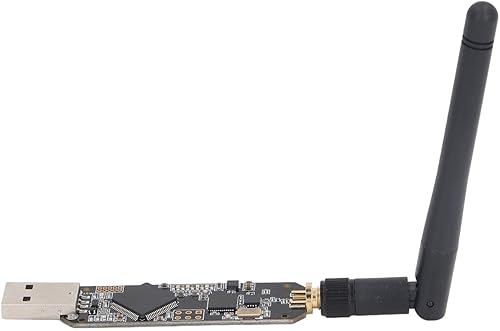

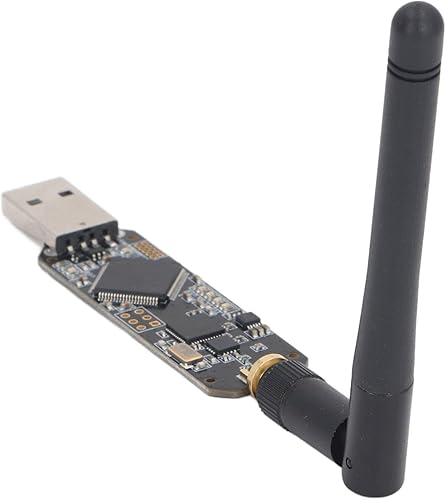

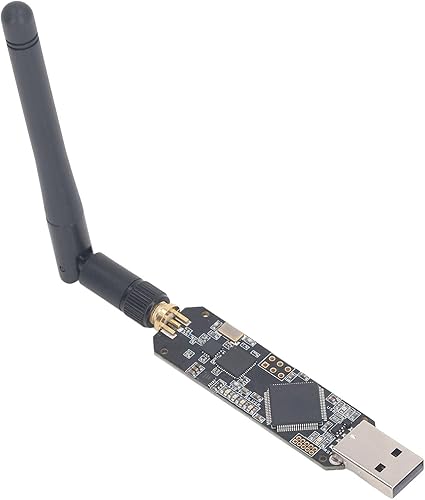

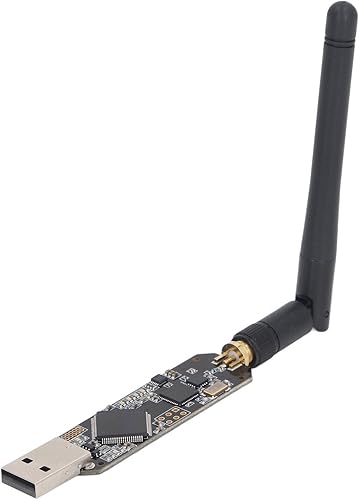

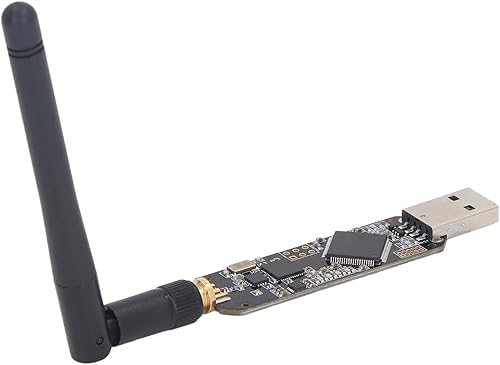

Protocol Analyzer, Ubertooth One 2.4Ghz Analyzer Module, with External Antenna

1. High Performance: For Ubertooth 1 is an open source 2.4 GHz development suitable for experimentation. Based on the powerful for LPC175x ARM Cortex M3 microcontroller with full speed USB 2.0, for Ubertooth 1 is a great way to develop custom Class 1 comparable devices.

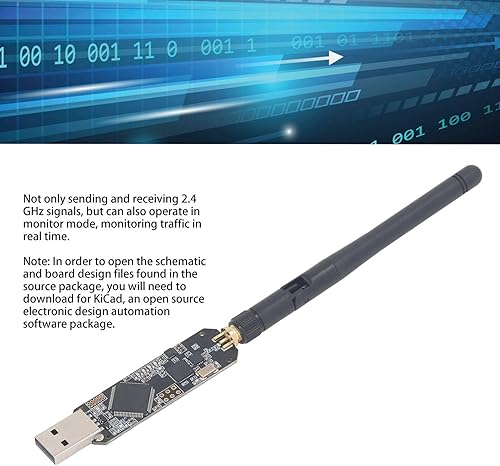

2. Multifunctional: The thing that sets for Ubertooth apart from other development platforms is that it's capable of not only sending and receiving 2.4 GHz , but can also operate in monitoring mode, monitoring traffic in real time.
3. Unique Design: protocol analysis tool with 2.4 GHz transmit and receive. Transmit power and receive sensitivity comparable to a Class 1 device.
4. Connector: Standard for Cortex debug connector (10pin 50mil JTAG). Insystem programming (ISP) serial connector. Expansion connector intended for inter for Ubertooth communicating or other future uses.
5. Usage Note: In order to open the schematic and board design files in the source code package, you will need to download for KiCad, an open source electronic design automation software package.
Spec:
Item Type: Protocol Analyzer
Material: PCB
Controller: for LPC175x ARM Cortex M3
Interface: USB2.0
Connector: for RP SMA
Function: 2.4 GHz Transmit and Receive
Compatible Platforms: for Ubertooth 1
packing list:
1 x Protocol Analyzer
1 x Antenna
Notice:
In order to open the schematic and board design files in the source code package, you will need to download for KiCad, an open source electronic design automation software package.
