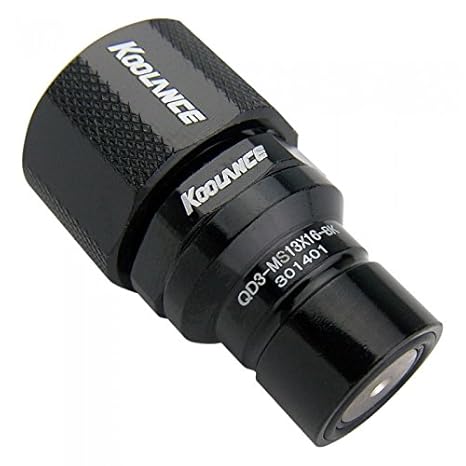

QD3 Male and Female Quick Disconnect Set No-Spill Coupling, Compression for 13mm x 16mm, Black

This bundle includes the male and female QDC Quick Disconnect No-Spill Coupling for 13mm ID, 16mm OD tubing. Quick disconnect no-spill coupling with automatic shutoff. 13mm (1/2in) ID male straight connection with compression fitting. After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi). General Weight: 0.23 lb (0.10 kg) Max No-Spill Pressure: 0.5kgf/cm2 (7psi) Max Pressure Tolerance at 25C: 8kgf/cm2 (113.8psi) Max Temperature Tolerance: 80C (176F) Min Pressure Tolerance at 25C: -1.0kgf/cm2 (-14psi) Min Storage Temperature (*No Freezing): -20C (-4F) Seal Material: EPDM (Water/Glycol Liquids) Wetted Materials: Brass, Stainless Steel, EPDM Quick disconnect no-spill coupling with automatic shutoff. 13mm (1/2in) ID male straight connection with compression fitting. General Weight: 0.16 lb (0.07 kg) Max No-Spill Pressure: 0.5kgf/cm2 (7psi) Max Pressure Tolerance at 25C: 8kgf/cm2 (113.8psi) Max Temperature Tolerance: 80C (176F) Min Pressure Tolerance at 25C: -1.0kgf/cm2 (-14psi) Min Storage Temperature (*No Freezing): -20C (-4F) Seal Material: EPDM (Water/Glycol Liquids) Wetted Materials: Brass, Stainless Steel, EPDM Model: TR-90921-90936
