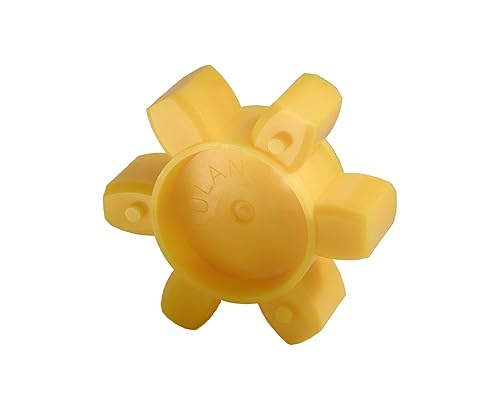

Ruland JD36/57-92Y Jaw Coupling Spider, Yellow, Bore, 2-1/4' 57.2mm OD
- Ruland jaw couplings have a zero-backlash balanced design for reduced vibration at speeds up to 8,000 RPM
- Users can combine clamp or set screw hub with inch, metric, keyed, or keyless bore for a high level of customization
- Spider made from 92 Shore A polyurethane for a mix of dampening, stiffness, and torque capabilities
- Fail safe design with hubs interlocking if the spider fails
- Ruland jaw coupling spiders are RoHS3 and REACH compliant
Quantity
-
Detail
Carefully made by Ruland in Marlborough, MA, curved jaw couplings are comprised of two hubs pressed fit with an elastomer "spider" with the same OD. Curved jaw couplings are zero-backlash by design and are well-suited to servo applications where accuracy of torque transmission is required. The yellow spider is made from an advanced polyurethane material and has a balance of torsional stiffness and dampening characteristics. Maximum is 8,000 RPM. RoHS and Reach compliant. Also called a jaw coupling insert or spider.
-
