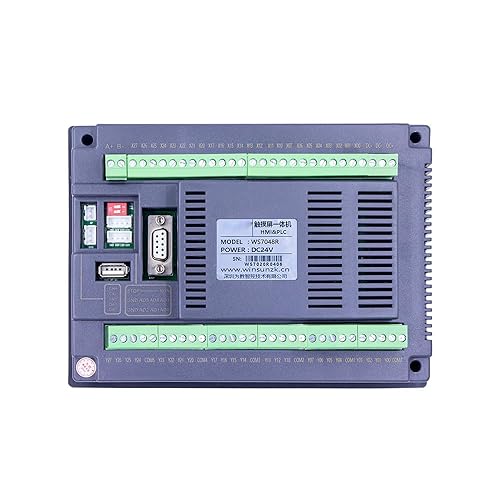

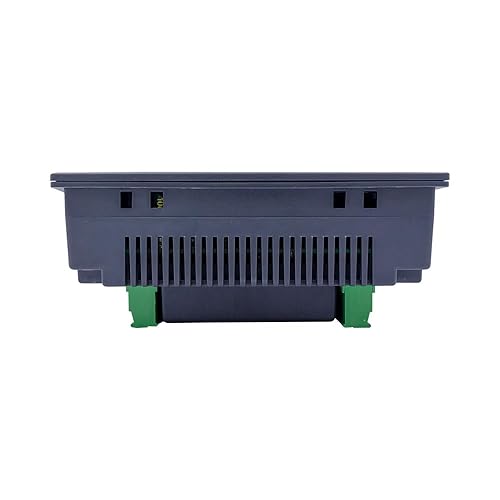

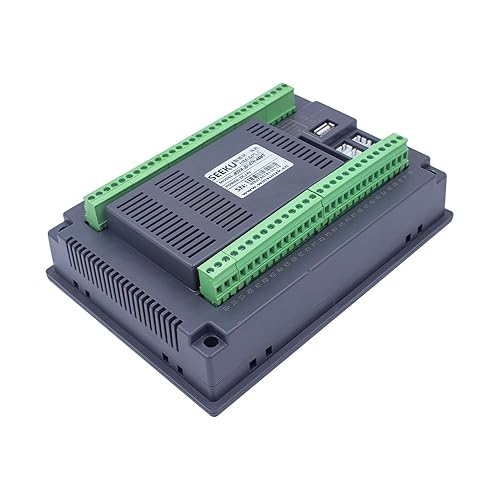

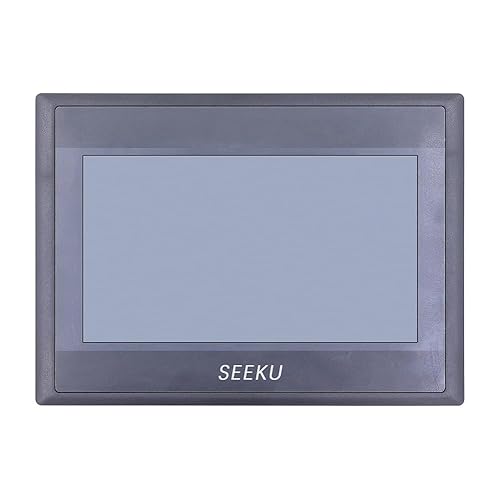

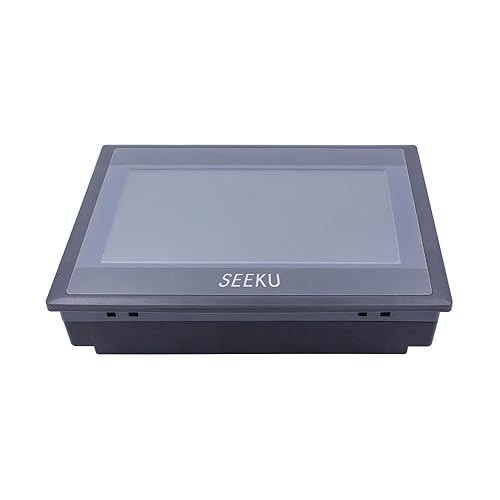

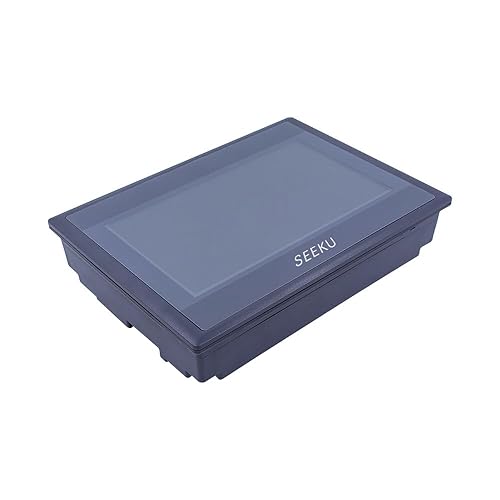

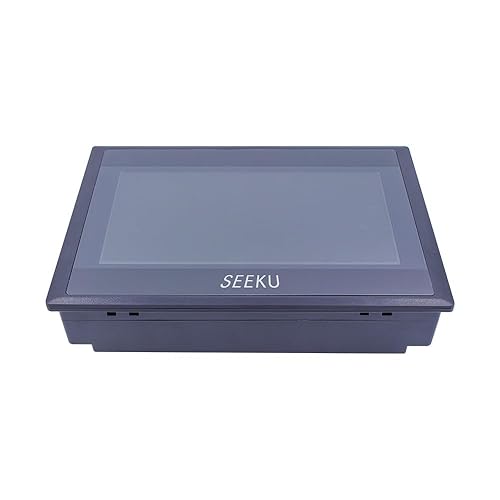

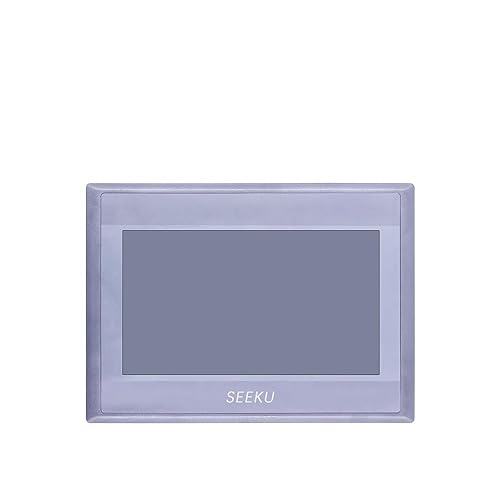

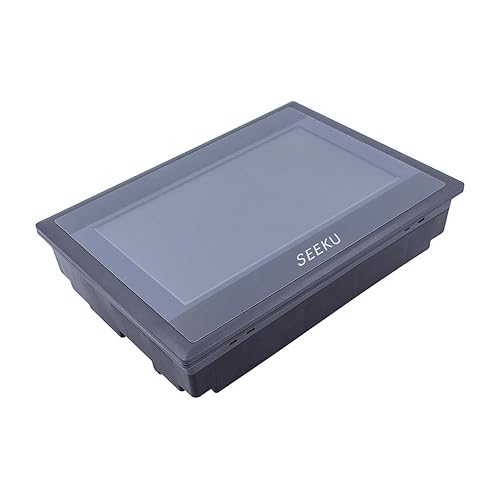

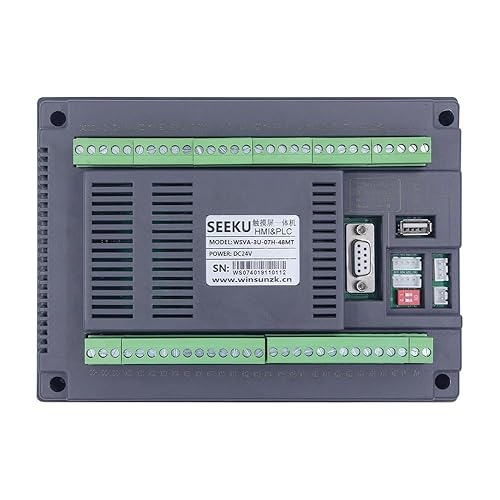

SEEKU 24 in 24 Digits Out 7 inch HMI PLC All in One Touch Screen with PLC Integrated Panel 0-10V 4-20MA Analog MODBUS (Relay Output)

package included: Machine*1
program download cable*2 (HMI Program software is free, please ask customer service to get it. thanks.)

HMI: · 32-bit 240MHz ARM9 CPU with high Speed; ·
High-definition LCD, 260K real color; ·
4-line industrial resistance touch screen; (Surface hardness - 4H)； ·
Support U-disk download; ·
Winsun software - HMIStudio for programming.

PLC: ·
ARMCortex-M3 32-bit core chip with high speed and big capacity. ·
Download Speed is 38.4Kbps(9.6K Optional);
Developed by GX Developer or GX Works2 for program, downloading, debugging, Monitoring(writing not supported.). ·
DC 24V Power supply;
Static current is 130MA under output RLY not open;
It increases 12MA to open one more RLY output like 48MR gets 420MA(10.08W) when RLY outputs are opened. ·
Built-in 2 channel 3K counting, support 1 channel AB phase input. For 4.3 inch with transistor output, 20MT and higher ones get 2 channel 100K pulse output. 7 inch machine with transistor out gets 4 channel 100K pulse output. ·
RLY is 5A, it should be lower than 3A for long-time use;
Transistor uses the triode drive, output current 1A, it should be lower than 500MA for long-time use.
