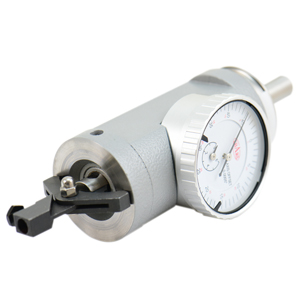

Shars Co-Ax Coaxial Centering Indicator Dial Test Complete Set, 0.0005' Standard Body 303-3300A S)

  • Part# 303-3300A
  • OVERALL LENGTH: 6-7/8"
  • CONTACT POINT BALL DIAMETER: 0.125"
  • MEASURING RANGE DIAL INDICATOR: 0.15"
  • GRADUATION: 0.0005"
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1


    Co-Axial Center Indicator Set

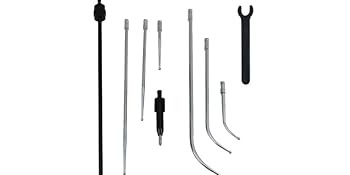

    WHAT'S INCLUDED

    • Coaxial indicator main body
    • 2" Long internal feeler for 5/32" to 4-1/4" diameter bore
    • 2" Long external feeler for 0 to 4-1/4" diameter bore
    • 4" Long internal feeler for 5/32" to 8" diameter bore
    • 4" Long external feeler for 0 to 8" diameter bore
    • 6" Long internal feeler for 5/32" to 12" diameter bore
    • 6" Long external feeler for 0 to 12" diameter bore
    • Restraining stopping rod
    • Fitted Case

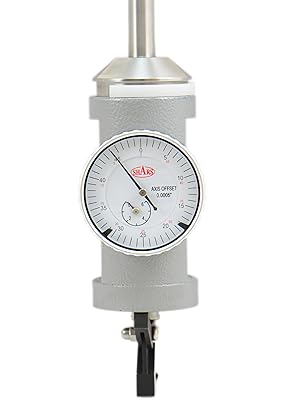

    Shars Tool Co-Axial Center Indicator Set

    Part# 303-3300A

    • Critical surface precision ground finished
    • Shank: 3/8" diameter x 7/8" length
    • Feeler Ball Diameter: 1/8"
    • Measuring Range: 0.200 axis offset
    • Internal capacity range is 5/32 to 12" diameter and external capacity range is 0 to 12" diameter depending on the feeler
    • Speed: Max 800 rpm
    • Locating Accuracy: .0002" from true center
    • Operates at any angle, vertical or horizontal, internal or external
    • Indicator remains in fixed position facing the operator while the spindle rotates
    • OVERALL LENGTH: 6-7/8"
    • CONTACT POINT BALL DIAMETER: 0.125"
    • GRADUATION: 0.0005"
    • ACCURACY: 0.0002"
    • MEASURING RANGE DIAL INDICATOR: 0.15"
    • DIAL READING: 0-50

    Product Spotlight

    Convenient tool to find and set up the position of a workpiece on vertical and horizontal machines. It can also be used to determine the position of a workpiece when the spindle is rotated by hand or automatic. Easy read-out from stationary dial indicator.
