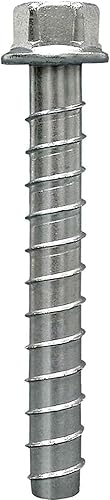

Simpson Strong-Tie THDB62600HMG Titen HD 5/8 in. x 6 in. Mechanically Galvanized Heavy-Duty Screw Anchor (10-Qty)

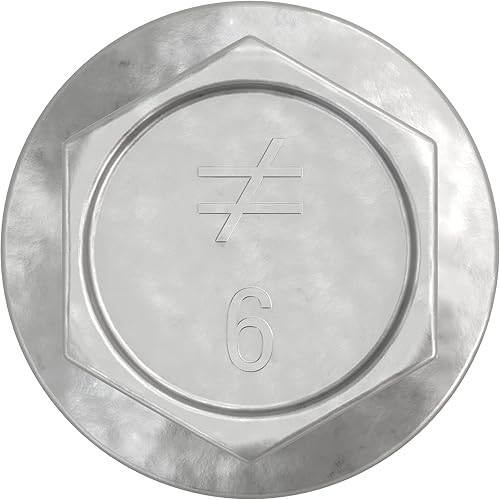

  • Head-stamped for easy identification
  • Serrated teeth on the tip facilitates cutting and reduces installation torque
  • Thread design undercuts to efficiently transfer the load to the base material
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
  • Hex washer head requires no separate washer, unless required by code
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Discover the Titen HD High-Strength Screw Anchor

    Designed for use in cracked and uncracked concrete, as well as uncracked masonry, the Titen HD high-strength screw anchor offers low installation torque and outstanding performance. The Titen HD screw anchor is ideal for a wide variety of applications, such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.


    Broad Range of Anchoring Applications


    The Professional's Choice for Anchoring

    Titen HD heavy-duty anchors install 5x faster than typical wedge anchors


    Suitable for External and Internal Projects

    Titen HD heavy-duty anchors with mechanically galvanized coating are designed for use in interior and exterior applications


    Removable Anchors Offer Installation Flexibility

    Titen HD heavy-duty screw anchors are ideal for projects where anchors may need to be removed


    Make Overhead Anchoring Easy

    Titen HD rod hangers are ideal for installing mechanical, electrical, or plumbing overhead

    Titen HD Installation Sequence


    Step 1

    Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overall to allow the thread tapping dust to settle.


    Step 2

    Blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.


    Step 3

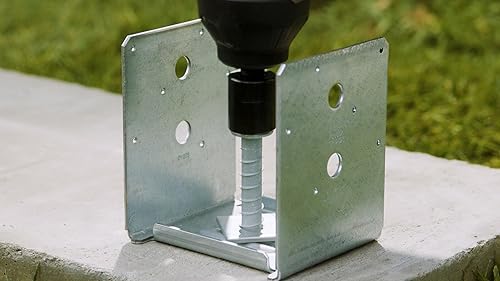

    Insert the anchor through the fixture and into the hole. Tighten the anchor into the base material.


    Step 4

    Tighten the anchor into the base material until the hex-washer head contacts the fixture.
