Taidacent Industrial Grade Noise Decibel Detection Module Sound Sensor Sound Level Meter Sound Measurement (TTL-5V)


  • This noise module is designed according to the international standard IEC 61672-1:2002 for Class 2 X-type sound level meters. It is mainly used for various noises such as environmental noise, traffic noise, workplace noise, building construction noise and social life noise. Real-time measurement on site.
  • With this module, customers no longer have to worry about complex noise signal processing, and can focus on areas of expertise and create value for customers faster.
  • PCB onboard installation method; 30~120dBA wide range, 20~12.5KHz wide frequency measurement;
  • High-performance pre-polarized back-electrode electret condenser microphone with wide dynamic range and stable performance.
  • Both slow and fast measurement modes are available to meet different customer requirements.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

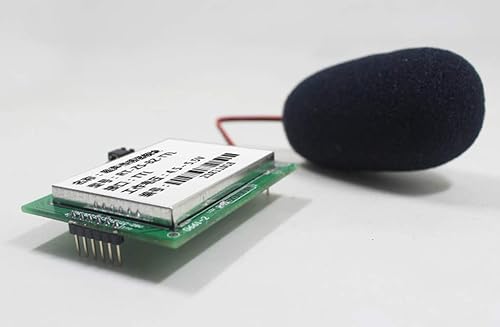

    Feature

    • 01 Install filter cotton

    Adopt high-performance pre-polarized, back pole pole body condenser microphone

    • 02 Standard 2.54MM pin output

    Unique stainless steel probe, independent packaging design, easy to embed other equipment or chassis

    • 03 Separate structure design

    Good air permeability, convenient dust cleaning, high measurement accuracy, and more accurate detection

    • 04 The line length can be increased

    The wire length between the probe and the bare board can be increased according to the needs

    • 05 Tolerant to the outside world

    Reserve a variety of output TTL (UART), RS-485 communication interface, analog current, voltage optional, suitable for various application integration

    Parameter

    Operating Voltage 4.5-5.5V (default) 10-28V (optional)
    Power consumption 18.9mA at 5V; 31.0mA at 12V; 27.8mA at 24V
    Operating temperature -20°C~+60°C, 0%RH~80%RH
    Noise accuracy ±0.5dB
    Output signal TTL, RS485, analog.
    Measuring range 30dB~ 120dB
    Frequency weighting A weighting
    Response range 20Hz~12.5kHz
    Response time Fast 500ms, slow 1.5s

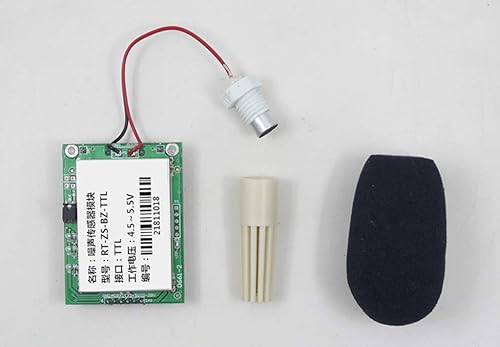

    Noise Decibel Detection Module

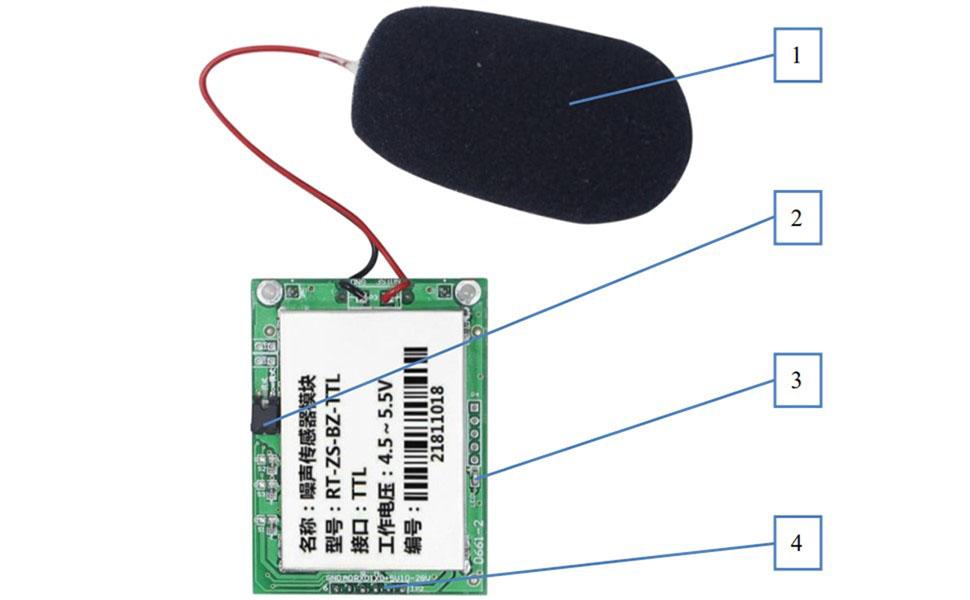

    Connection diagram

    1, Sound probe, containing electret microphone, plastic sheath, dustproof cotton

    2, Mode selection terminal, the jumper cap is shorted for fast mode, and the noise update time is 500ms; if not shorted, it is for slow mode, and the noise update time is 1.5S

    3. Running indicator, flashing once every 1s

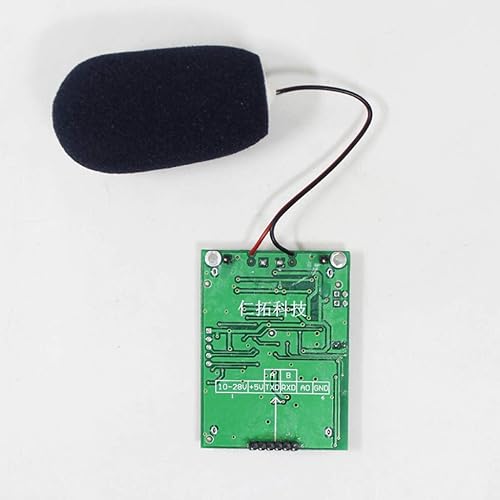

    4. Pin description

    10-28V: 10-28V power input

    +5V: 5V power input

    TXD/A: serial data transmission (output voltage 0~3.3V) / 485-A line

    RXD/B: serial port data reception (input voltage 0~3.3V tolerates 5V input) / 485-B line

    AO: analog signal output 0~3V

    GND: negative power supply

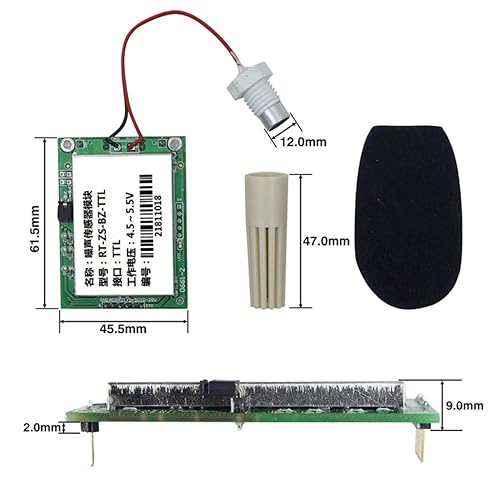

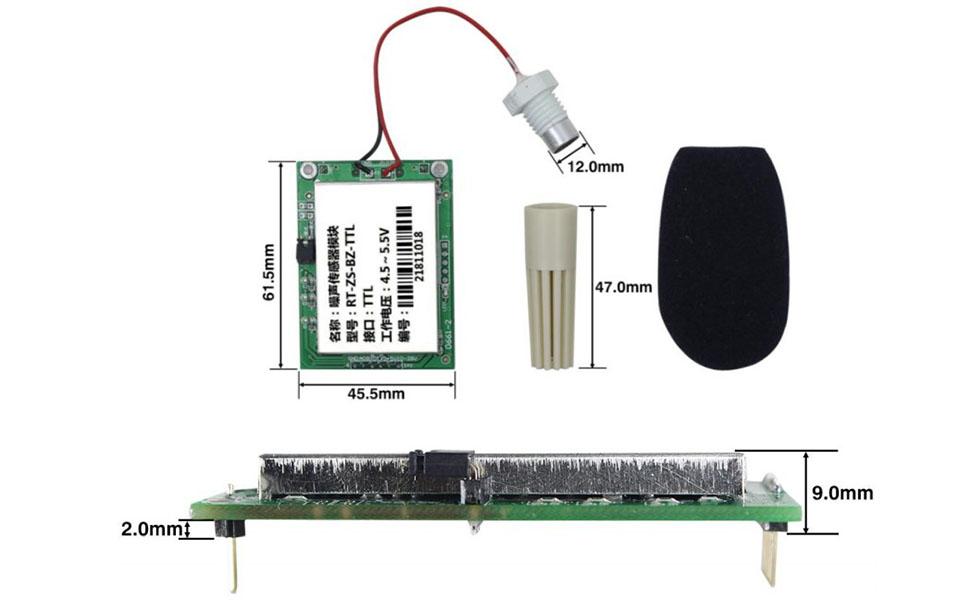

    Equipment size

    Noise Decibel Detection Module

    Note

    The sound probe lead length is 10cm. If you want to clamp the sound probe, the recommended panel opening size is φ13mm.

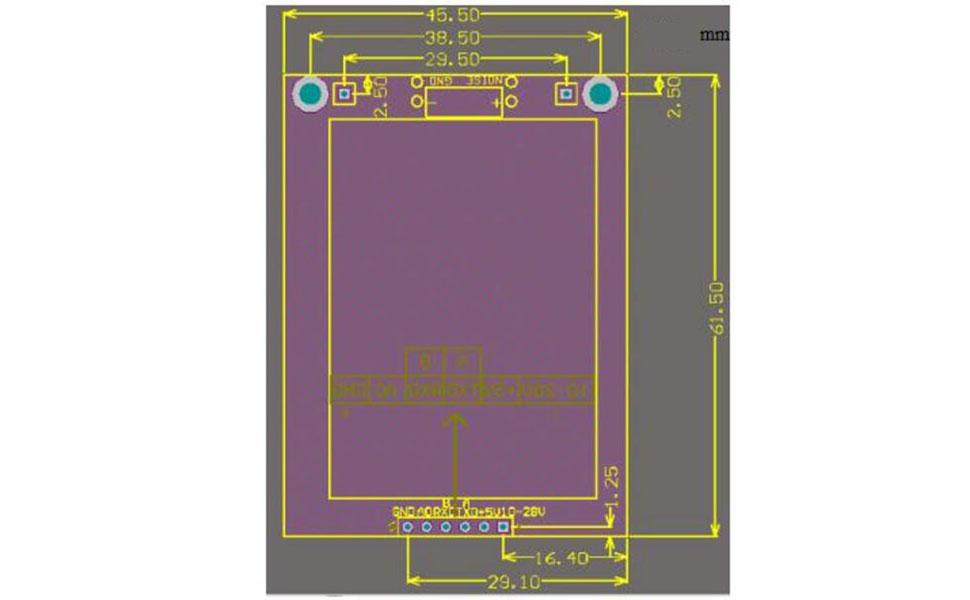

    Module PCB package

    I2c Digital Temp and Humidity Meter Soil Moisture Sensor

    Device communication

    Basic communication parameters

    The UART interface or 485 interface uses ModBus-RTU protocol for communication. The default communication communication parameters are:

    Baud rate: 9600 Data bits: 8 bits Parity mode: No parity Stop bit length: 1 bit The device ModBus communication address is 1.

    Data frame format definition

    Adopt Modbus-RTU communication protocol, the format is as follows:

    Initial structure ≥4 bytes of time

    Address code= 1 byte

    Function code= 1 byte

    Data area= N bytes

    Error check = 16-bit CRC code

    End structure≥4 bytes of time

    Address code: default 01.

    Function code: The instruction function of the command sent by the host. This module only uses function code 0x03 (read register data).

    Data area: The data area is the specific communication data. Note that the 16-bit data high byte is in front!

    CRC code: Two-byte check code

    • Host inquiry frame structure:

    Address Code: 1 Byte; Function Code: 1 Byte; Register Start Address: 2 Byte; Register length: 2 Byte; Check Code Low: 1 Byte; Check Code High: 1 Byte

    • Module response frame structure:

    Address Code: 1 Byte Function Code: 1 Byte Numbers of Valid: 1 Byte First Data Area: 2 Byte; Second Data Area: 2 Byte; N Data Area: 2 Byte; Check code: 2 Byte

    • Register Address

    Register address: 0000 H; PLC or Configuration address: 40001 ; Content: Instantaneous noise value Upload data is 10 times true; Operation: Read only

    • Communication protocol examples and explanations

    Example: Read module noise value

    Inquiry frame:

    Address Code: 0x01; Function Code: 0x03; Starting Address: 0x00 0x00; Data Length: 0x00 0x01; Check Code Low: 0x84; Check Code High: 0x0A

    Response frame: (for example, the current noise is 71.3dB)

    Address Code: 0x01; Function Code: 0x03 ; Numbers of Retur-ed Valid Bytes: 0x02 ; Current Noise Value: 0x02 0xC9 ; Check Code Low: 0x79 ; Check Code High: 0x72
