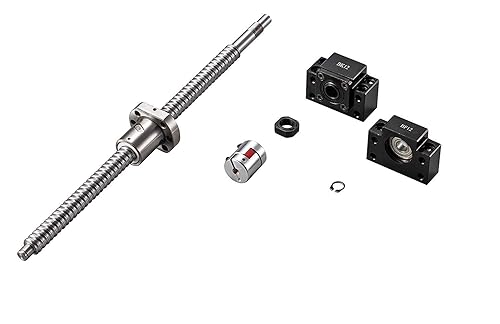

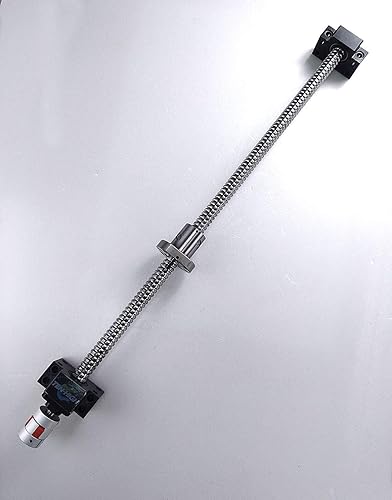

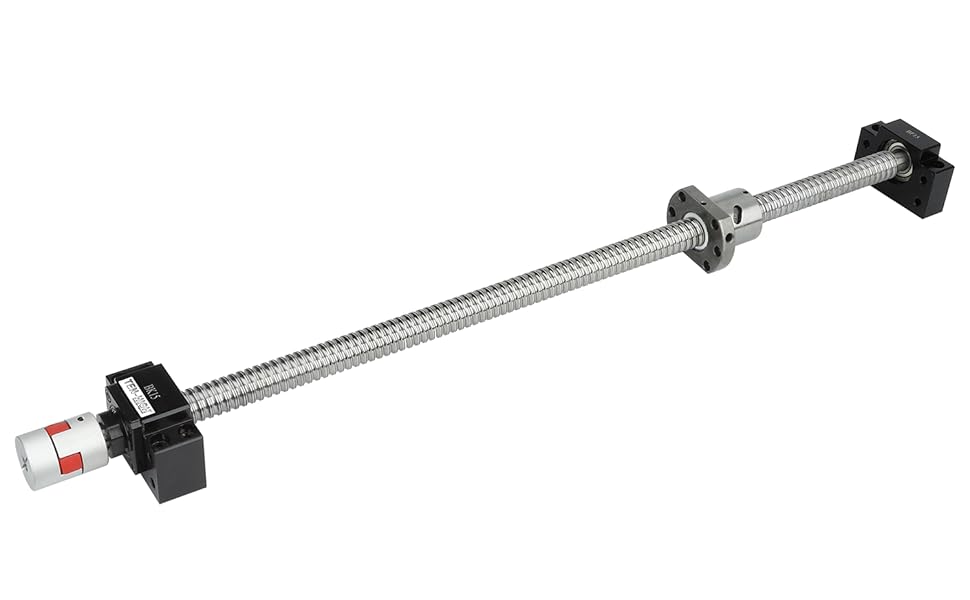

TEN-HIGH Ball Screw CNC Parts SFU2005 NSC, 1pcs Ball Screw + 1pcs Nut + 1pcs BK/BF15 End Support Units + 1pcs Coupler + End Machining, Diameter 20mm Lead 5mm Length 600mm

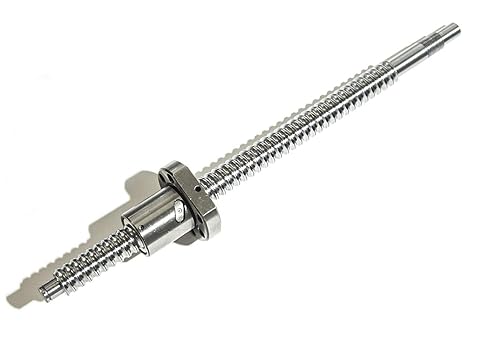

  • Diameter: 20mm/0.787"; Lead/Pitch: 5mm/0.197"; Overall length: 600mm/23.622"
  • Material: GCr15 steel; Accuracy grade: C7; Manufacturing process: rolled thread; Model: SFU2005
  • 【Advantages】High precision, low operating noise, smooth and durable, easy for installation and maintenance. Anti-backlash and can be used vertically. Long service life due to low friction; excellent static and dynamic stiffness; high and more accurate positioning; no stick-slip effect, heats up less, reduced drive power required.
  • 【Applications】Can be used for CNC, machine DIY, student project, home project, simple experiments and other creative, manufacturing and industrial needs.
  • Package includes: 1 x Ball Screw, 1 x Nut, 1 x End Support Units (BK/BF15), 1 x Coupler
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Notes:

    1. If you have special requirements on machining, please let us know before placing order, so that we can customize for you.

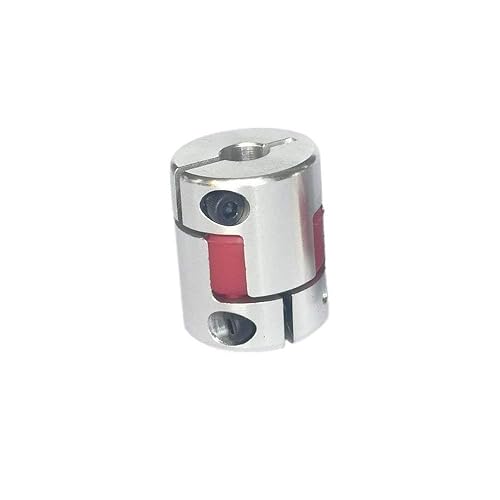

    2. If you need to change the size of flexible coupler bore according to your motor shaft diameter, confirm with us before placing order.

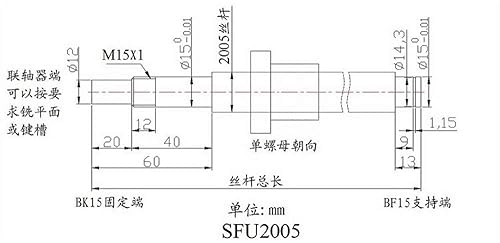

    3. This item has end machining, and the overall length that we mentioned above includes the end machining part.
    4. Due to different measuring tools, may exist slightly differences in length, but it won’t affect the use.
    5. After receive the package, please check the product at first. If there any problem, let us know in time, so that we can provide after-sales services for you.

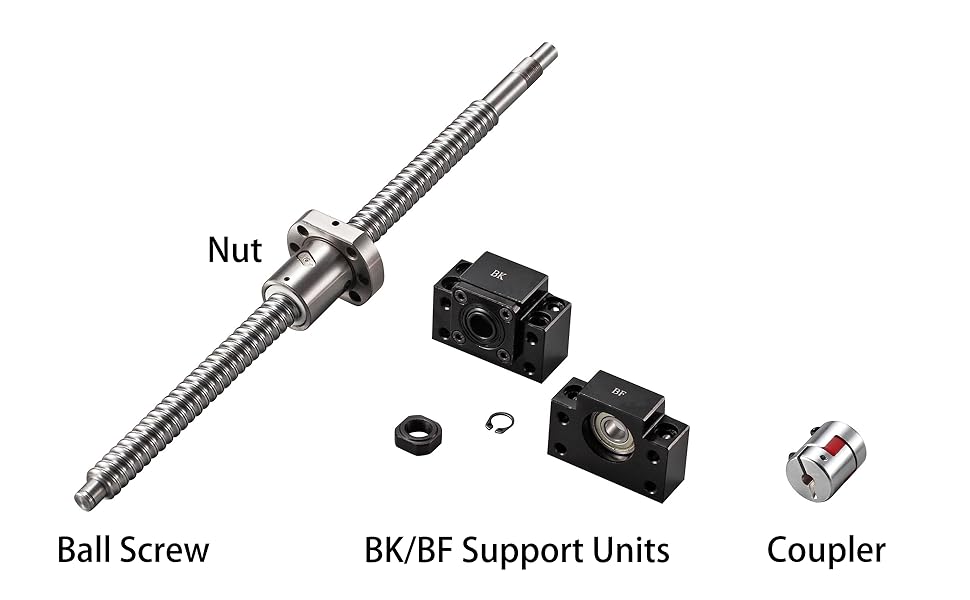

    Package includes:

    1

    Attention:

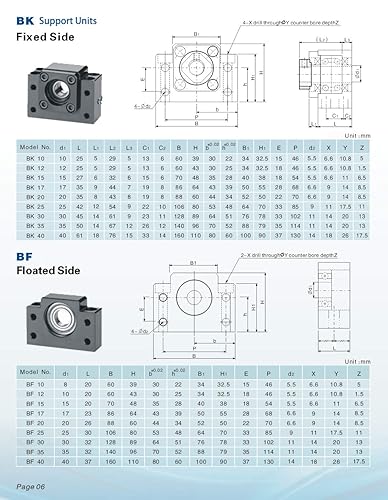

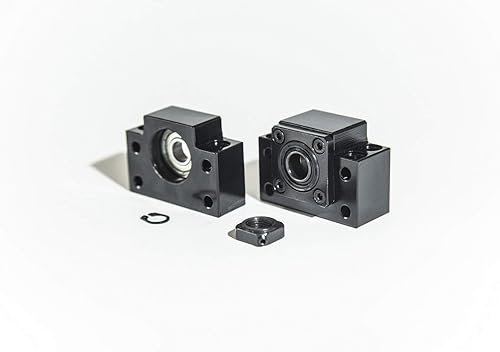

    1. End Support Units include the BK Fixed Side and the BF Floated Side.

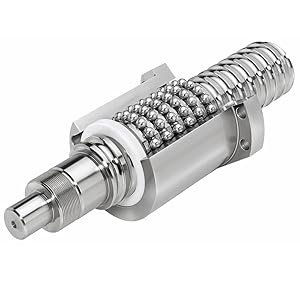

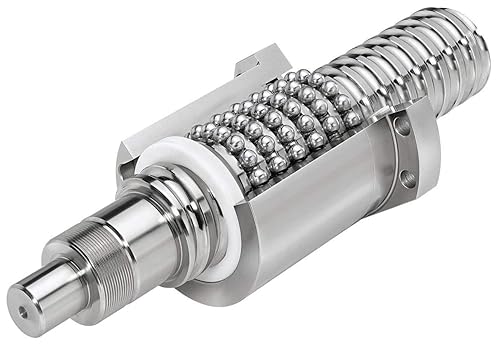

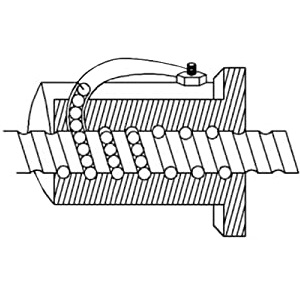

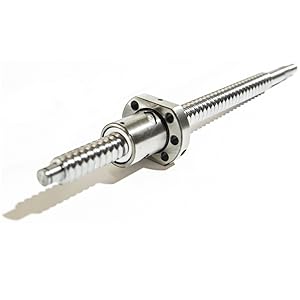

    2. We will install the nut on the screw in advance. There are some steel balls inside the nut, please don’t remove it from the ball screw. Otherwise, those steel balls will fall out and hard to put them back.
    3. Maintenance: customers may lubricate the ball screw with hydraulic carbon oil, what we also called No.46 machine oil.

    1

    High Quality: this product is made of high-quality steel, which stands up to wear and tear, and can meet high load capacity requirements.

    Accuracy Grade C7: with bearing fits less than 0.03 mm so that the actuator rod doesn't wiggle so much when operating.

    2

    Power Saving:

    Excellent overall performance, considering it saves power. Meanwhile, it yields higher mechanical efficiency than traditional Acme alternatives.

    3

    Mute Operation:

    The CNC linear rail kit bears very little sliding friction between the nut and screw. Thus, downtime for maintenance and parts replacement is cut, as well as the lubricating demand.

    1

    Application:

    1. Ball screws are used in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.
    2. Because its low frictional resistance, they are also used in machine tools, robots and precision assembly equipment.
    3. High precision ball screws are used in steppers for semiconductor manufacturing and so on.

    * The picture above is for reference only; the model of Support Units depends on what you order.
