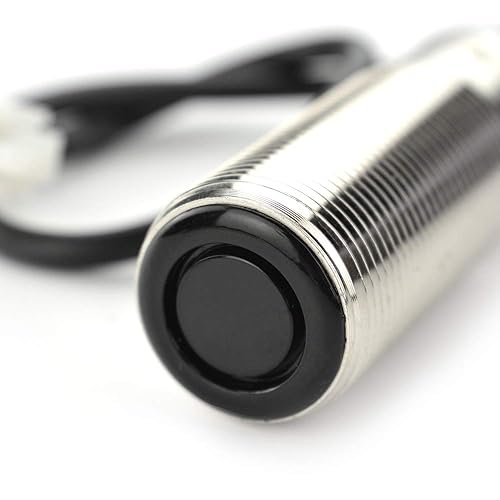

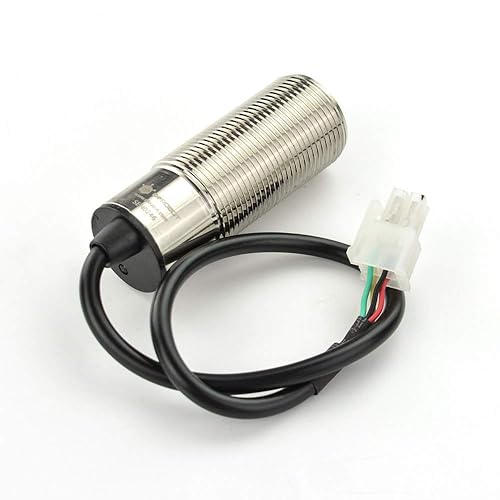

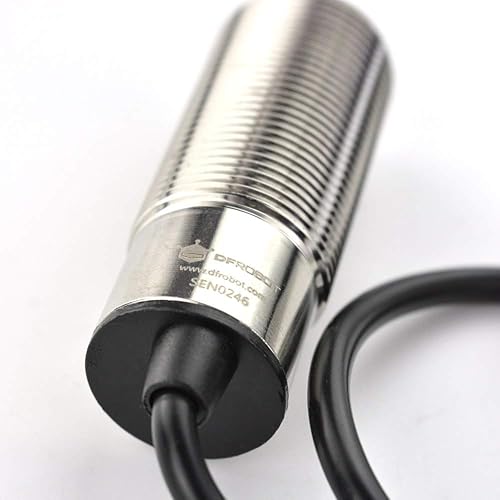

URM08 - Waterproof Industrial Ultrasonic Distance Sensor (35~550cm, ModBus-RTU)

  • High-precision distance detection and temperature measurement: The URM08-RS485 waterproof ultrasonic ranging sensor has built-in temperature compensation, which can accurately detect the distance between the sensor and the target object. The distance error is only ±1%, and the temperature error is only ±1℃.
  • Waterproof, dustproof, and corrosion-resistant: The metal shell is completely sealed, and the protection level reaches IP65, providing advantages such as waterproof, dustproof, and corrosion resistance.
  • Wide application scenarios: Suitable for various liquid level, object level detection, and various barrier applications, meeting the usage requirements in different environments.
  • Shorter detection blind zone and larger distance detection range: In a single probe situation, the effective range is 35~550 cm, achieving a shorter detection blind zone and a larger distance detection range.
  • Stable output data and communication interface: With a measurement cycle of 100ms, it adapts to different environments. The RS485 communication interface makes it convenient to connect with other devices and data transmission.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Who we are

    DFRobot is a world-leading robotics and open source hardware provider with a large community catering to future creators. We keep creating innovative, user-friendly hardware & software products that become the building blocks in all kinds of electronic projects and fostering a strong community of learners around it.

    A Dream Factory for Robo-holics

    DFRobot is a dynamic group with diversified backgrounds and culture: from former nuclear submarine technician, bluechip company senior engineer, artist, hacker to software guru. All of them share one thing in common: the love for making robots.

    Empowering makers since 2008

    DFRobot was among the first to embrace open source hardware - especially Arduino,Raspberry Pi and LattePanda. Our ever-growing product catalog boasts over 1300 components and widgets and we have delivered 1.5 million units to 220 countries around the world. Our mission is to form a community with easy access to whether hardware, software and ideas that allow makers and younger generation to achieve their goals and realize creative ideas in an effective manner.

    URM08-RS485 Ultrasonic Ranging Sensor

    URM08-RS485 Ultrasonic Ranging Sensor (35~550cm)

    Introduction

    URM08-RS485 is a combination of temperature measurement device and distance inspection tool, can widely applied to projects like liquid level, levels, and barrier applications.

    Documents

    • Product Wiki: wiki.dfrobot.com/URM08-RS485_Waterproof_Sonar_Range_Finder_SKU_SEN0246
    • Specification: github.com/Strictus/DFRobot/raw/master/SEN0246/%5BSEN0246%5D-20190820-EN-V1_0.pdf

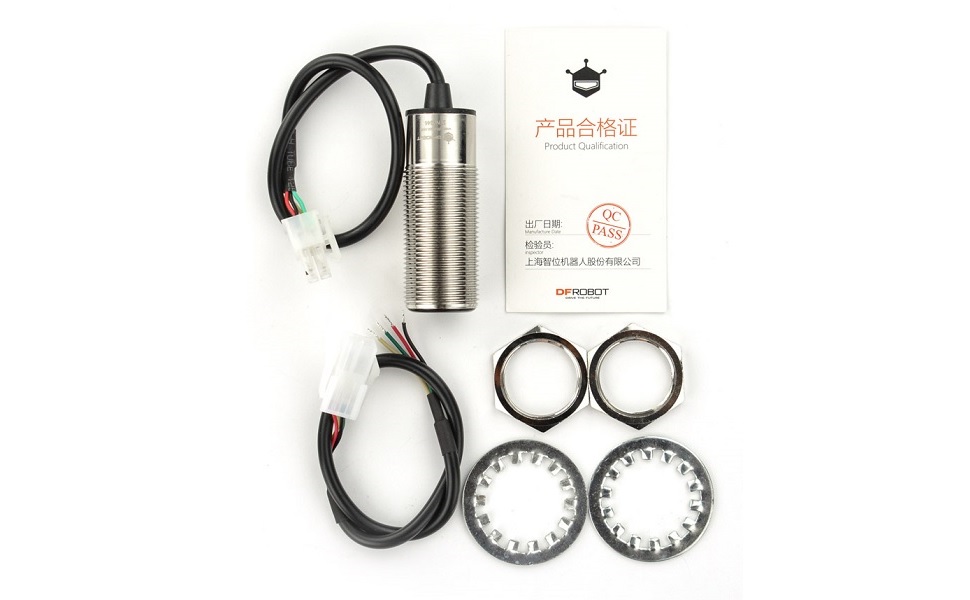

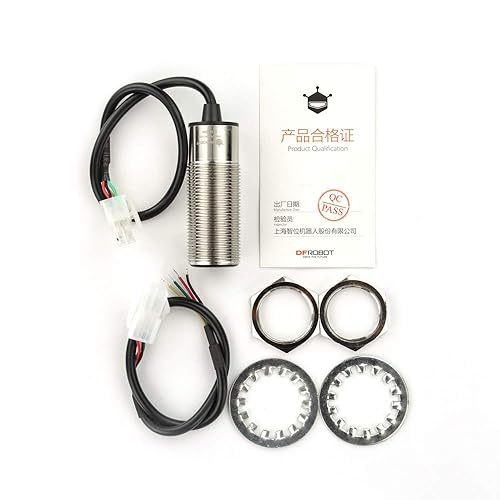

    SHIPPING LIST

    • URM08-RS485 U ltrasonic Ranging Sensor x1
    • Screw Nuts x2
    • Metal Pads x2
    • Adaptor Wire x1
    URM08-RS485 Ultrasonic Ranging Sensor

    SPECIFICATION

    • Operating Voltage: DC 6.0 ~ 12.0V
    • Operating Current: 250mA
    • Effective Range: 35 ~ 550 cm
    • Distance Resolution: 1cm
    • Temperature Resolution: 0.1°C
    • Temperature Error: ± 1 ℃
    • Measurement Period: 70ms
    • Operating Temperature Range: -10 ~ 70 ℃
    • Distance Error: ±1%
    • Operating Humidity Range: RH<75%
    • Acoustic Frequency: 38 ~ 42KHz
    • Direction Angle: 60 °
    • Protection Degree: IP65
    • Communication Interface: RS485
