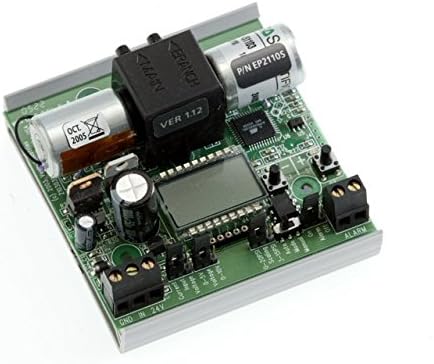

Veris,EP,Anlg in,3-15/0-20psi, EP2100S

Input Power 24VAC/DC nominal30VAC max.; 150mA max.Control Input 4-20mA/0-5V/0-10VDC; jumper-selectableInput Impedance 4-20mA 250 ohm; 0-5V/0-10VDC 10k ohmManual Override Jumper-selectable mode digital pushbutton adjustAccuracy 1% FS; combined linearity hysteresis repeatabilityCompensated Temperature Range -4° to 65°C (25° to 140°F) Temperature Coefficient ±0.05%/°COperating Environment 10-90% RH non-condensingAir Capacity 523 in3/min@45 psi (8570cm3/[email protected] kPa); 333 in3/min@20 psi (5456cm3/[email protected] kPa)Supply Pressure 45 psig max.Control Range 0-20 psig or 3-15 psig jumper-selectablePressure Differential 0.1psig (supply to branch)Pressure Indication Electronic 3-1/2 digit LCDMinimum Tubing Length 15 feet*Port Connection 1/8 i.d. poly tubingMedia Connection Clean dry air or inert gas. Do not use with oxygen service*For shorter tubing runs use AA45 Pneumatic CapacitorEMC Conformance: EN 61000-6-3:2001 Class B EN 55022 Class B EN 61000-6-1:2001EMC Test Methods: CISPR 22:2005 Class B IEC 61000-4-2:2001 IEC 61000-4-3:1998; IEC 61000-4-4:1995 IEC 61000-4-5:1995 IEC 61000-4-6:1997 IEC 61000-4-8:2001EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper SURGE PROTECTION (EN 61000-6-1:2001 specification requirements).
