Vixen Air 1/2' NPT Air Ride Suspension High Flow Electric Air Valve (Solenoid) 210 PSI (2-Pack) with One 1/2' Flow/Dump Control Valve VXF2012M-2
- 12V HEAVY DUTY SOLENOID (2-PACK) - A heavy duty normally closed air valve that will allow the air flow trough it when it becomes electrically energized. The unique design provides high pressure control at minimal power consumption
- 210 PSI MAXIMUM AIR PRESSURE - Ideal for any suspension system or high pressure train horn installed on vehicle with a 12 volt power source. This highly responsive valve will open and close in seconds when actuated, meaning it will open or close the air flow almost instantaneously
- LARGE AIR PORTS - Large ½" NPT inlet and outlet female air ports for a fast response. Make sure to use ½" air lines for maximum performance. Main structure is constructed of industrial grade brass offering maximum resistance against corrosion
- ONE FLOW CONTROL VALVE INCLUDED - Adjusting the knob regulates how fast your vehicle drops when the solenoid is in "dump state". It can also helps reducing the noise the air makes while is being released trough the solenoid
- EASY TO INSTALL - Valve is already pre-wired for a faster installation. A metal mounting bracket is included to attach the valve to your vehicle. Clear instructions are provided. A 1-year warranty is provided
Quantity
-
Detail
VXF2012M-2

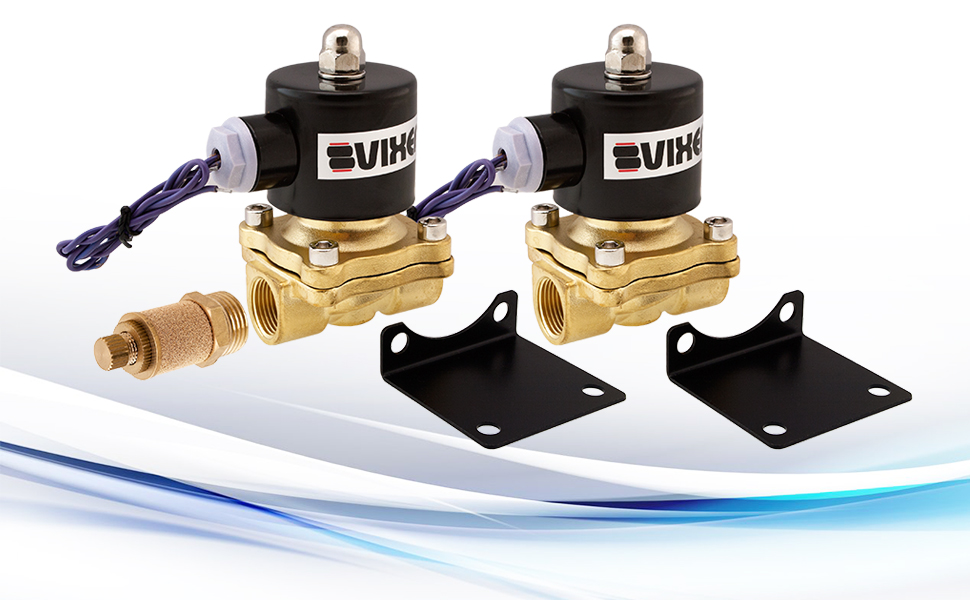

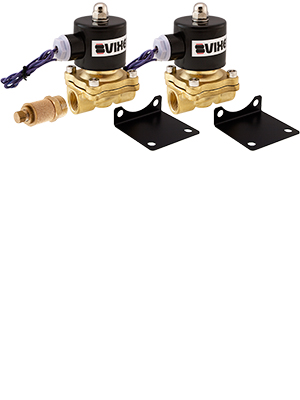

Two 1/2" NPT High Flow Normally Closed Electric Air Valves (Solenoid) 12V / 210 PSI with One Flow Control Valve
About Vixen Air
Vixen Air offers the most comprehensive line of air tanks, compressors, valves, air bags and pneumatic accessories specially designed for air suspension. Our goal is to consistently deliver performance, reliability and value to our customers.
This powerful, high flow 1/2" NPT air valves delivers unparalleled performance for 12V vehicles. The unique design provides high pressure control at minimal power consumption. Valves supports pressures of up to 210 PSI and are constructed with high quality brass to ensure continuous use through extreme conditions. The flow control valve regulates how fast your vehicle drops when the solenoid is in a dump state. It can also help to reduce the noise the air makes when released from the solenoid.
- Power Source: 12V
- 1/2" NPT High Air Flow Female Inlet and Outlet Ports
- Max Air Pressure: 210 PSI
- Brass Construction
- Normally Closed
- Pre-wired and Mounting Bracket Included for easy Installation
- One 1/2" NPT Flow Control Valve Included
- Dimensions: 3-1/4" W x 4" H x 2-1/4" D
Highlights
1/2" NPT Air Ports
Large 1/2" NPT inlet and outlet female air ports for a fast response. Make sure to use 1/2" air lines for maximum performance.
Pre-wired Valves
Valves are already pre-wired for easier and faster installation.
Air Flow Direction
Air flow direction is clearly marked in the solenoid's body with an arrow providing a trouble-free installation.
One Flow Control Valve Included
Adjusting this knob regulates how fast your vehicle drops when the solenoid is in "dump state". It can also helps reducing the noise the air makes while is being released trough the solenoid.
-
