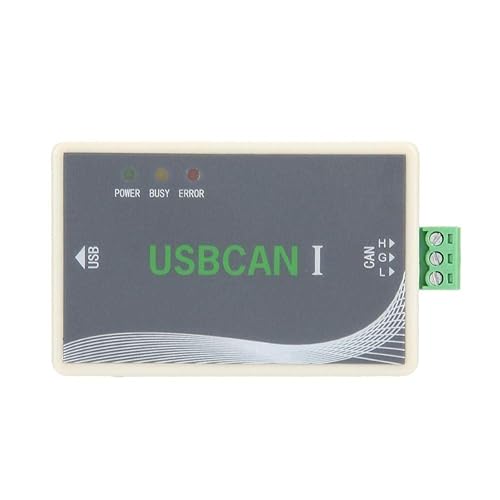

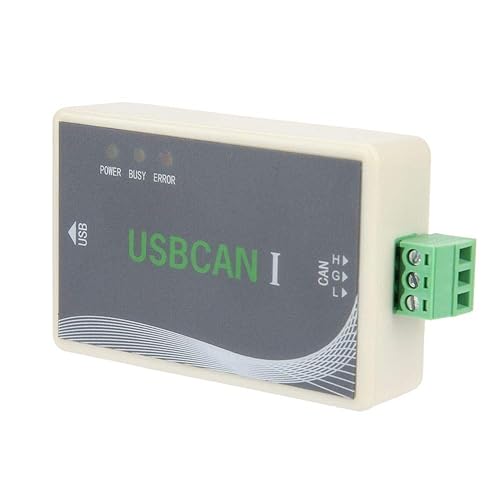

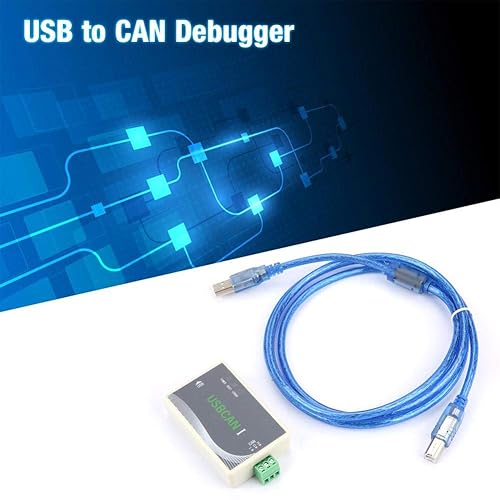

Walfront USB to CAN Analyzer USB CAN Debugger Compatible, PC Can Use It to Connect with a Standard CAN Network Via USB Bus
- PC can use this USBCAN debugger to connect with a standard CAN network via USB bus, so as to build CAN core control unit in fieldbus test lab, industrial control, intelligent building, automotive electronics to achieve data processing, data collection, d
- It can be used as a standard CAN node, which is a powerful tools integrated with CAN bus product development, CAN bus device testing, data analysis.
- Small size, easy installation, ideal choice for portable system applications.
- Compatible with ZLG software and support secondary development.
- Adopt independent DC-DC power supply module for optoelectronic isolation, so that the product has strong anti-interfere capability, greatly improve the reliability of the system used in harsh environment.
Quantity
-
Detail
Specifications:
USB and CAN bus protocol conversion;
USB interface supports USB2.0, compatible with USB1.1;
Support CAN2.0A and CAN2.0B protocol, support standard frame and extended frame;
Support two-way transmission, CAN transmission, CAN reception;
Support data frame, remote frame format;
CAN controller baud rate between 10Kbps-1Mbps optional, can be configured by software;
CAN transceiver uses magnetic isolation, with 2500V isolation voltage;
CAN controller has 3 transmit buffer and 8 hardware FIFO receive buffer, the receiving capacity is up to 7000fps;
Directly powered by USB bus;
Isolation module insulation voltage: 1000Vrms;
Operating temperature: 0~70 ℃;
Shell size: 70*45*18mm / 2.75*1.77*0.71in
Weight: Approx. 108g / 3.8oz
Typical Application:

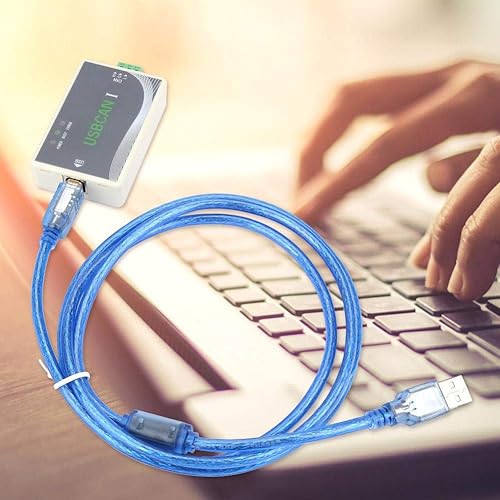

Achieve transmission and reception of the CAN bus network via USB interface of the PC or laptop;
Fast CAN network data acquisition, data analysis;
USB interface to CAN network interface;
CAN network data monitoring in industrial field.

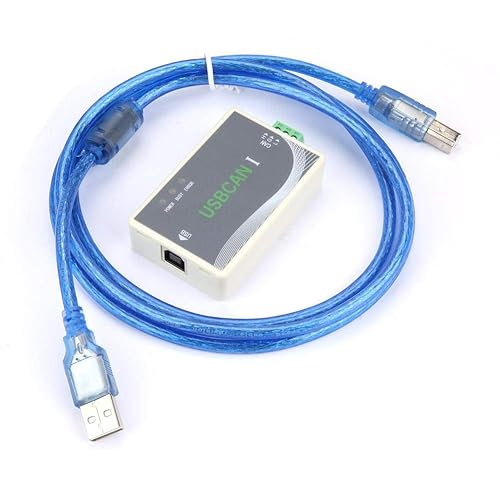

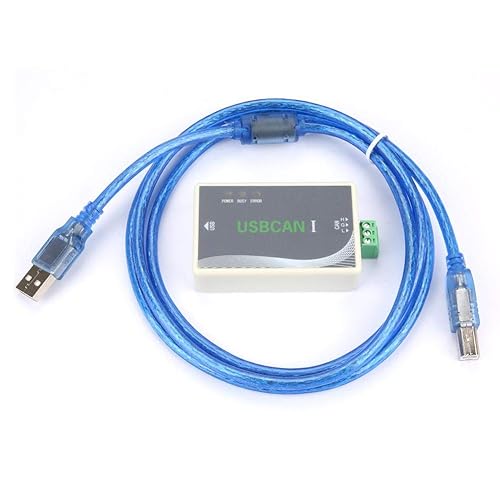

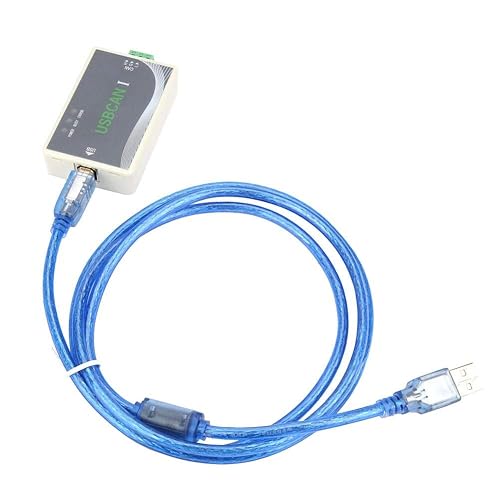

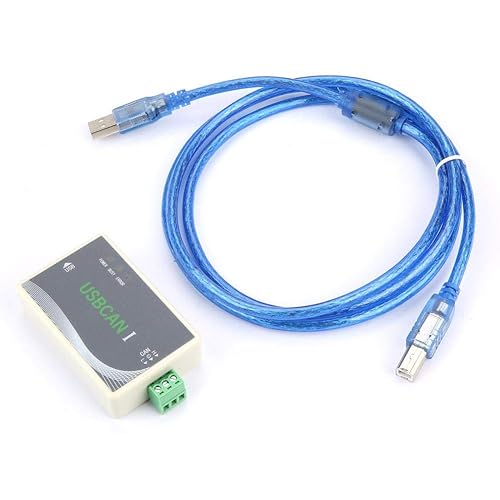

Package List:
1 x USBCAN Debugger
1 x USB Cable
-
