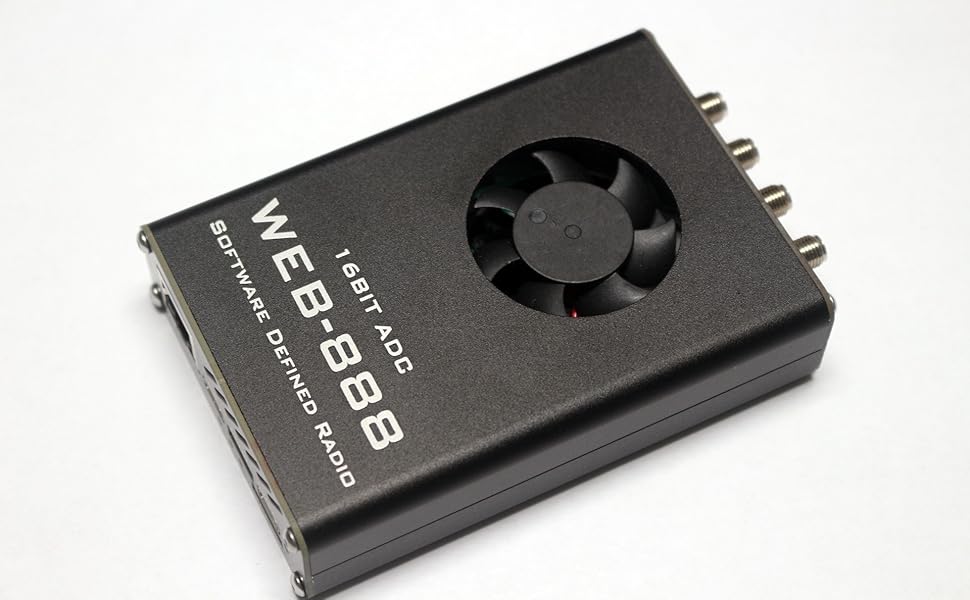

Web-888 16bit ADC 62M Bandwidth DDC Circuit Board - Professional-Grade Programmable Development Board for Electronics & Engineering Projects
Web-888 16bit ADC 62M Bandwidth DDC Circuit Board - Professional-Grade Programmable Development Board for Electronics & Engineering Projects
Web SDR
16bit ADC
62M bandwidth DDC
Quantity
ADD TO CART
BUY IT NOW
Unavailable
Unavailable
Detail
Hardware Specification
Dimenre SDR
16-bit ADC DDC architecture SDR

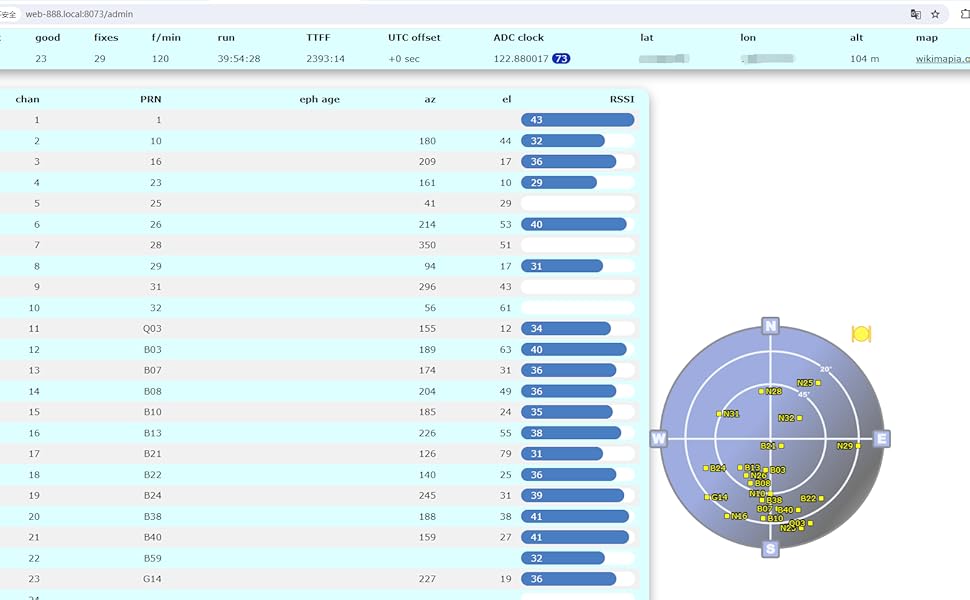

Built-in all-constellation GPS module
Dual antenna inputs
Gigabit Ethernet
Reference clock input/output
24.576MHz, 0.5 ppm TCXO
8 expandable IOs for antenna switching
HF:1K-61.44M,VHF:115M-145M
Software Specification
Alpine Linux 3.20 with Linux 6.6 Kernel

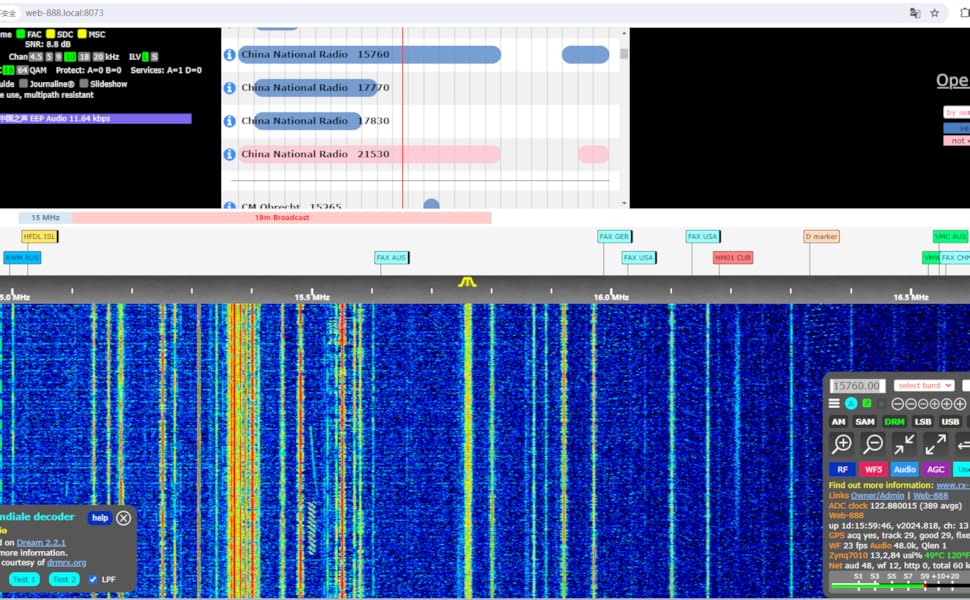

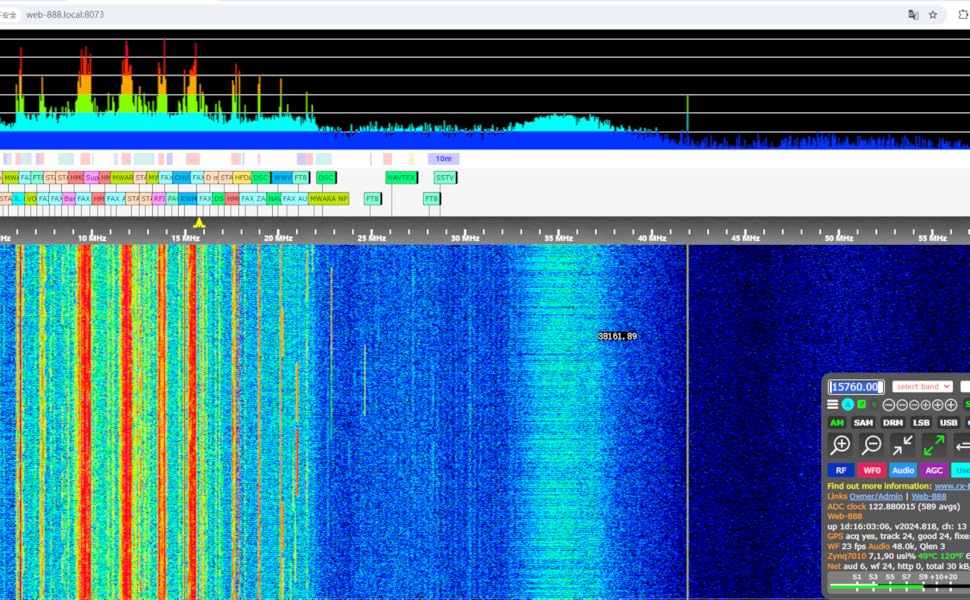

WebRX-based browser SDR experience
KiwiSDR websocket protocol for applications
WSPR, FT8 skimmers, and other decoders
13 RX channels and 13 spectrum channels simultaneously online
Binary updates with alpha and stable channels
Read-only root partition to prevent SD card corruption
FPGA DMA controller for efficient data transfer without CPU involvement
