XR03CX-5N0C1 230V/50-60Hz Digital Thermostat Controller Auxiliary Relay Programmable-Commercial for Refrigerating Units
- It is microprocessor based controller suitable for applications on normal temperature refrigerating units. It provides two relay output:one for compressor and the other one for alarm signalling or as auxiliary output. It provides an NTC probe input and a digital input for alarm signalling, for switching the auxiliary output or for start defrost.The instrument is fully configurable through special parameters that can be easily programmed through the keyboard or the by HOTKEY.
- Suitable for appliances including:suitable for applications on normal temperature refrigerating units.230V/50-60Hz
- Defrost is performed through a simple stop of the compressor.Parameter id controls the interval between defrost cycles, while its length is controlled by parameter Md.
- SAFETY PRECAUTIONS Check the supply voltage is correct before connecting the instrument. Do not expose to water or moisture: use the controller only within the operating limits avoiding sudden temperature changes with high atmospheric humidity to prevent formation of condensation. Warning: disconnect all electrical connections before any kind of maintenance. Fit the probe where it is not accessible by the End User. The instrument must not be opened.
- In case of failure or faulty operation send the instrument back to the distributor or to Dixell S.r.l.(see address) with a detailed description of the fault. Consider the maximum current which can be applied to each relay (see Technical Data). Ensure that the wires for probes, loads and the power supply are separated and far enough from each other, without crossing or intertwining.
Quantity
-
Detail

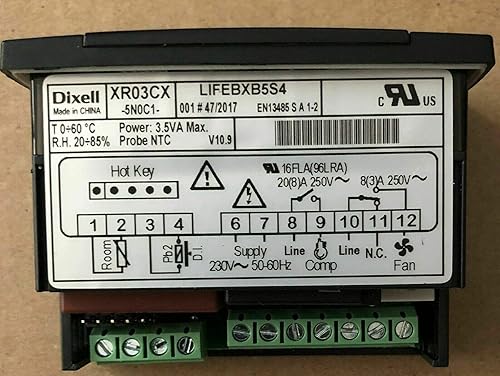

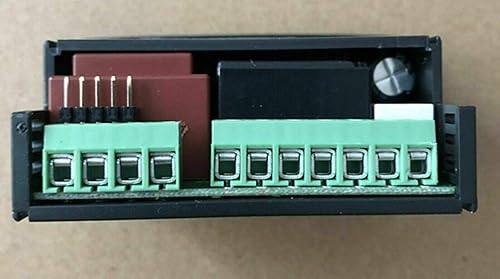

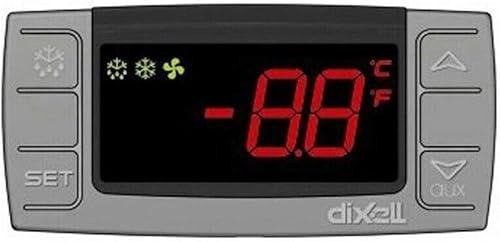

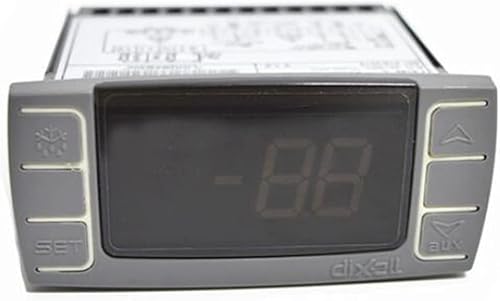

The XR03CX, in 32x74x50 mm short format, is microprocessor based controller suitable for applications on normal temperature refrigerating units. It provides two relay output: one for compressor and the other one for alarm signalling or as auxiliary output. It provides an NTC probe input and a digital input for alarm signalling, for switching the auxiliary output or for start defrost. The instrument is fully configurable through special parameters that can be easily programmed through the keyboard or the by HOTKEY. Suitable for appliances including suitable for applications on normal temperature refrigerating units Specification Producer: DIXELL Type: XR03CX-5N0C1 Mounting Measurements:71mm x 29mm Built-in Depth: 56mm Supply: 230V50-60Hz Voltage Type: AC Probe Type: NTC (probes not included) Number of Relay Outputs: 1 Relay Output 1: NO-20A(8) Input: 1NTC Kind of Protection: IP54 Version: Defrosting Function Time Control Measuring Range: -40 Degree C up to +110 Degree C Display: 2½ Digit Defrost Defrost is performed through a simple stop of the compressor. Parameter id controls the interval between defrost cycles, while its length is controlled by parameter Md. Package Include 1 X Dixell XR03CX Digital Thermostat Controller(Whole package with accessories)
-
