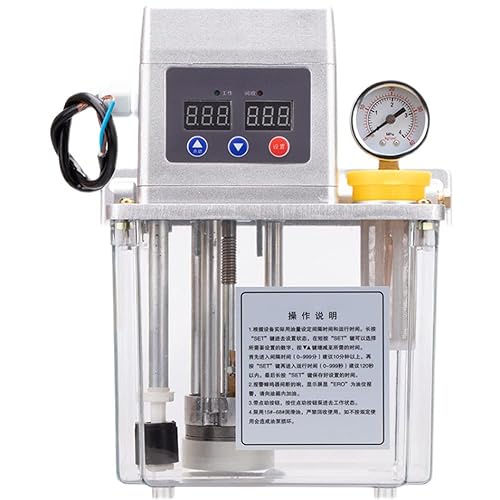

MXBAOHENG Automatic Lubricating Oil Pump 110V 1.5L Alloy Gear CNC Lubrication Pump Oiler Double Digital Display with 4 Mpa Pressure Gauge (150X)
MXBAOHENG Automatic Lubricating Oil Pump 110V 1.5L Alloy Gear CNC Lubrication Pump Oiler Double Digital Display with 4 Mpa Pressure Gauge (150X)

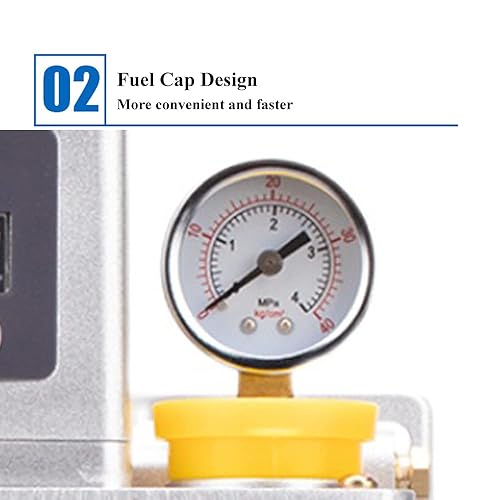

- 【With Pressure Gauge】: Automatic lubrication pump is with the high accuracy pressure gauge which has professional metering license.
- 【Low Oil Level Alarm】: When the oil quantity is insufficient, it will give an alarm in advance to remind to add lubricating oil in time.

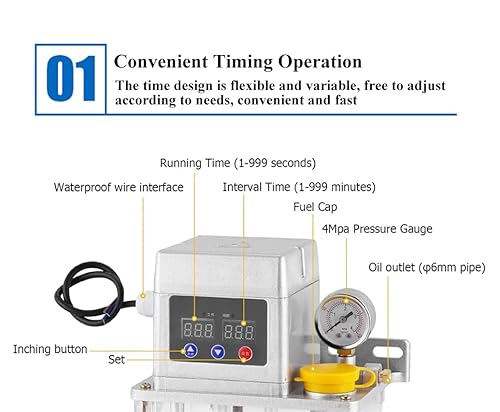

- 【Convenient Operation】: Automatic lubricant pump can set refueling flow and interval time freely as needed, running time 1-999 seconds, interval time 1-999 minutes.
- 【Long Work Life】: Electric oiler pump has low voice, high efficiency, high quality pump, thicker tank, corrosion resistance and impact resistance.
- 【Application】The lubrication pump is suitable for the lubrication of mechanical equipment in machine tools, textile machinery, metallurgy, printing, automobile and other industries.
Quantity
-
Detail
Parameters:
Model: 151X
(With pressure detection function)
Voltage: 110V
Power: 60W
Capacity: 1.5L
Current: 0.35A
Rated Pressure: 20kg
Volume Rate: ≥75%
Exhaled Volume: 200ml/min
Viscosity of Oil Used: 15-68c.st
Oil outlet port: φ6mm
Fully automatic control oil pump, can be adjusted according to the needs of mechanical equipment.
It has the characteristics of high efficiency, compact structure, pressure relief and use with volumetric oil separator, etc.
It is suitable for lubrication of gears, guide rails and chains of machine tools,
textile machines, elevators and woodworking machinery, and can be used with centralized lubrication accessories.
Instructions for use
1 Simple installation, just connect to the 110V power supply directly
2 The oil pump is equipped with an oil level alarm. When the oil level is insufficient, an alarm can be issued in advance to remind you to add lubricating oil in time
3 Adjustable range of oil pump setting time: working time 1-999 seconds, interval time 1-999 minutes
4 The standard outlet of the oil pump is M10 X 1 connected to φ6 oil pipe; If you need φ4 oil pipe, please inform in advance
If you have any questions, please feel free to contact us.
-
